Tower Server - 8 x Hot-Swap Bays - AMD EPYC

Model: T26B9AS2L

The T26B9AS2L is the high-end AMD EPYC version of our popular tower server. With 8 hot-swap bays, redundant power, seven full-height PCIe expansion slots, and a 5.25" bay for optical media, this server offers plenty of options for a flexible, dependable high-performance system.

Key Features
  • Front USB
  • Redundant Power
  • 5.25" Drive Bay
  • 26-Inch deep
Recommended Uses

8 - 64 Cores
AMD EPYC

8 - 512 GB

8 x 3.5 Hot-Swap

2 x 1GbE

7 x PCI-e

Case/Tower

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • Tower Industrial Grade Chassis

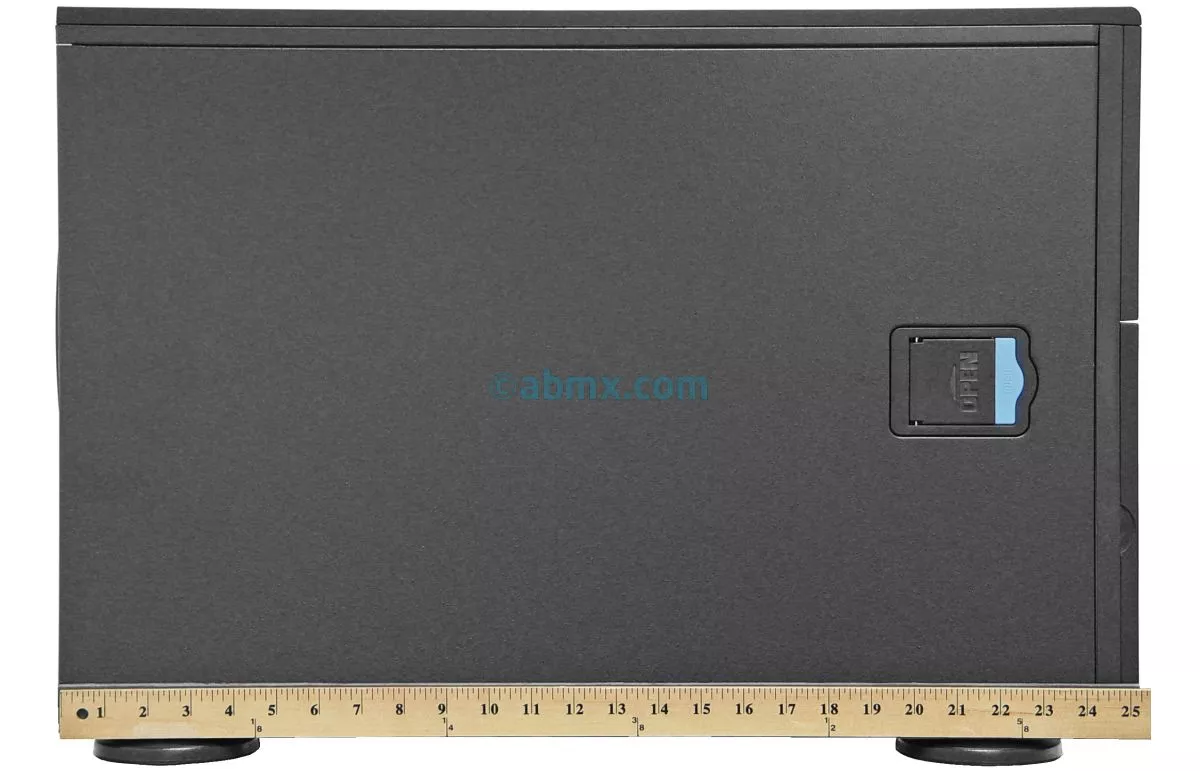

  • Dimensions: 25.5" (D) x 7" (W) x 17.8" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB ports
  • Front HDD Door Lock & Side Panel Intrusion Switch
Processor/Chipset
  • Single Socket SP3
  • Supports Single AMD EPYC™ 7003/7002-series Processor
  • Chipset: System on Chip
BIOS
  • AMI 256Mb SPI Flash EEPROM
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Memory
  • 8 x 288-pin DDR4 DIMM sockets
  • Supports up to 2TB
  • 3200MHz ECC Registered DDR4 DRAM
  • 8-channel memory bus
Storage / IPMI
  • 8 x SATA3 (6 Gbps) ports
  • 8 x SATA3 or 2 x NVMe via single SlimSAS x8 (SATA/NVMe Hybrid)
  • Chassis supports up to eight drives
  • IPMI 2.0 support (ASPEED AST2500 BMC)
  • 2 x M.2 NVMe (2280, 22110)
Drive Bays
  • HD1-8 Bay: Hot-swap SATA/ SSD Drive
  • Up to 176 Terabyte of storage can be supported
  • 3 x 5.25-inch Drive Bay

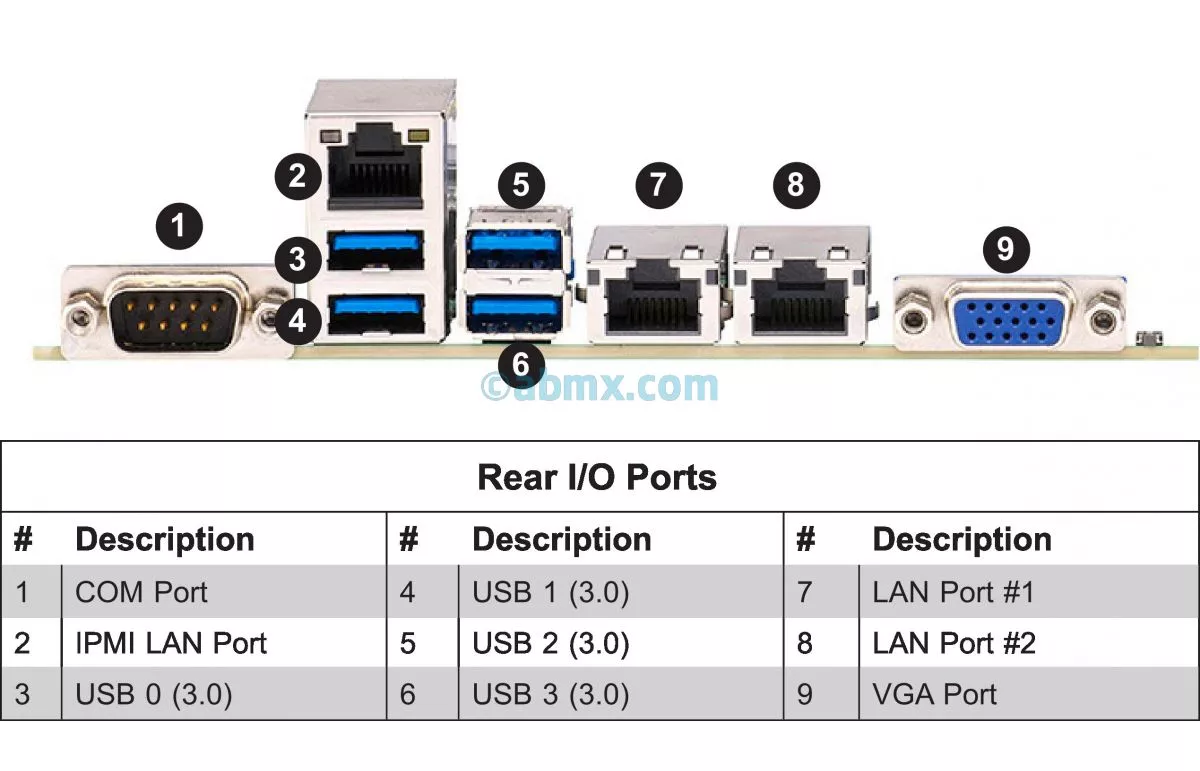

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 6 x USB 3.0 ports (4 x rear + 2 x via header)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 2 x SATA DOM power connectors
  • 1 x TPM 2.0 header
Video
  • ASPEED AST2500 BMC on-board

Network
  • Dual Gigabit Ethernet LAN Controller (Broadcom BCM5720)
  • 1 x Realtek RTL8211F PHY (dedicated IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 5 x PCI-e 4.0 (x16) slots
  • 2 x PCI-e 4.0 (x8) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Not provided for Tower version
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard H12SSL-i

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.

Motherboard H12SSL-CT

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
