3U Server - Dual Xeon Scalable - 8 x Hot-Swap Bays

Model: 326R1X3DE-V

The 326R1X3DE-V features Intel's latest 4th/5th Gen Xeon Scalable processors for up to 128 powerful cores, and up to 4 terabytes of blazing fast DDR5 memory. With its 8 x 3.5" hot-swap bays, redundant power, and additional 5.25" bays for additional storage or devices, this high performance system is capable of handling any heavy workload.

Key Features
  • Redundant Power
  • 5.25" Drive Bay
  • 26-Inch deep
  • Dual Xeon Scalable
  • IPMI / iKVM
  • TPM 2.0 (optional)
Recommended Uses

8 - 32 Cores
Dual Xeon Scalable

32 - 1024 GB

8 x 3.5 Hot-Swap

2 x 1GbE

6 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 3U Rackmountable Enclosure
  • 1 Rack Unit Height (5.2")
  • Dimensions: 25.5" (D) x 19" (W) x 5.2" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Dual Socket LGA-4677 (Socket E)
  • Supports 4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 chipset
BIOS
  • AMI 32MB AMI UEFI
  • ACPI 6.4
  • SMBIOS 2.8/3.5
  • UEFI 2.8A
  • Plug and Play (PnP)
  • PCI FW 3.2
Memory
  • 16 x DDR5 DIMM sockets
  • Supports up to 4TB
  • DDR5 4800/4400/4000MHz ECC RDIMM (3DS)
Storage / IPMI
  • 2 x SATA 6Gb/s ports
  • 8 x SATA 6Gb/s via SlimSAS x8 Connector
  • Intel® C741 controller on-board
  • Chassis supports up to eight drives
  • IPMI 2.0 on-board (ASPEED AST2600 BMC)
  • 2 x M.2 NVMe 2280
Drive Bays
  • HD1-8 Bay: Hot-swap 3.5/2.5-inch Drive Bays
  • Up to 176 Terabyte of storage can be supported
  • 2 x 5.25-inch Drive Bays
  • Slim-line Optical Drive Bay

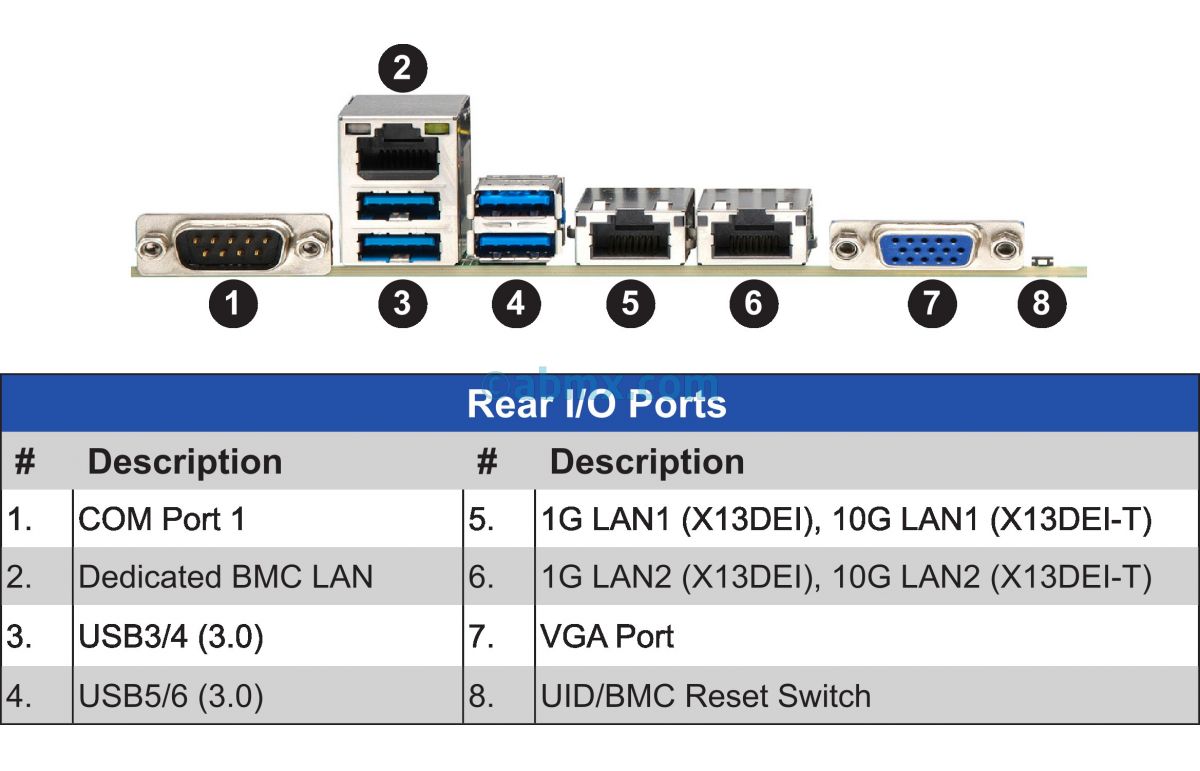

I/O ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x RJ45 Gigabit Ethernet LAN ports, OR
  • 2 x RJ45 10 Gigabit Ethernet LAN ports (OPTIONAL)
  • 6 x USB 3 ports (4 x rear, 2 x via header)
  • 3 x USB 2 ports (1 x Type A, 2 x via header)
  • 1 x VGA D-Sub Connector port
  • 2 x COM Ports (1 x header, 1 x rear)
  • 1 x TPM header
  • 3 x MCIO PCI-e 5.0 (x8) connector
Video
  • Integrated in Aspeed® AST2600

Network
  • Dual Gigabit LAN Ethernet Controller (Broadcom BCM5720), OR
  • Dual 10GBase-T LAN Ethernet Controller (Broadcom BCM57416) - OPTIONAL
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x PCI-e 5.0 (x8) slots
  • 4 x PCI-e 5.0 (x16) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • 2U rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13DEI

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.

Motherboard X13DEI-T

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
