2U Server - Xeon Scalable - 8 x Hot-Swap Bays

The 226LRX3S features Intel's latest 4th/5th Gen Xeon Scalable platform, with CPUs up to 64 powerful cores, and up to two terabytes of blazing fast DDR5 memory. This server comes equipped with 8 x 3.5" hot-swap bays for high-capacity storage, and redundant power. This high performance system is perfect for processing large amounts of data, virtualization and other heavy multitasking workloads.

Key Features
  • Redundant Power
  • 26-Inch deep
  • Dedicated IPMI / iKVM
  • TPM 2.0 (optional)
  • Dual 10GbE RJ45 (optional)
Related Tags
Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class
Microsoft®
Special Order

Tech Specs

Chassis
  • 2U Rackmountable Enclosure (LOW-PROFILE)
  • 1 Rack Unit Height (3.5")
  • Dimensions: 25.5" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-4677 (Socket E)
  • Supports 4th Gen Intel® Xeon® Scalable processors
  • Intel® C741 chipset
BIOS
  • AMI UEFI
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • Secure Boot Capable
Memory
  • 8 x DDR5 DIMM sockets
  • Supports up to 2TB
  • DDR5 4800/4400/4000MHz ECC RDIMM (3DS)
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C741 controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to ten drives
  • 2 x M.2 NVMe 2280/22110
Drive Bays
  • HD1-8 Bay: Hot-swap 3.5/2.5-inch Drive Bays
  • HD9-10 Bay: fixed OS 3.5/2.5-inch Drive Bays
  • Up to 220 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

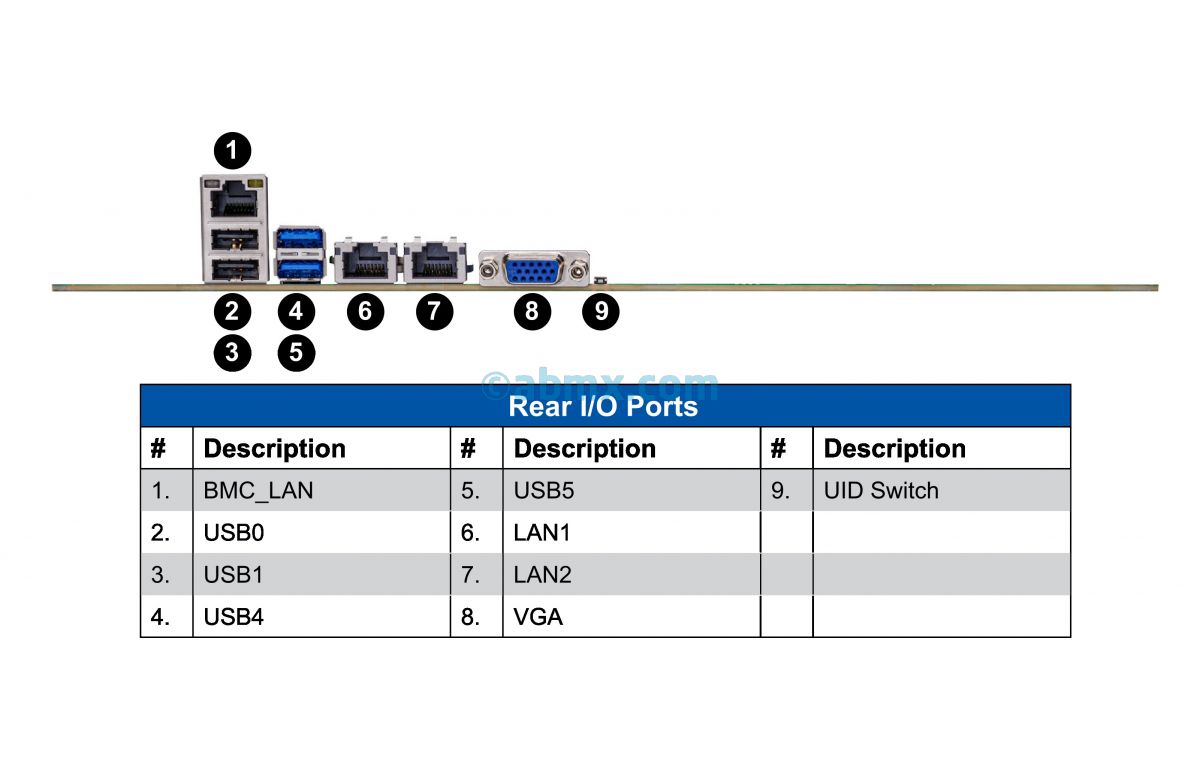

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x USB 2 ports (2 x rear)
  • 4 x USB 3.2 Gen.1 ports (2 x rear, 1 type x A, 1 x via header)
  • 1 x VGA D-Sub Connector port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
  • Trusted Platform Module (TPM) 2.0 (OPTIONAL)
Video
  • Aspeed AST2600 BMC Graphics on-board

Network
  • Dual Gigabit LAN Intel® i210 Ethernet Controller
  • OPTIONAL - Dual 10Gigabit LAN Intel® X550 Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 3 x PCI-e 5.0 x8 slot
  • 2 x PCI-e 5.0 x16 slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
