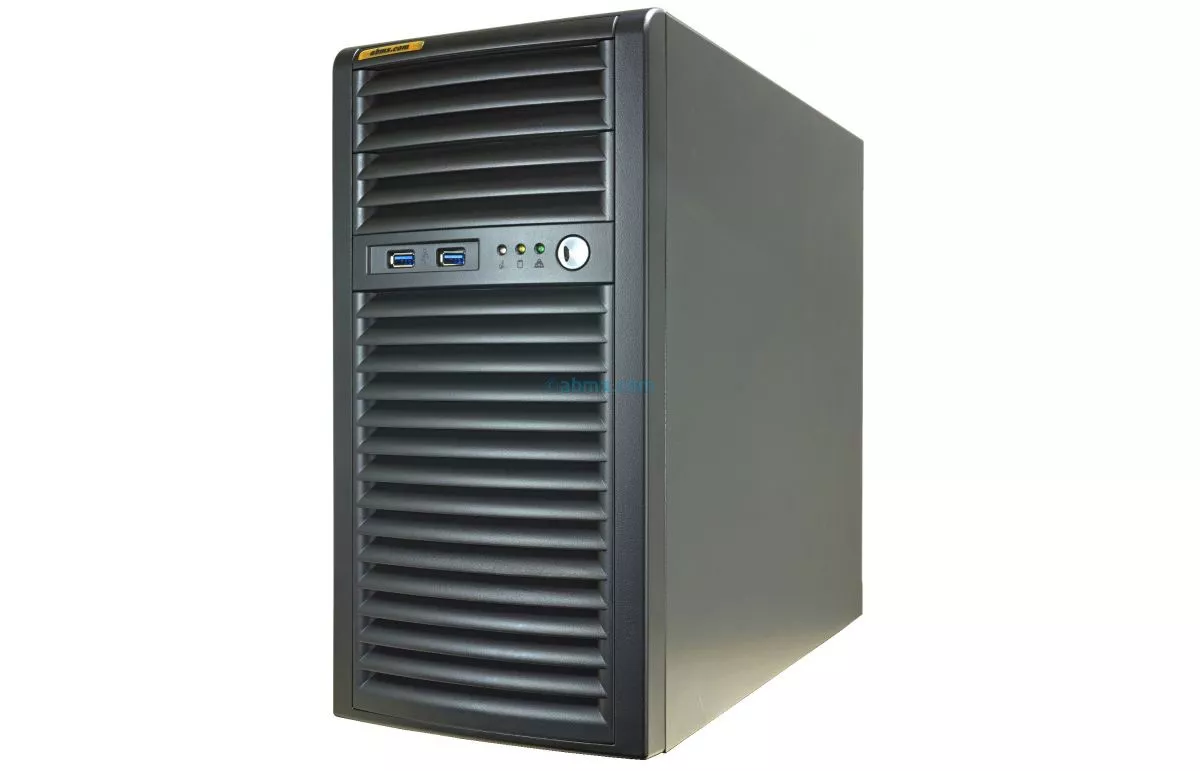

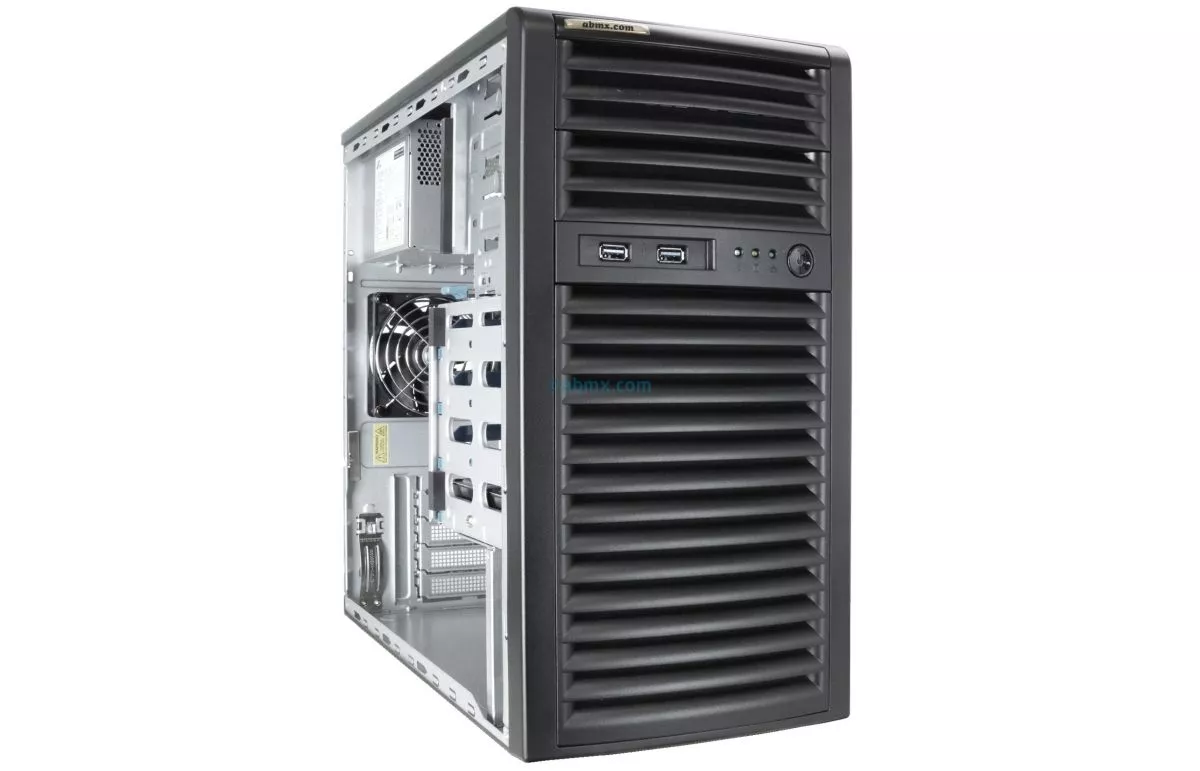

Tower Server - Xeon D (8-cores) - Dual 10GbE

Model: T174X18C

This small Xeon D server is one of the smallest tower servers available, featuring a unique 8-core/16-thread CPU. With it's quiet acoustics, 10Gb ethernet, and plenty of drive bays this system is perfect for any small office or home office. The chassis is smaller than most mini towers, and can be easily placed under a desk or on a table without getting in the way. Suitable for a file server, Microsoft Active Directory, or small database server.

Key Features
  • Quiet / Low-Noise
  • Front USB
  • 5.25" Drive Bay
Recommended Uses

8 - 0 Cores

8 - 256 GB

4 x 3.5 Fixed

1 x PCI-e

Case/Tower

Motherboard - duplicated

Memory

Storage

Western Digital® Black - SATA HDD
Western Digital® Enterprise-class - SATA HDD
Samsung 860 EVO - SATA SSD
Samsung 860 PRO - SATA SSD
Intel® D3-S4510 Enterprise - SATA SSD
Intel® D3-S4610 Enterprise - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

PCI Expansion Slot

OS Compatibility

Operating System

VMware
Microsoft®
Microsoft® (Special Order, Non-Cancelable)
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

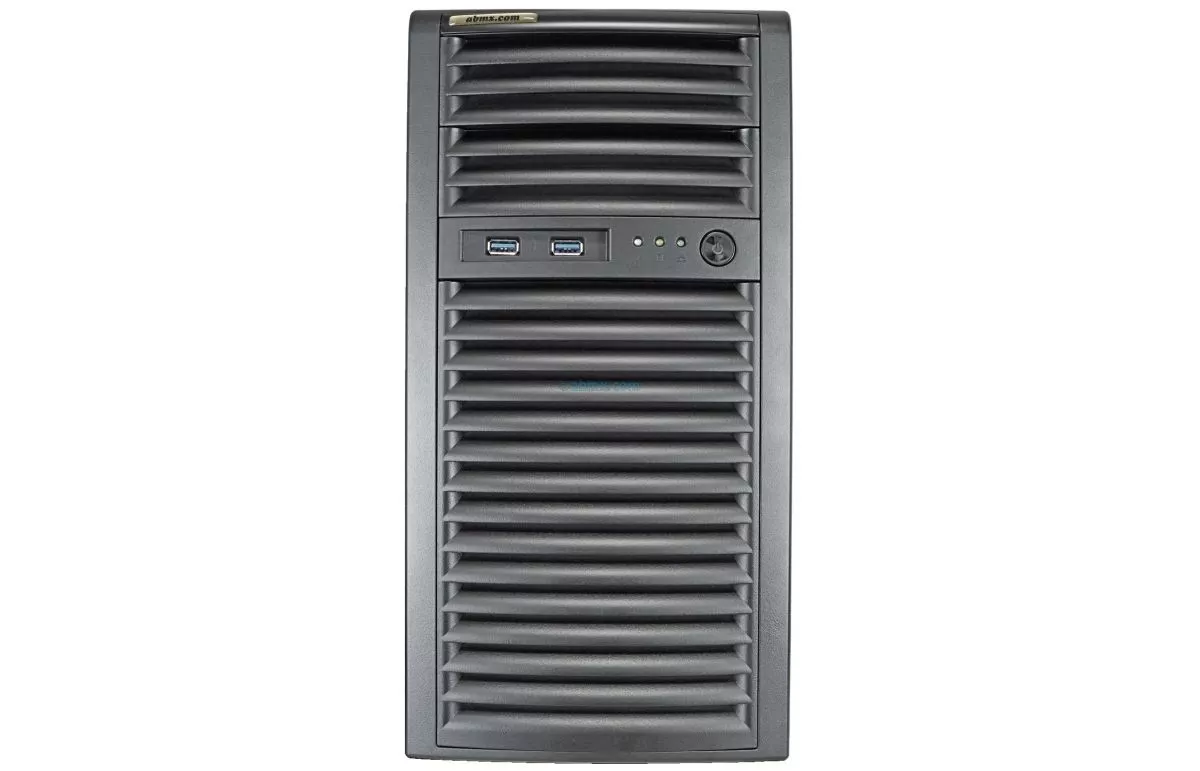

  • Mini-Tower Industrial Grade Chassis

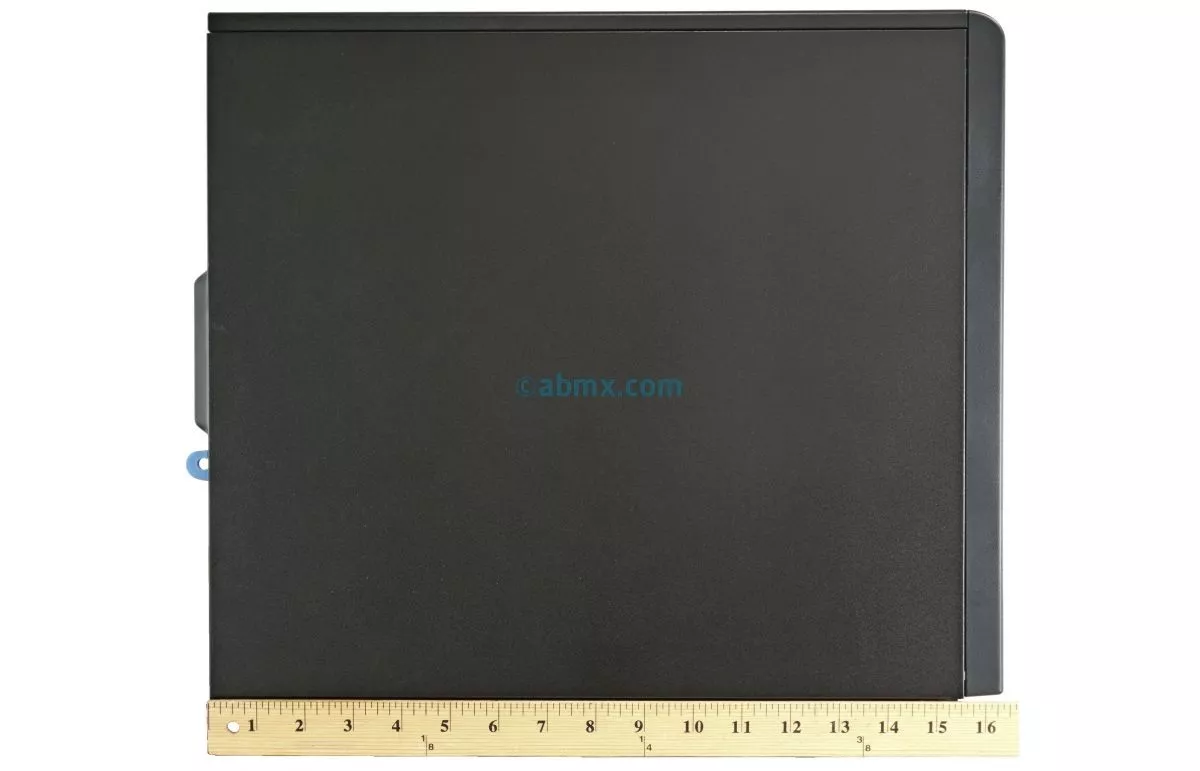

  • Dimensions: 16.75" (D) x 7.25" (W) x 14.25" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB 2.0 ports

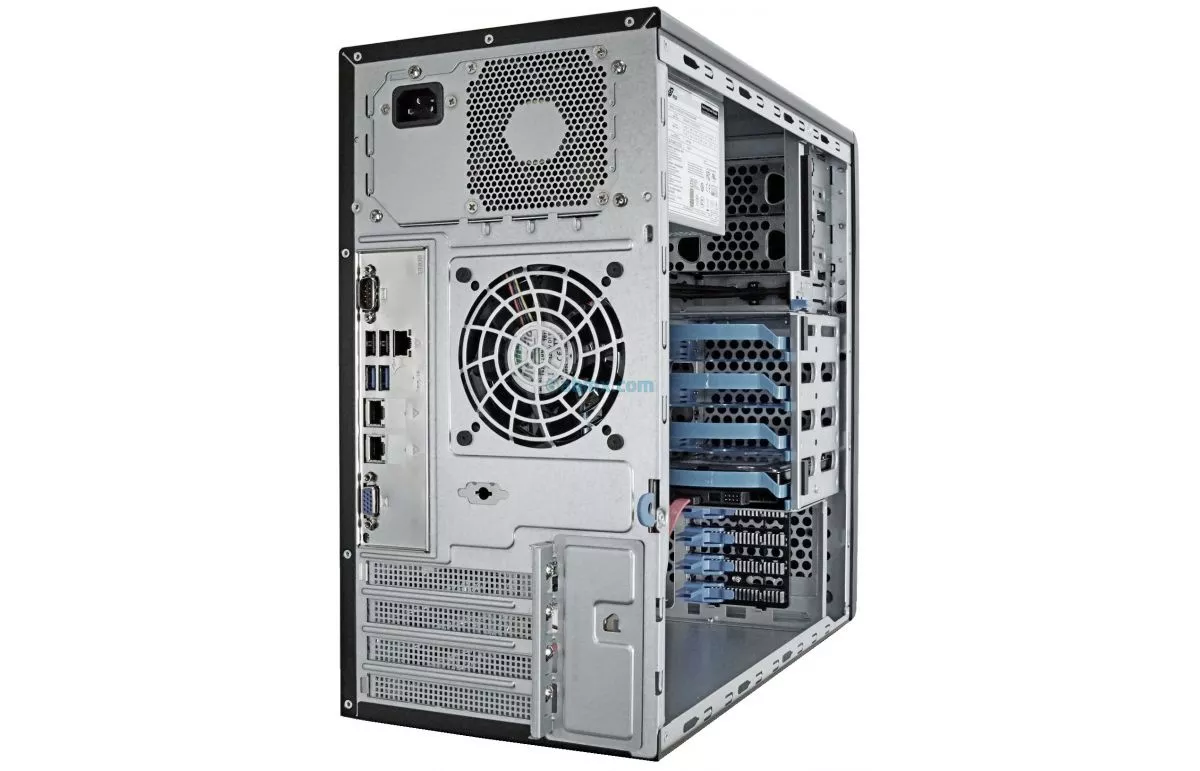

  • Rear 9cm PWM Cooling Fan with tool-less design
  • Optimized cooling technology at 25dB Whisper-Quiet Operation
Processor/Chipset
  • Single Socket FCBGA-2518
  • Intel® Xeon® Processor D-2141I
  • 2.20GHz /8 cores /16 threads /11MB cache
  • System on Chip
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.1
  • UEFI 2.6
  • PCI FW 3.2
Memory
  • 4 x DIMM slots
  • Supports up to 256GB ECC RDIMM, up to 512GB ECC LRDIMM
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
  • Operating speed up to 2133MHz
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
Storage/IPMI
  • 8 x SATA3 6Gbps ports
  • Chassis supports up to four hard drives
  • IPMI 2.0, ASPEED AST2500
Drive Bays
  • HD1-4 Bay: fixed SATA/ SSD Hard Drive Trays
  • 2 x 5.25-inch External Drive Bays
  • Up to 56 Terabyte of storage can be supported

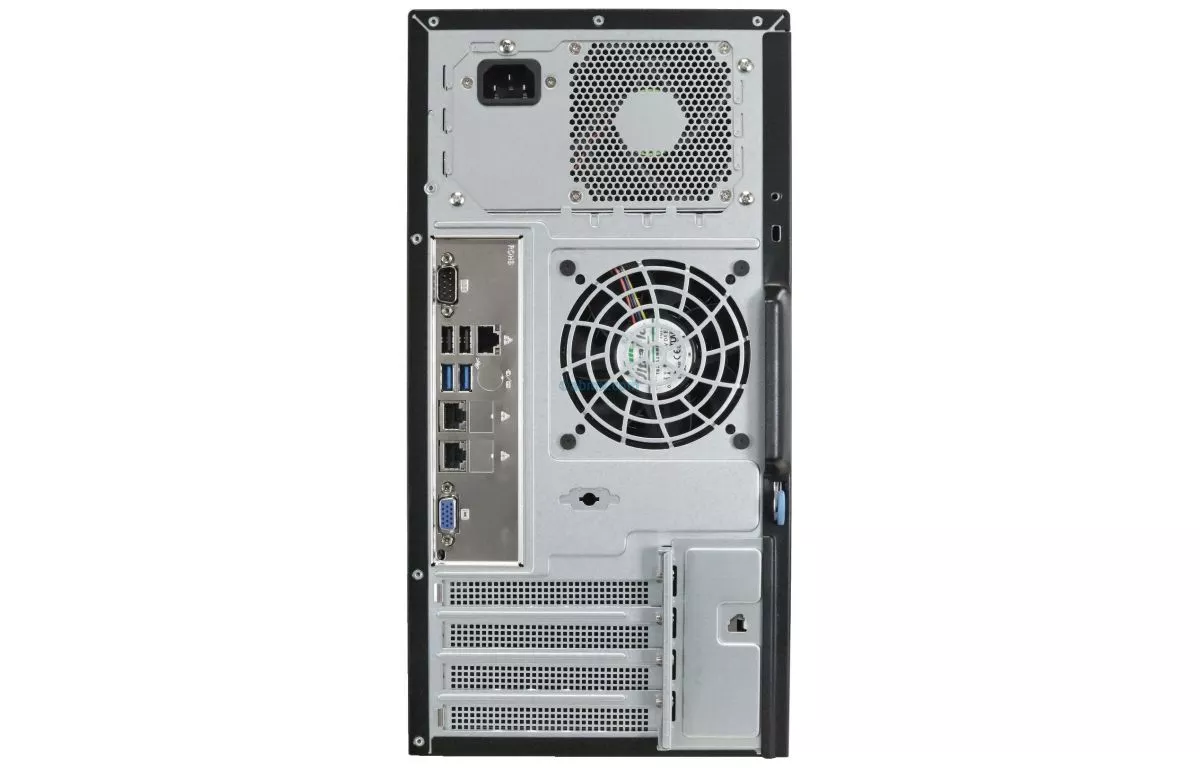

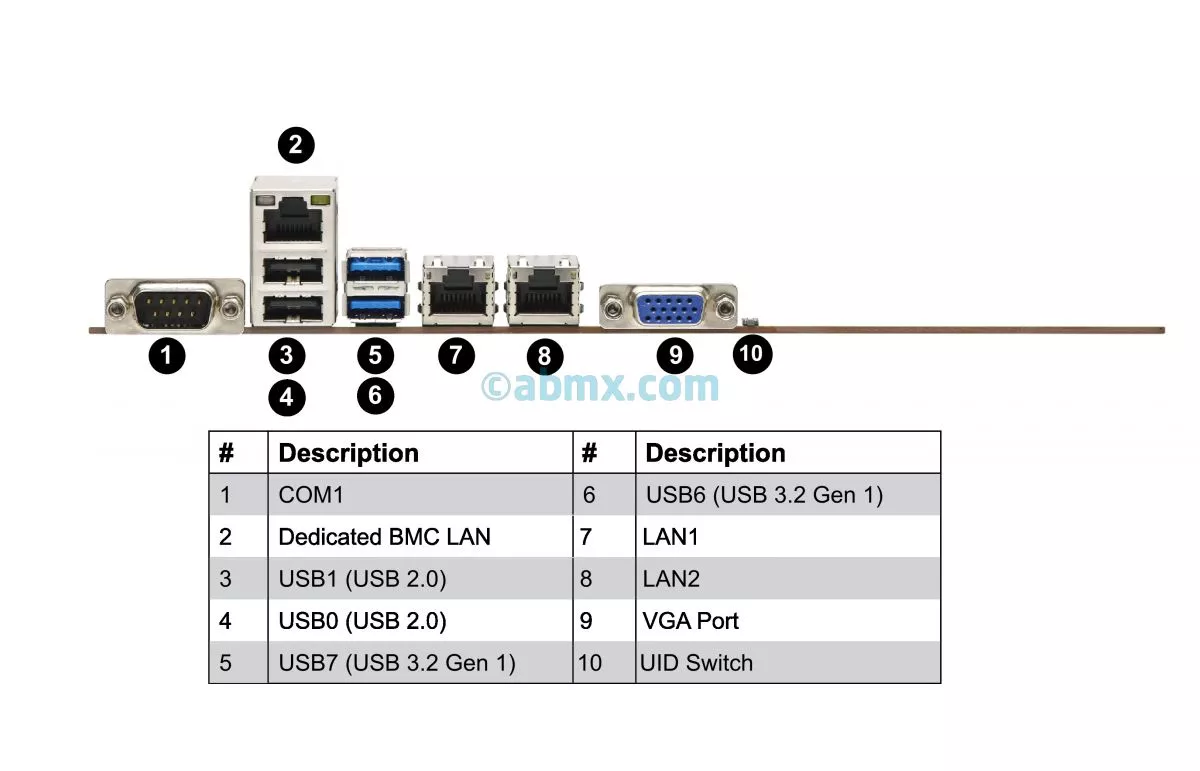

I/O ports
  • 2 x RJ45 10GBase-T ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x USB 2.0 ports (2 x via headers, Type A))
  • 2 x USB 3.0 ports (2 x rear)
  • 1 x VGA port
  • TPM Header
Video
  • On board Aspeed AST2500 BMC

Network
  • Dual 10GBase-T LAN via Intel® SoC
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 3.0 (x8) slot
  • 1 x PCI-e 3.0 (x4) NVMe Internal Port via OCuLink
Power Consumption/Acoustic noise emission
  • Between W to W with the standard configuration
  • Noise level (during normal operation): ~ dBA (ISO 7779 operator position 0.6 meter)
Power Supply
  • High-Efficiency Power Supply
  • Tested to comply with FCC class B Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • 5.25-bay Optical Drive (OPTIONAL)
Rack Support
  • Not supported
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available

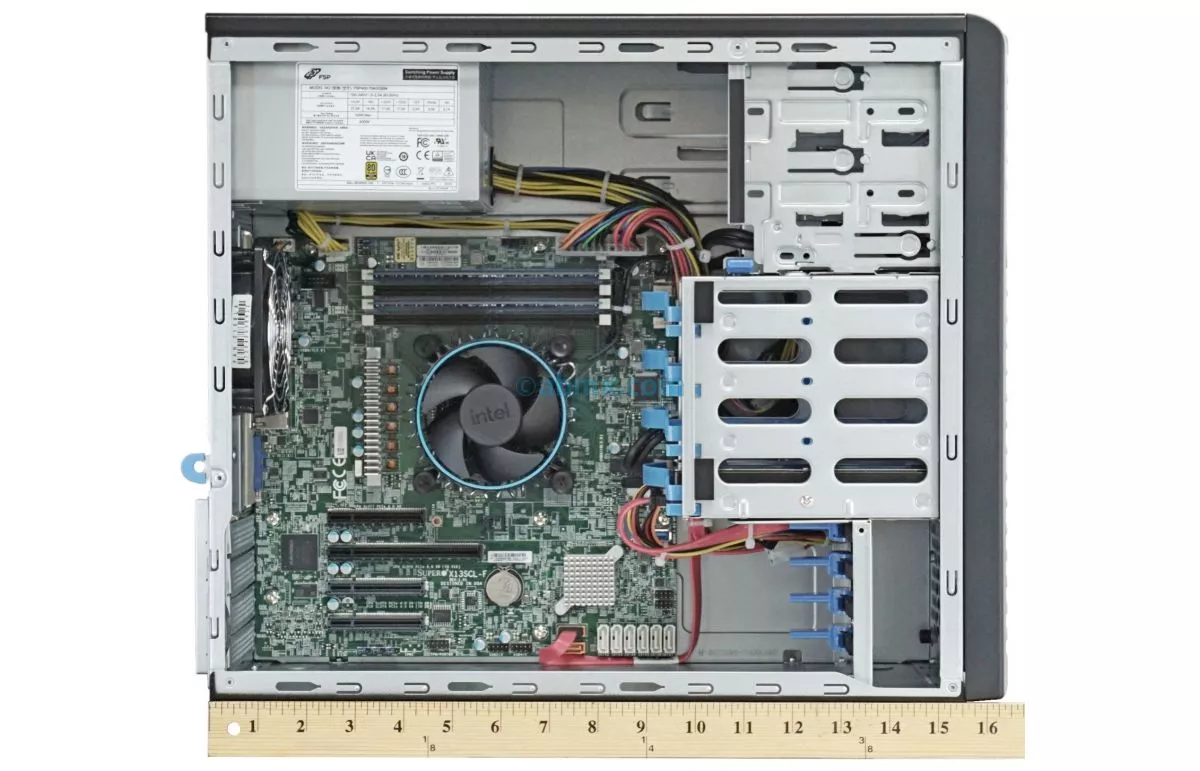

Motherboard X11SDV-8C+-TLN2F (w/FAN!)
VMWare ESXi 7.0
AsteriskNOW 10.13
CentOS 5.0
6.0
6.10
7.0
7.6
8.0
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
Debian 10.2
10.7
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 25
26
27
29
32
Fedora Workstation 25
26
27
29
32
33
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 5.0
6.0
6.4
6.8
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15
OpenSUSE Tumbleweed
OPNsense 19.1
Oracle Linux 7
7.6
PFSense 2.3
2.4
Proxmox VE 5.3-2
Red Hat Enterprise Linux 5.0
6.0
7.6
8.1
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
VyOS 1.2.0
Windows 10
7
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
