2U Server - Xeon Scalable - 4 x U.2 NVMe Hot-Swap Bays

Model: 218LPX2PLU

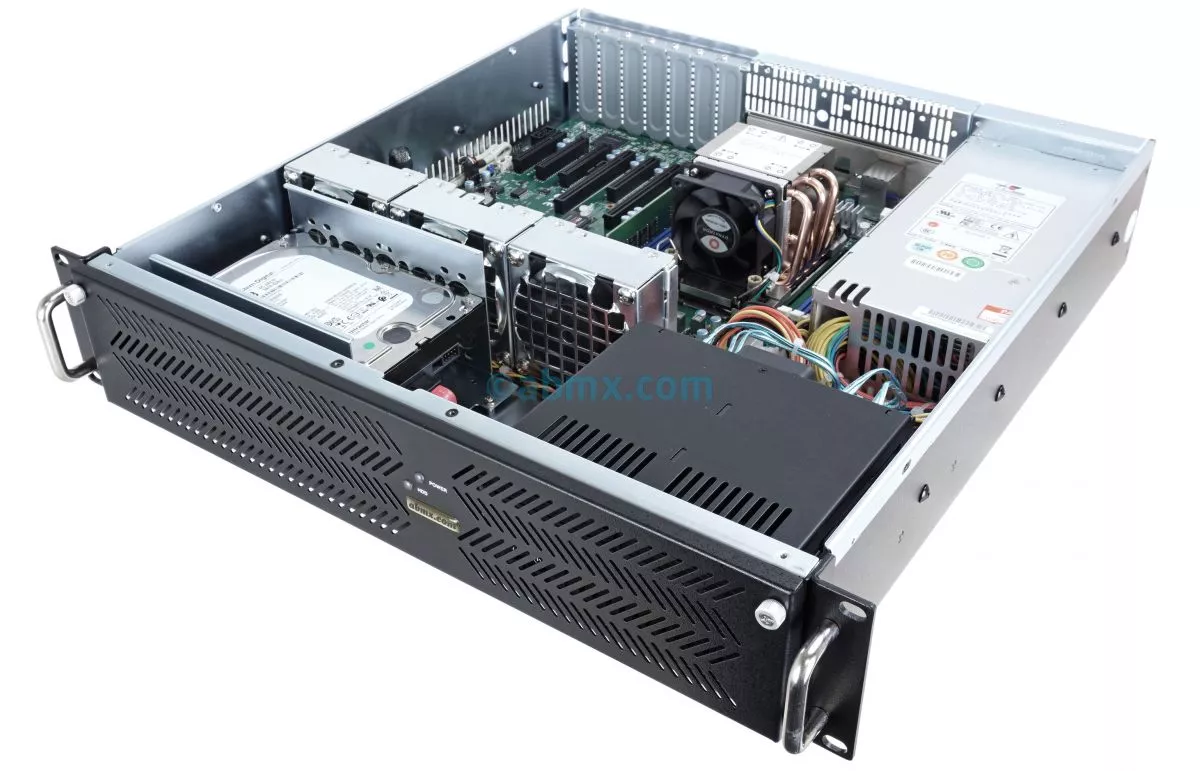

The 218LPX2PLU is a 18" 2U short-depth server designed specifically for fast U.2 NVMe SSD's storage. Utilizing fast PCIe 3.0 bandwidth and 4 x U.2 NVMe hot-swap bays, this system offers the fastest storage available with easy access to the drives.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • 18-Inch deep
Recommended Uses

8 - 38 Cores
Xeon Scalable

8 - 512 GB

4 x 2.5 Fixed

2 x 1GbE

7 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X

NVMe U.2 SSD

NVMe U.2 SSD

Exposed 5.25'' Drive Bay

RAID / Storage Controller

PCIe Expansion Slot

PCIe Expansion Slot

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Special Order

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

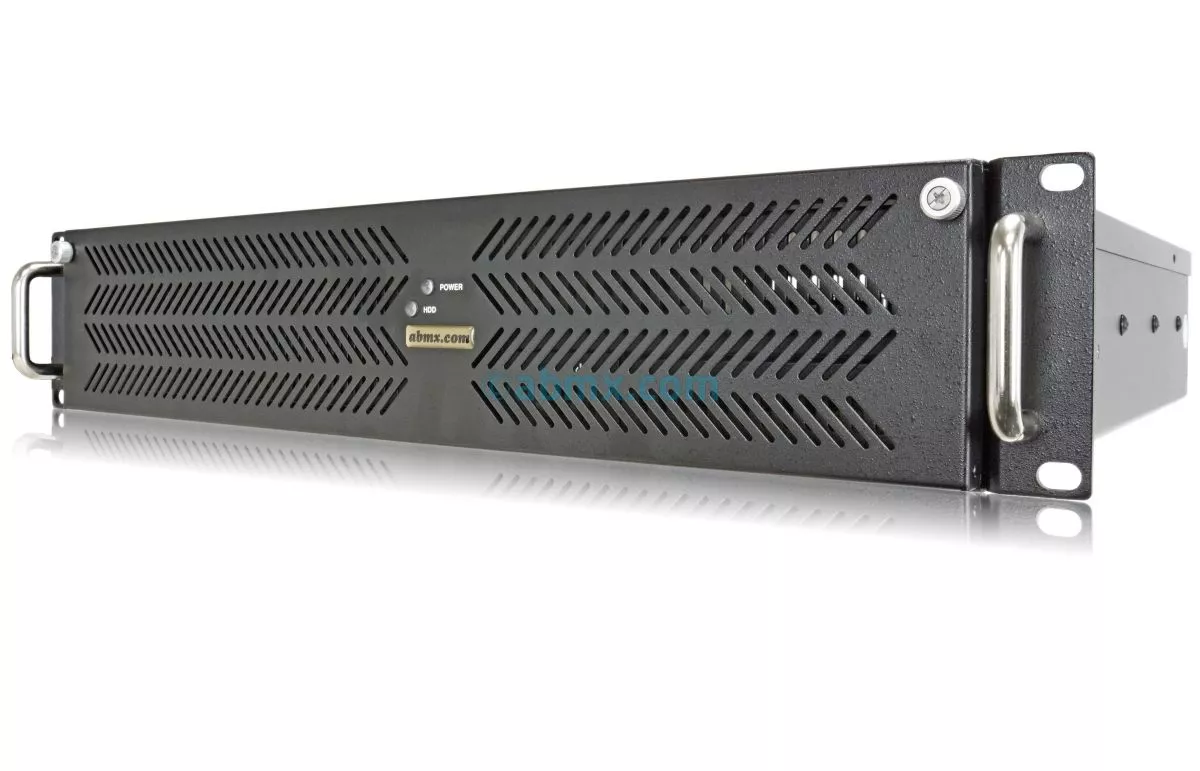

  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

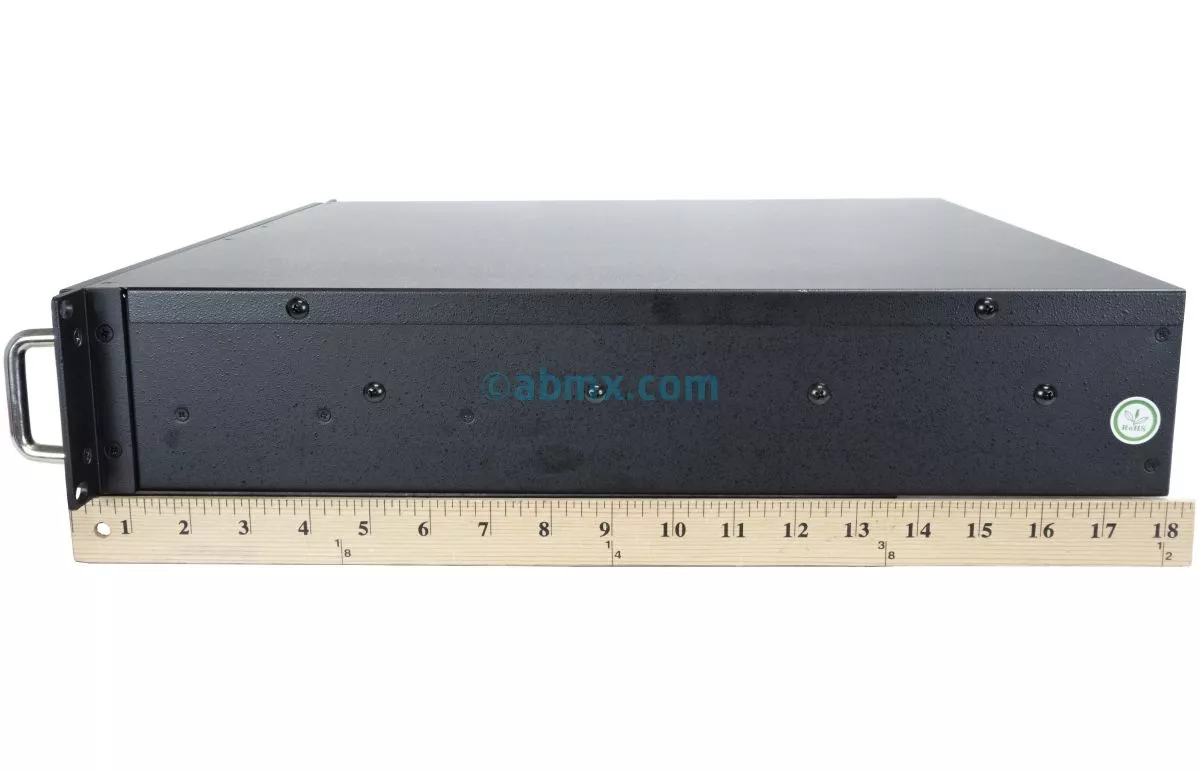

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm

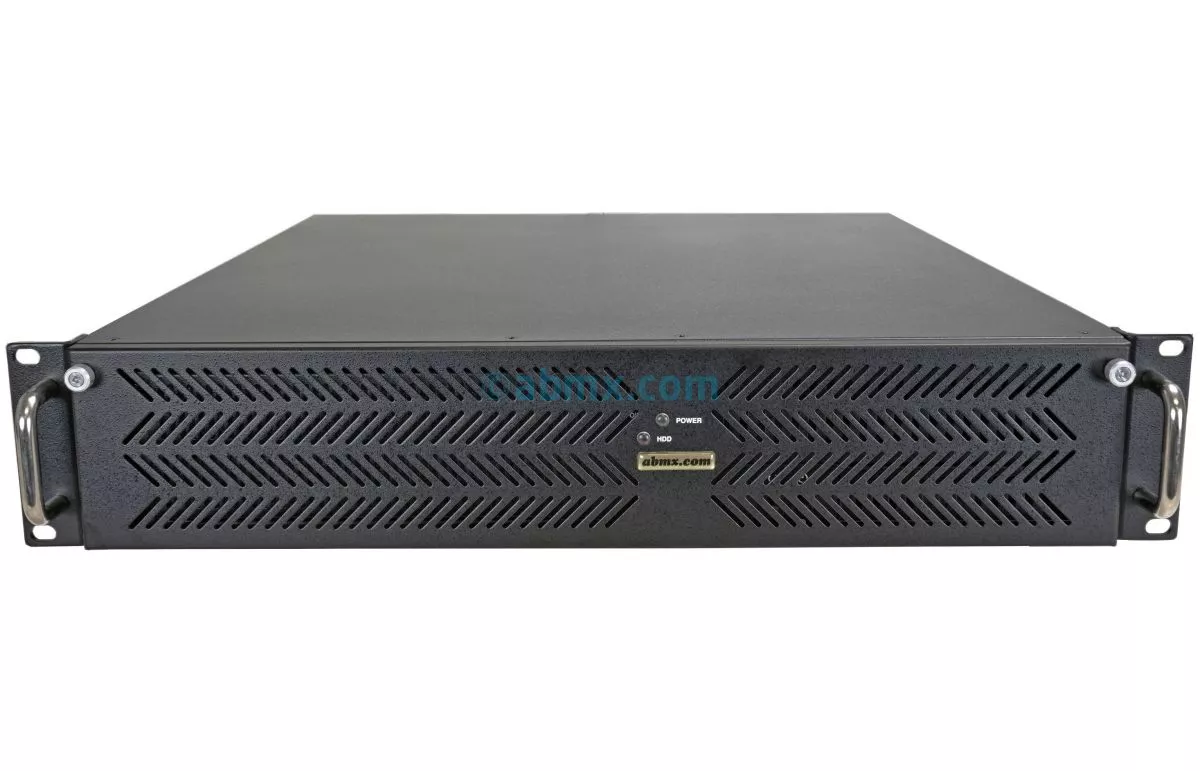

  • Front Door: Single Door with 2 Thumbscrews
  • Air Filter: Inside Front Panel (Washable)
  • Front: 2 x USB Ports
Processor/Chipset
  • Single Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933/2666MHz ECC 3DS, LRDIMM, RDIMM
Storage
  • 4 x NVMe U.2 PCIe 3.0 x4 slots
  • 1 x M.2 NVMe 2280/22110
  • IPMI 2.0 support (ASPEED AST2600 BMC)
Drive Bays

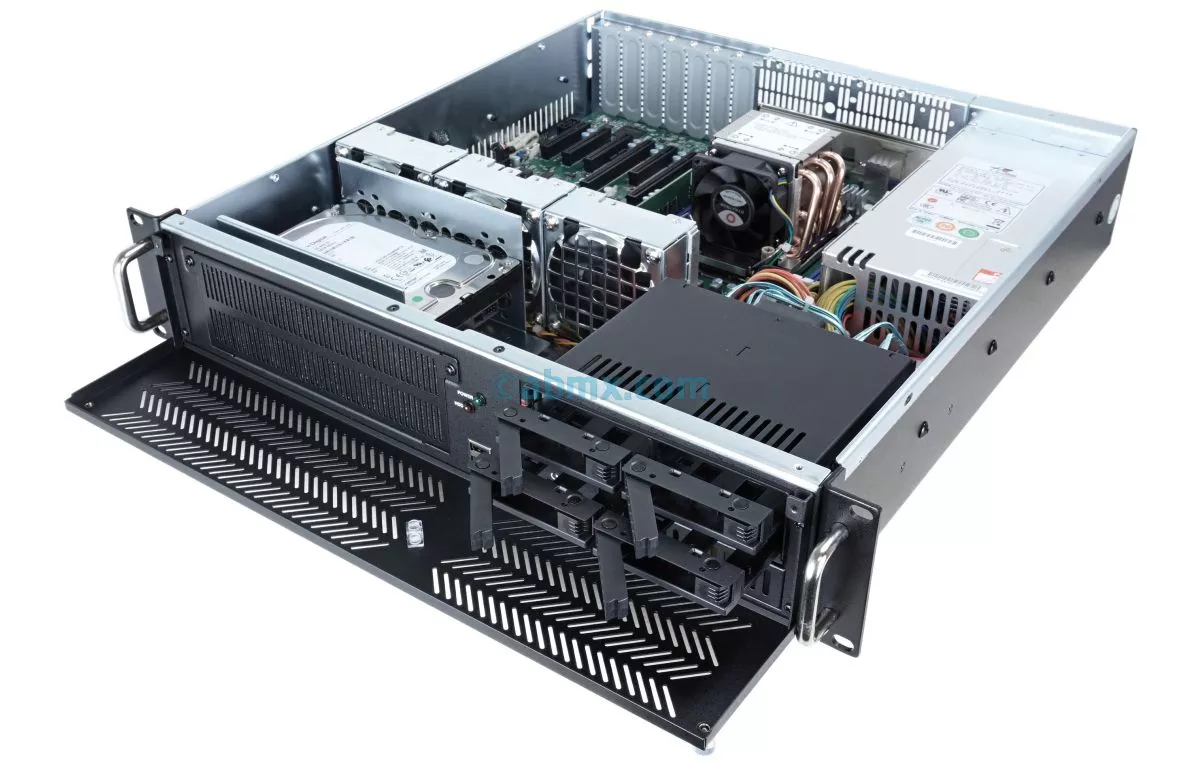

  • 4 x NVMe U.2 Hot-Swap Bays (thru Mobile Rack)
  • Up to 15TB of storage can be supported

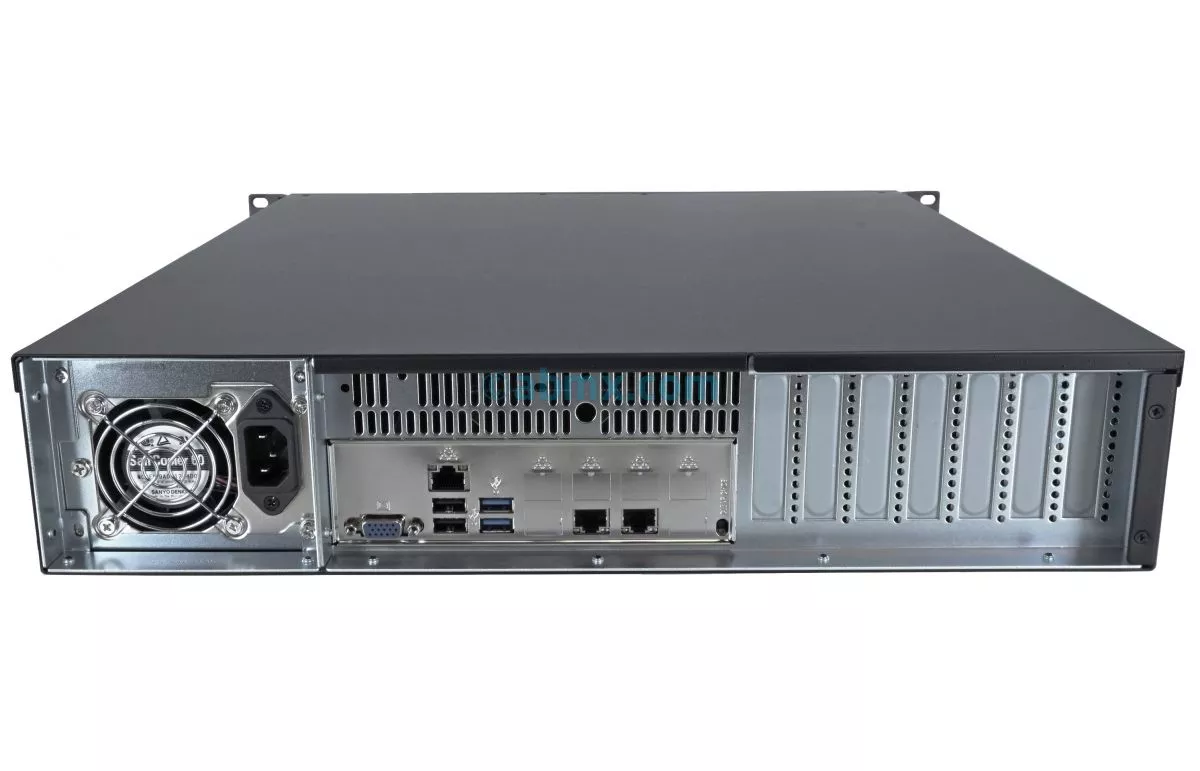

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-E 4.0 (x16) slot
  • 1 x PCI-E 4.0 (x8) in (x16) slot
  • 2 x PCI-E 4.0 (x8) slot
  • 3 x PCI-E 3.0 (x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • Redundant or 24V/48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Bay occupied by Mobile Rack (4 x 2.5-inch Hot-swap NVMe U.2 SSD Bays)
Rack Support
  • Rackmount rails kit (OPTIONAL)
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available

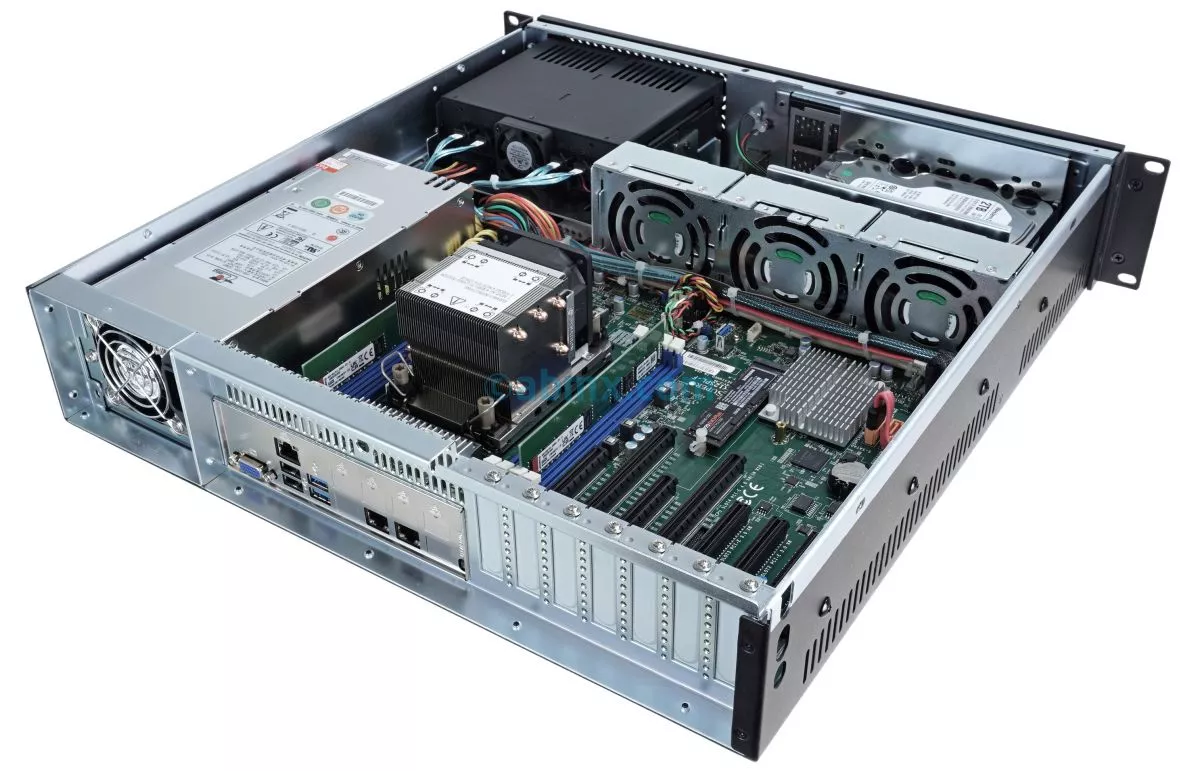

Motherboard X12SPL-F /SPC621D8

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
