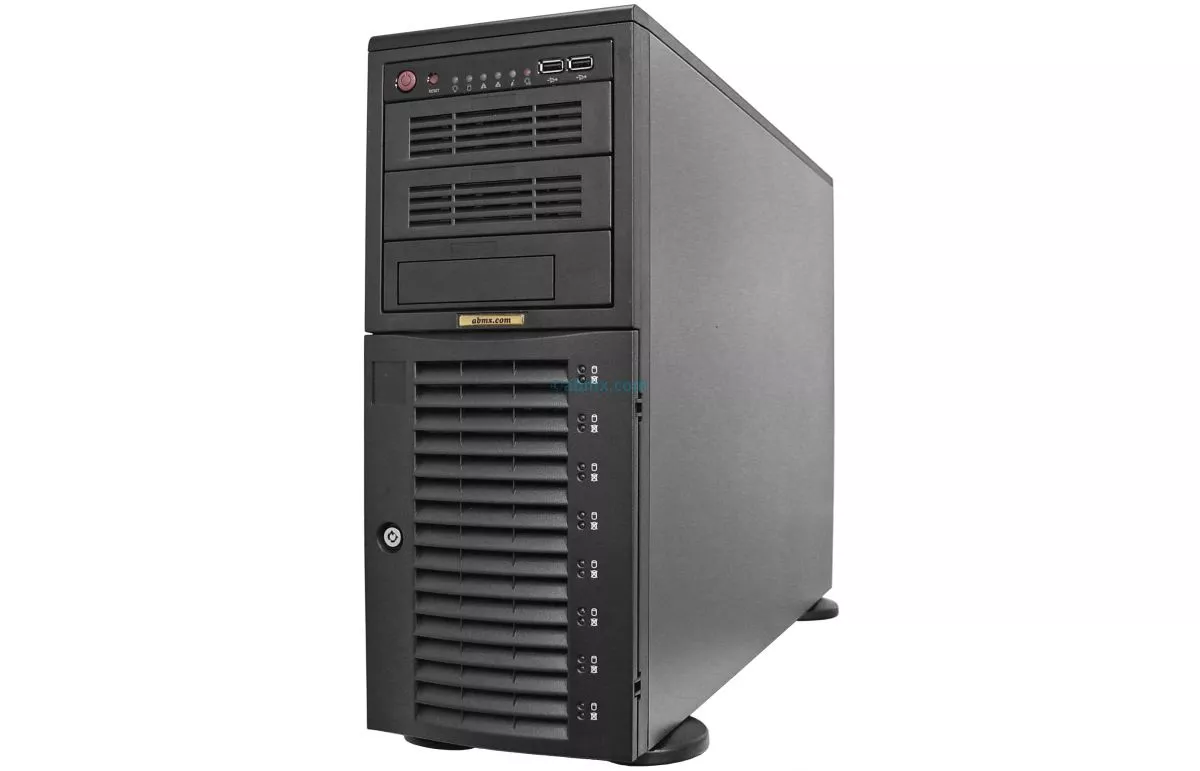

Tower Server - Xeon Scalable - 8 x Hot-Swap Bays

Model: T26B9X2PL

The T26B9X2PL is the high-end Intel Xeon Scalable version of our popular tower server. With 8 hot-swap bays, redundant power, 7 PCIe expansion slots, and a 5.25" bay for optical media, this server offers plenty of options for a flexible, dependable high-performance system.

Key Features
  • Front USB
  • Redundant Power
  • 5.25" Drive Bay
  • 26-Inch deep
Recommended Uses

8 - 38 Cores
Xeon Scalable

8 - 512 GB

8 x 3.5 Hot-Swap

2 x 1GbE

7 x PCI-e

Case/Tower

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

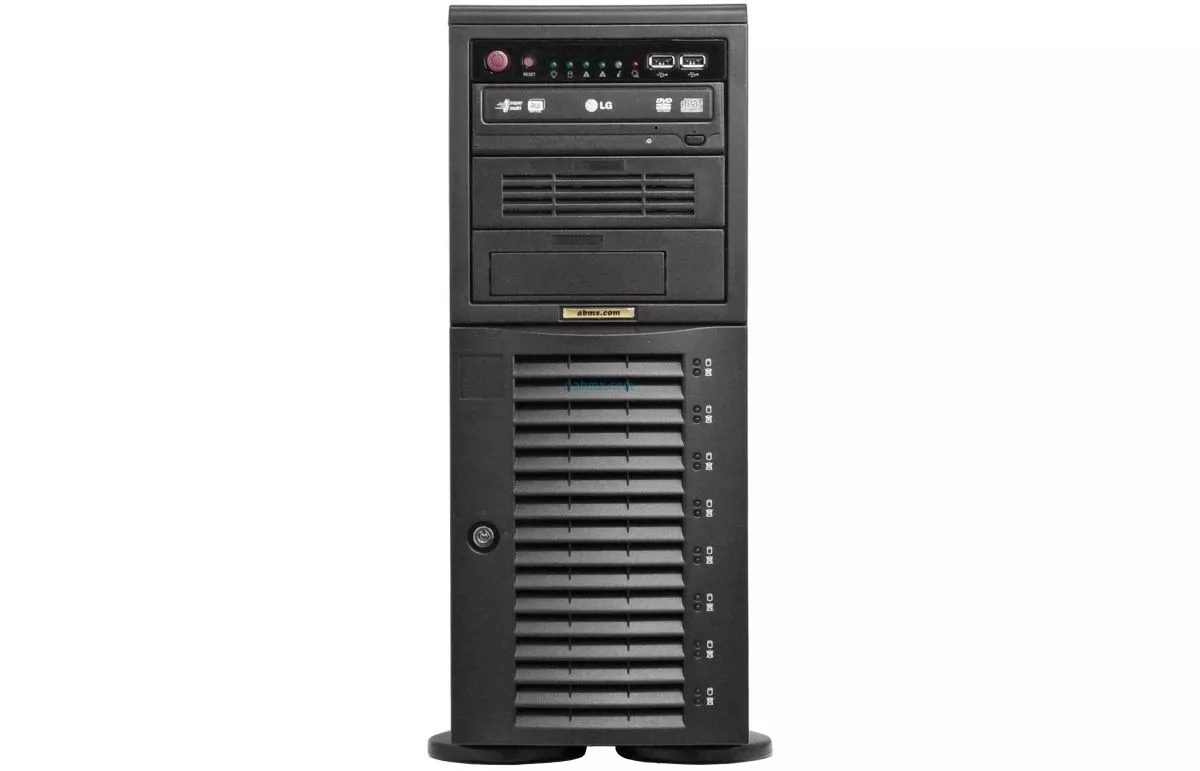

Chassis
  • Tower Industrial Grade Chassis

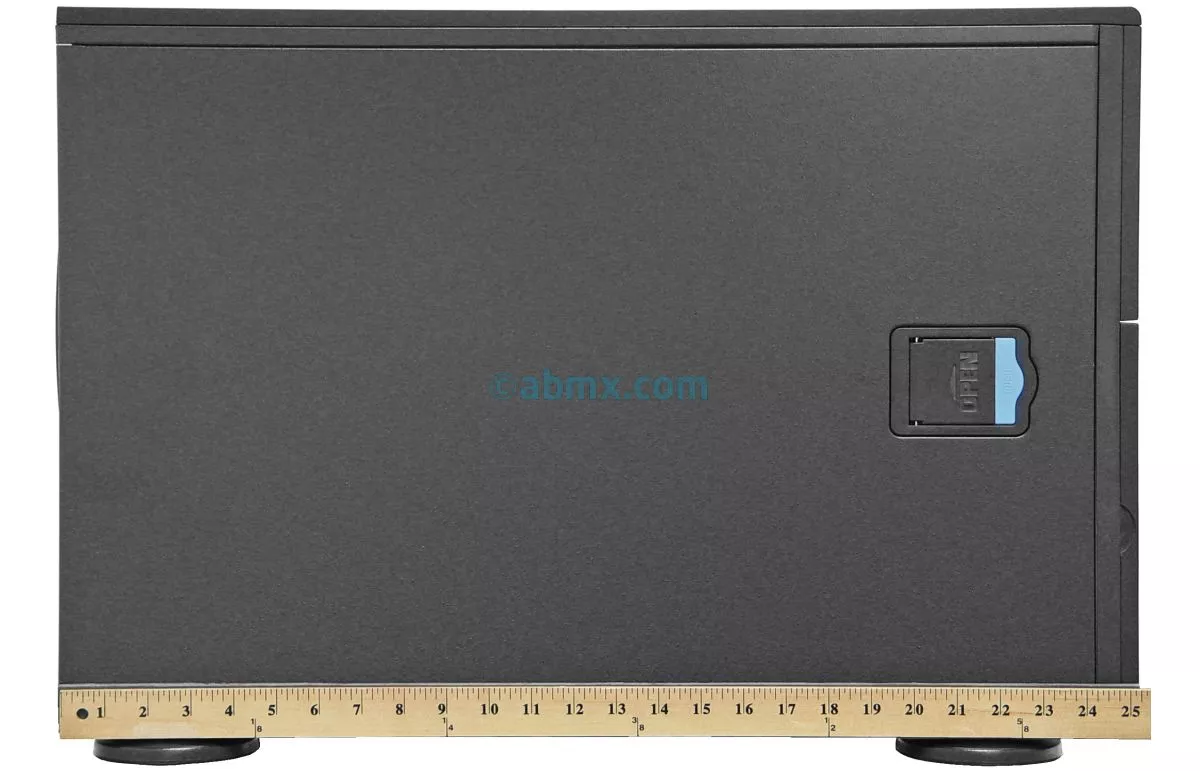

  • Dimensions: 25.5" (D) x 7" (W) x 17.8" (H)
  • Metal thickness: 1.2 mm
  • 2 x Front USB 3.0 ports
  • Front HDD Door Lock & Side Panel Intrusion Switch
  • 3 x Middle 8cm (5000 rpm) PWM Fans
  • 2 x 8cm (5000 rpm) PWM Fans
Processor/Chipset
  • Single Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933MHz ECC 3DS, LRDIMM, RDIMM
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C621A controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to eight drives
  • 1 x M.2 NVMe 2280/22110
Drive Bays
  • HD1-8 Bay: Hot-swap SATA/ SSD Drive
  • Up to 144 Terabyte of storage can be supported
  • 3 x 5.25-inch Drive Bay

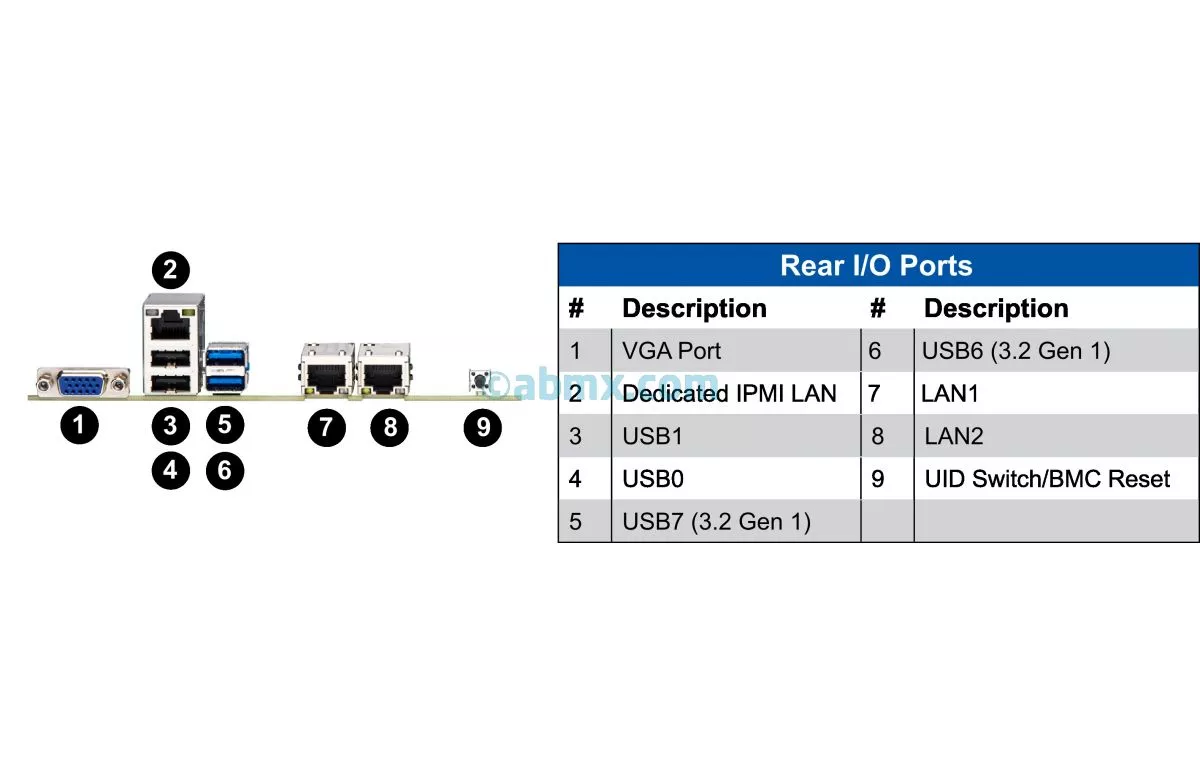

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 4.0 (x16) slot
  • 1 x PCI-e 4.0 (x8) in (x16) slot
  • 2 x PCI-e 4.0 (x8) slots
  • 3 x PCI-e 3.0 (x8) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Not provided for Tower version
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SPL-F /SPC621D8

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
