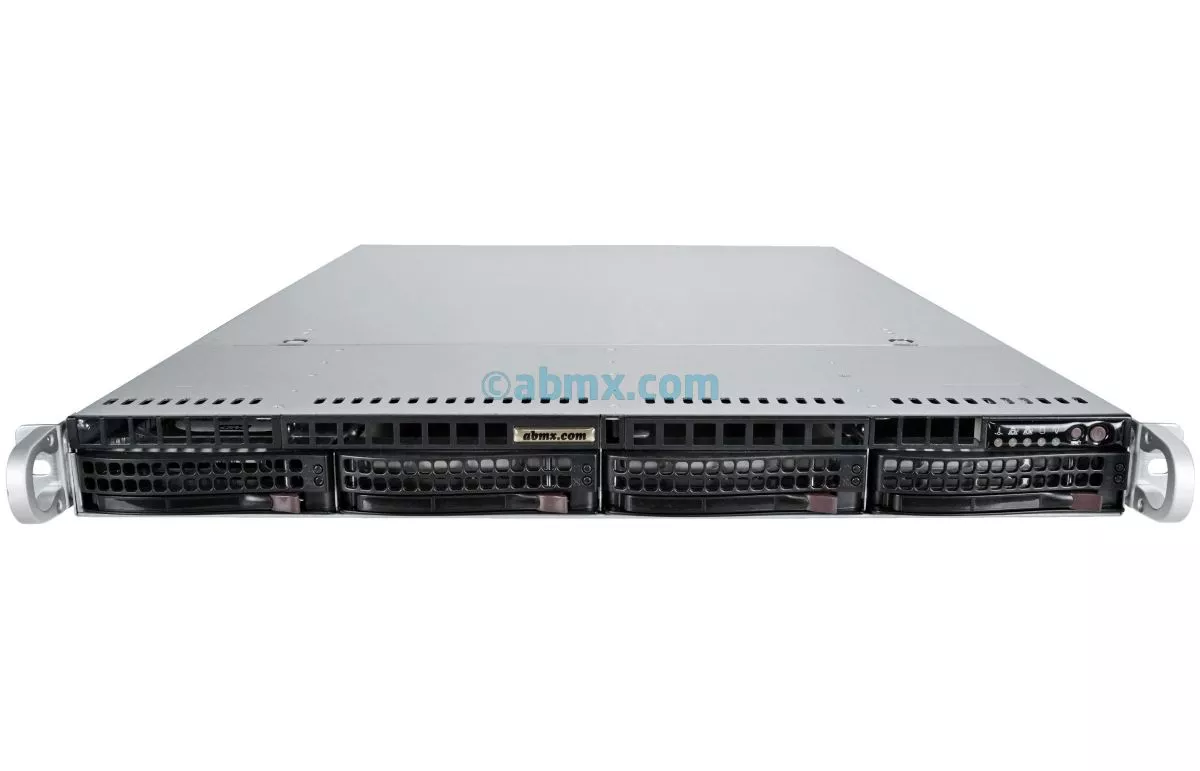

1U Rack PC - 4 x Hot-Swap Bays

The 1U Rack PC delivers exceptional performance in a compact 26-inch deep chassis, making it ideal for space-constrained environments. Featuring 4 hot-swap bays for convenient storage access, it is powered by Intel's latest Core i3 to i9 processors and supports up to 128GB of DDR5 memory, ensuring both efficiency and high performance.

Key Features
  • Video (HD Output)
  • 26-Inch deep
  • Dedicated IPMI / iKVM
  • TPM 2.0 (optional)
Related Tags
Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class
Microsoft®

Tech Specs

Chassis
  • 1U Rackmountable Enclosure
  • 1 Rack Unit Height (1.7")

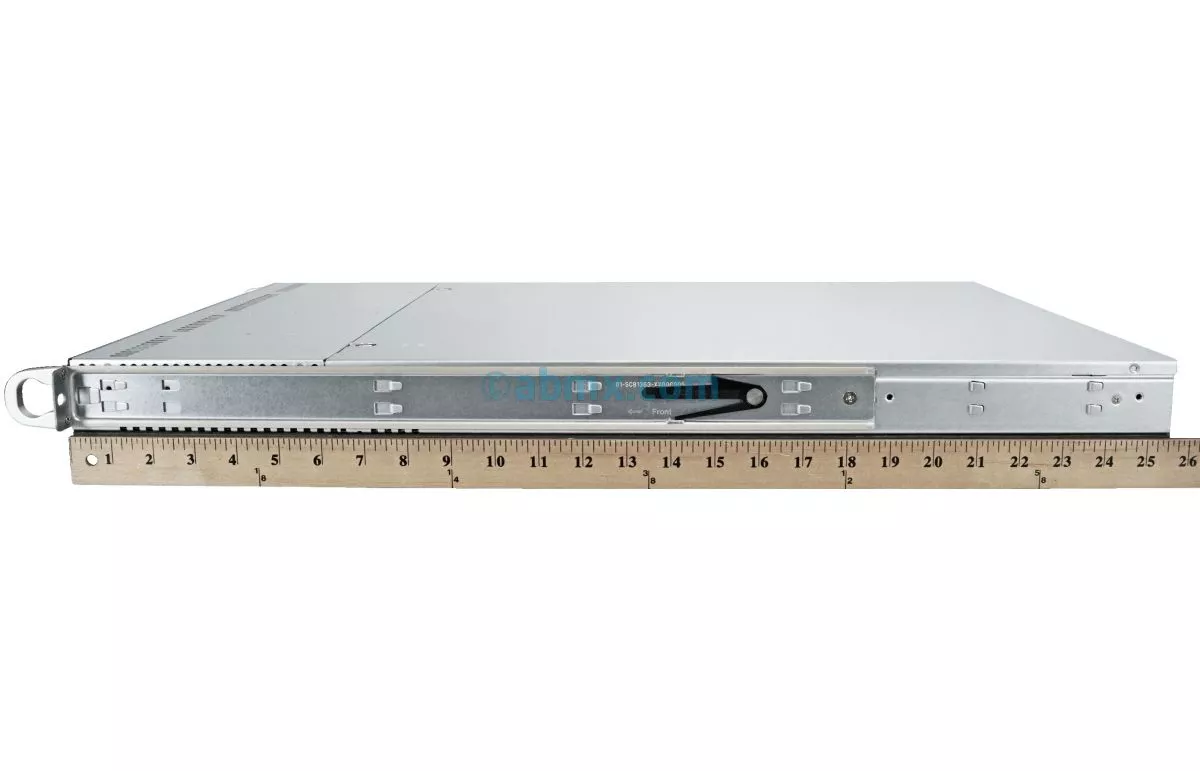

  • Dimensions: 25.6" (D) x 19" (W) x 1.7" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-1700
  • Supports 13th /12th Gen. Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Intel® R680E Chipset
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR5 DIMM sockets
  • Supports up to 128GB Unbuffered ECC/non-ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Intel R680E controller on-board
  • IPMI 2.0 on-board
  • Chassis supports up to four drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-4 Bay: hot-swap 3.5-inch SATA Drive or SSD
  • Up to 96 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

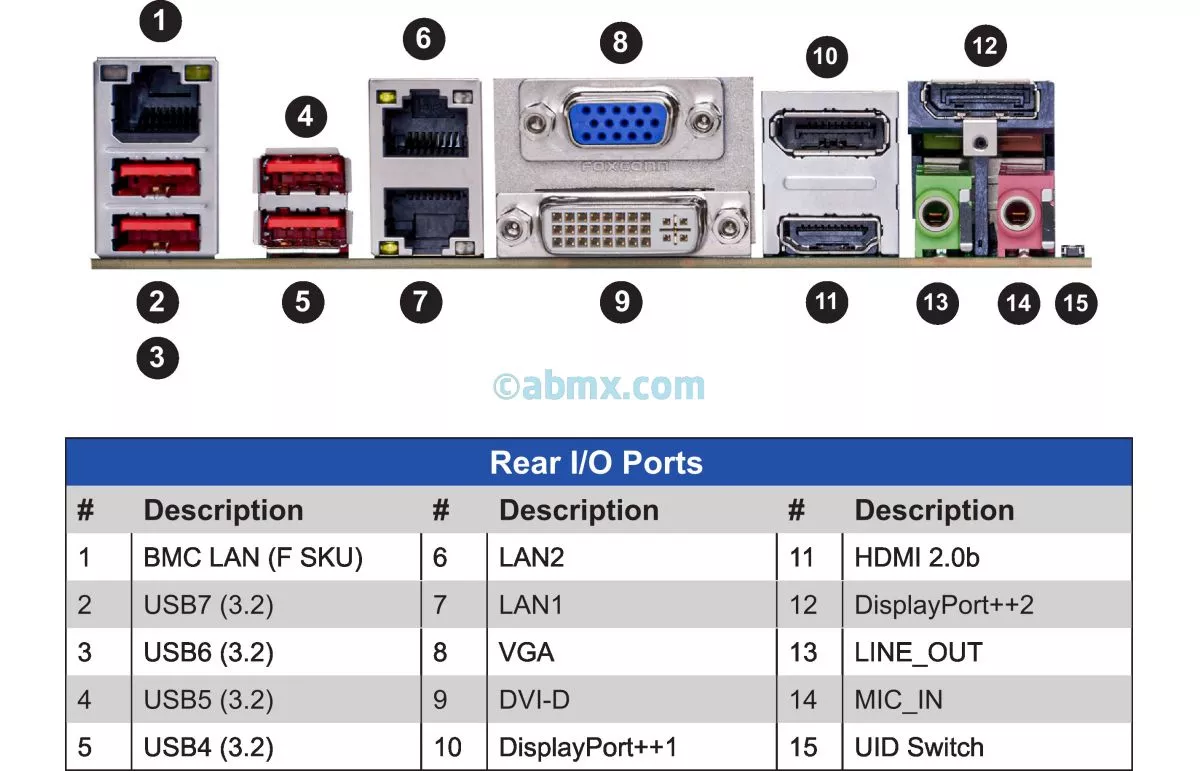

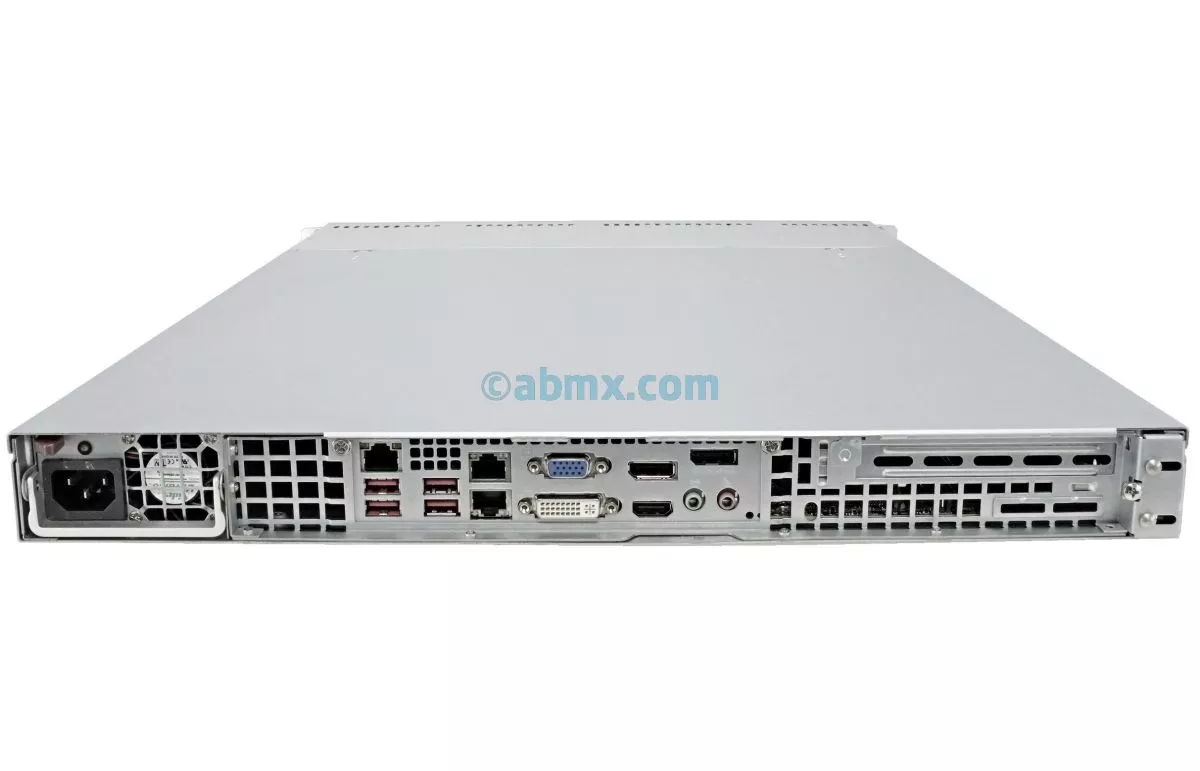

I/O ports
  • 2 x RJ45 2.5 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (4 x headers)
  • 6 x USB 3.2 Gen.2 ports (4 x rear type A, 2 x via header)
  • 2 x USB 3.2 Gen.1 ports (2 x via header)
  • 1 x VGA port
  • 1 x DVI - D port
  • 1 x HDMI 2.0b port
  • 2 x DP (DisplayPort) ports
  • 4 x COM Ports (2 x header RS232/422/485, 2 x header RS232)
  • 1 x TPM Header
Video / Audio
  • ALC 888S HD Audio on-board
  • DVI - D port, 1 HDMI 2.0b port, 2 DP (DisplayPort) ports: integrated graphics from CPU

Network
  • Dual 2.5GbE LAN (Intel® I225-LM) on-board
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 - full height (via Riser card)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, CE/EMC, TUV/CB
CD-ROM /DVD-ROM
  • USB External Optical Drive (OPTIONAL)
Rack Support
  • 1U rackmount rails kit is included
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Large Image

OS Compatibility

Motherboard X13SAZ-F OverallChipset
Intel R680E		LAN
Intel i225LM		Video
ASPEED AST2600
CentOS 9
Debian 12
Fedora Server 38
41
Fedora Workstation 38
41
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
24.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
24.04 LTS
VMWare ESXi 8
Windows 10
Windows Server 2022

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
