Mini Server - 4 x Hot-Swap Bays

Model: T112S3CLi

This ultra compact Mini Server features Intel's latest Xeon E-2400 processors for up to 20 powerful cores, and up to 64GB of blazing fast DDR5 memory for unparalleled performance and efficiency in such a small system. At only 12 inches in size, it comes equipped with a PCIe slot for a RAID controller or other PCIe expansion card, and provides 4 x 3.5" hot-swap bays for high capacity storage. This mini server is the perfect solution for small office environments that need an appliance, file server, or application server where there is no rack space available.

Key Features
  • Short Depth
  • Front USB
  • 12-Inch deep
  • Dedicated IPMI / iKVM
  • Dual LAN
  • Front USB (optional)
  • TPM 2.0 (Optional)
Recommended Uses

4 - 8 Cores
Xeon E

16 - 64 GB

4 x 3.5 Hot-Swap

2 x 1GbE

1 x PCI-e

Case/Tower

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

PCIe Expansion Slot

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • Compact Mini-Tower Chassis
  • Dimensions: 11" (D) x 8.27" (W) x 9.45" (H)
  • Metal thickness: 1.2 mm
  • Front: 2 x USB 3.1 Ports
  • Kensington Lock supported
Processor/Chipset
  • Single Socket LGA-1700 (Socket V0)
  • Supports 14th Gen Intel® Xeon® E-2400 Processors
  • Intel® C262 Chipset
BIOS
  • AMI 32MB AMI UEFI
  • ACPI 6.4
  • SMBIOS 3.5
  • UEFI 2.8
  • Plug and Play (PnP)
  • PCI FW 3.3
Memory
  • 2 x DDR5 DIMM sockets
  • Supports up to 64GB Unbuffered ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 6 x SATA3 6Gbps ports (4 x via Slimline SAS x4 connector)
  • Intel® C262 controller on-board
  • IPMI 2.0 on-board (ASPEED AST2600 BMC)
  • Chassis supports up to four hard drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-4 Bay: hot-swap SATA/ SSD Drive
  • Additional 2 x 2.5-inch fixed drive bays
  • Up to 96 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

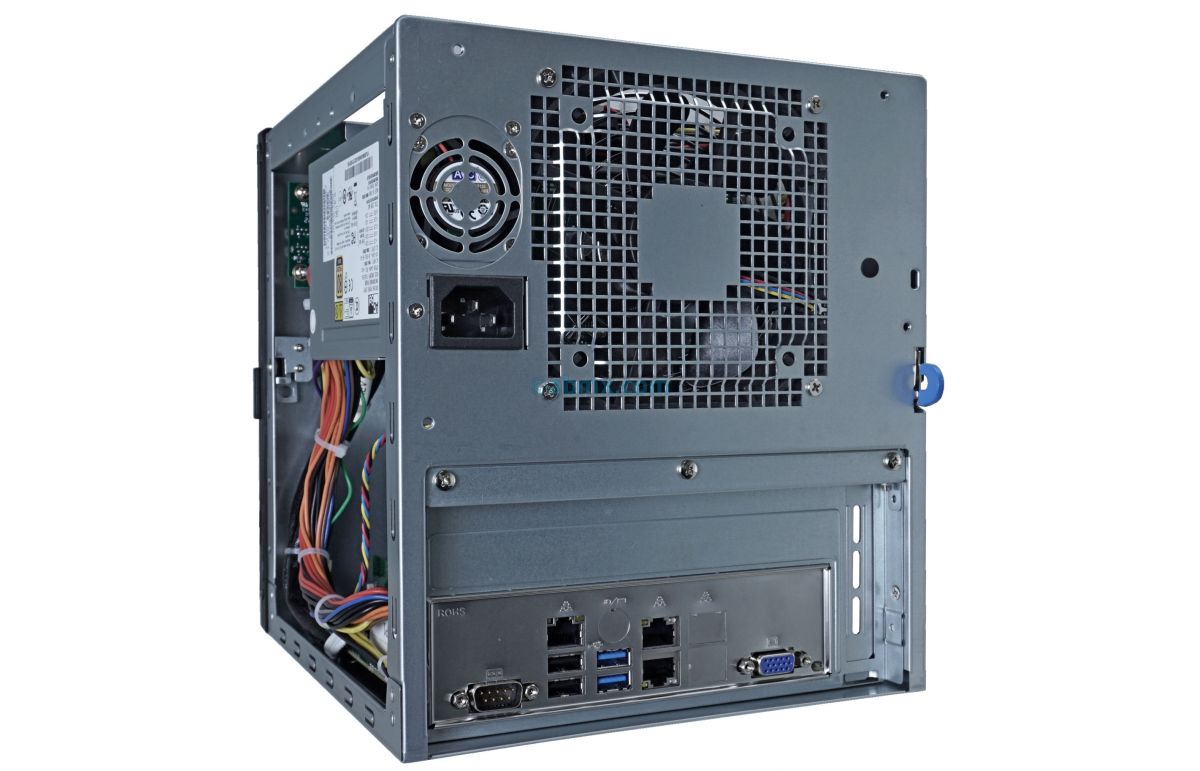

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 2 x USB 2.0 ports (2 x rear)
  • 4 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear)
  • 1 x VGA D-Sub Connector port
  • 2 x COM Ports (1 x header, 1 x rear)
  • 1 x TPM Header
Video / Audio
  • Aspeed AST2600 BMC graphics on-board

Network
  • Dual Gigabit LAN (Intel® I210) on-board
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 slot  (LOW-PROFILE)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE power supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC, TUV/CB, UL/CB
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • Not supported
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X13SCL-iF

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
