Model: 110FS3CLi

10-Inch deep

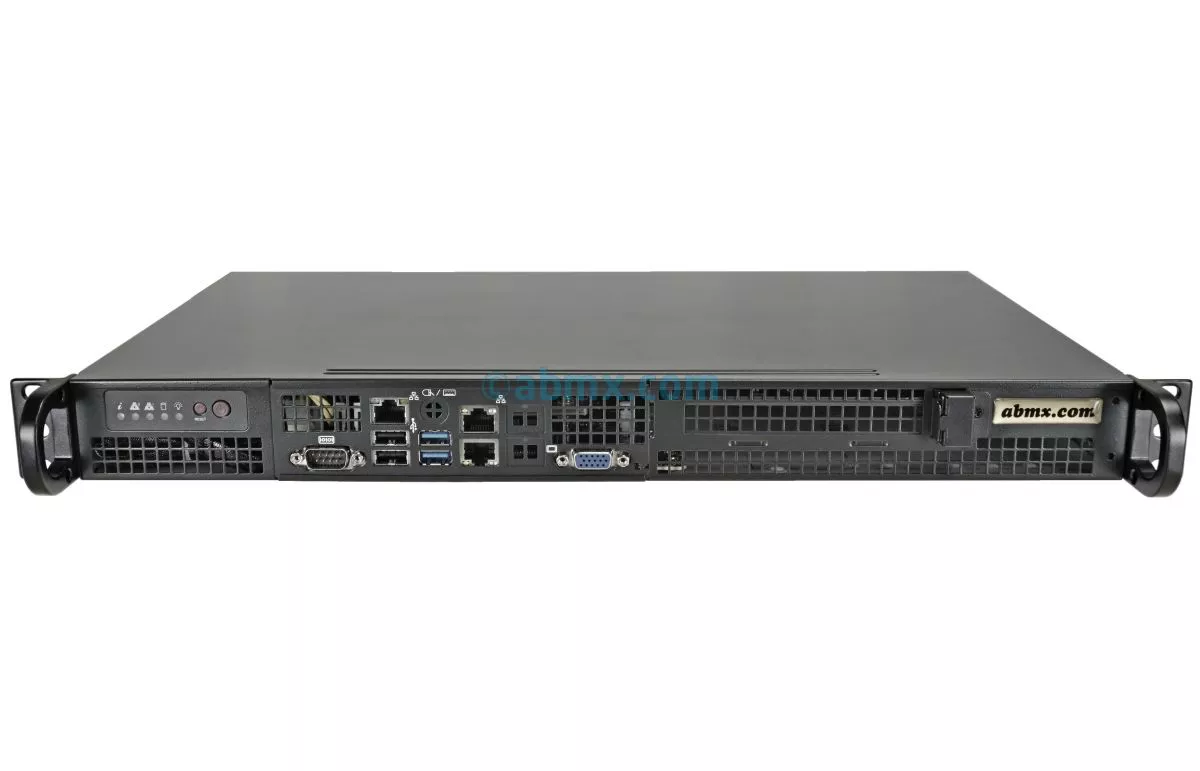

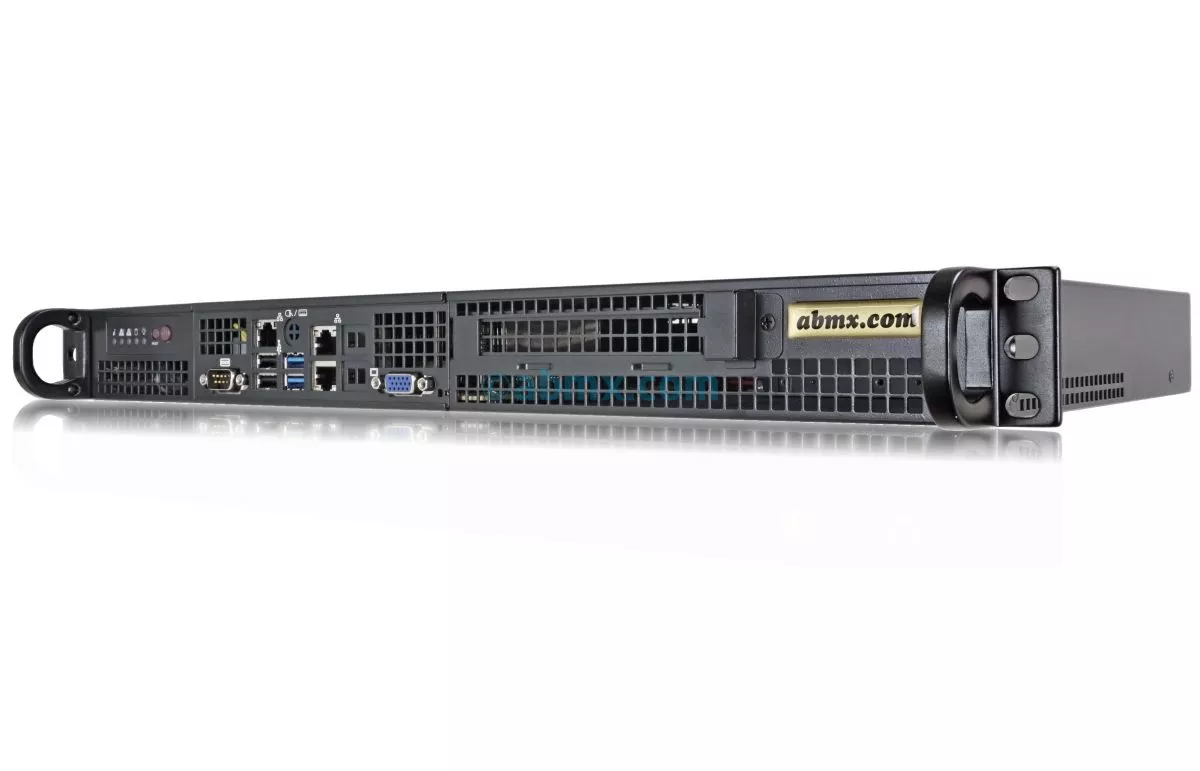

1U Mini Server - 10-inch deep - Front I/O-3

1U Mini Server - 10-inch deep - Front I/O-4

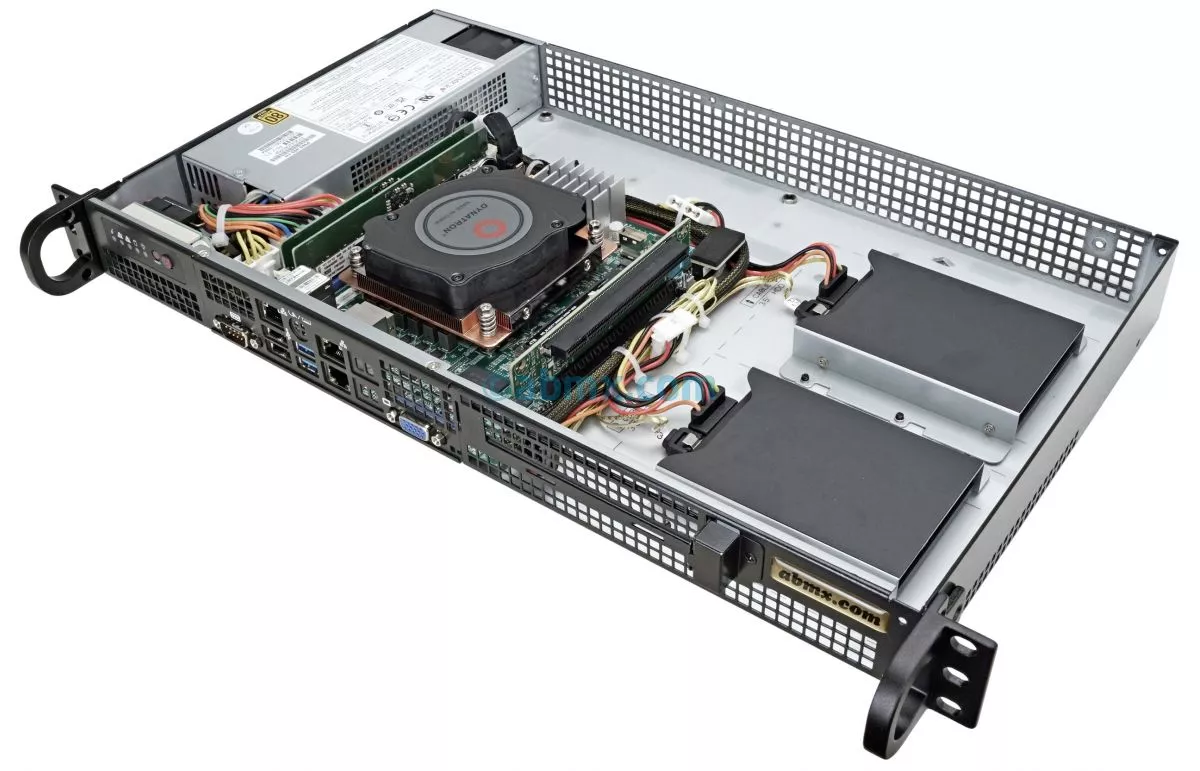

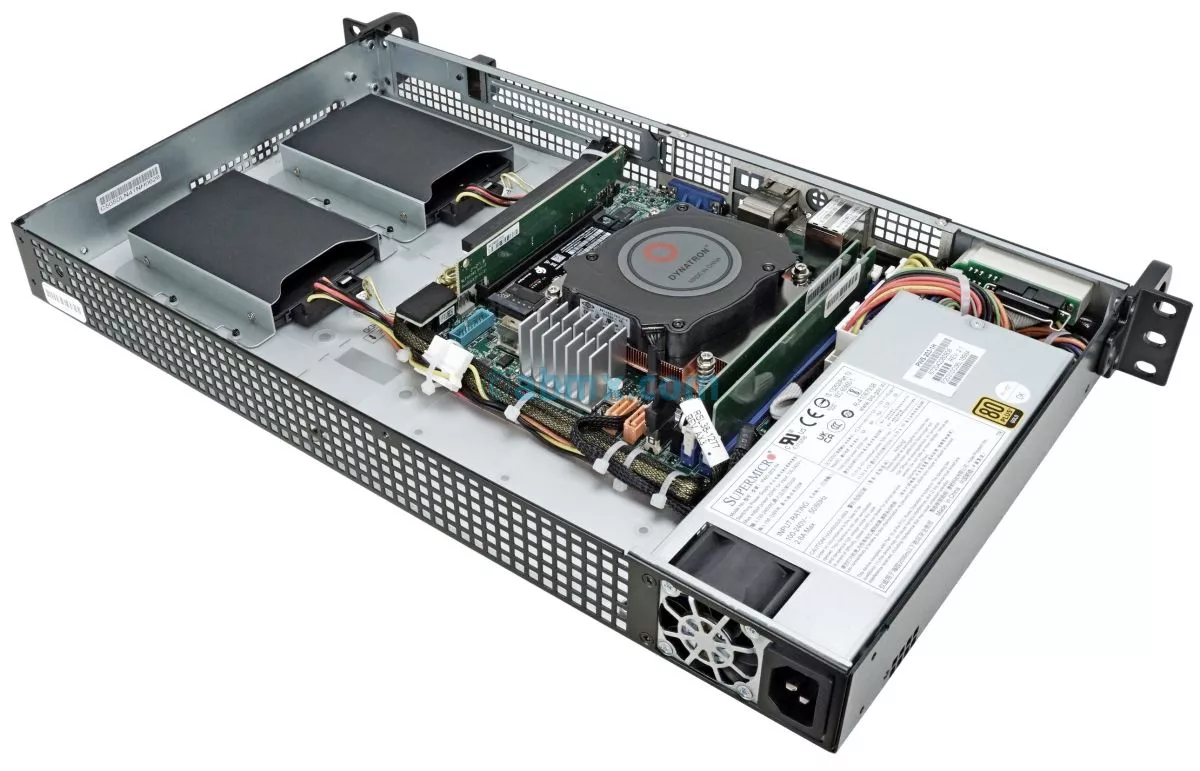

The 110FS3CLi is a compact 1U mini server, measuring just 10 inches deep, designed for space-constrained environments. Its front I/O access makes installation and maintenance effortless, providing quick and easy access to ports even in tight server racks. Despite its small size, it’s powered by Intel Xeon E-2400 processors and supports up to 64GB DDR5 ECC memory, delivering powerful performance for network appliances, firewall setups, and edge computing. The short-depth chassis ensures optimal efficiency where space is at a premium.

CPU

4 - 8 Cores
Xeon E

Memory

16 - 64 GB

Storage

1 x 3.5 Fixed
4 x 2.5 Fixed

LAN

2 x 1GbE

PCI-e

1 x PCI-e

Chassis

9.8-inch 1U Mini Rack Mountable Enclosure
Rack Unit Height: 1.7-inch

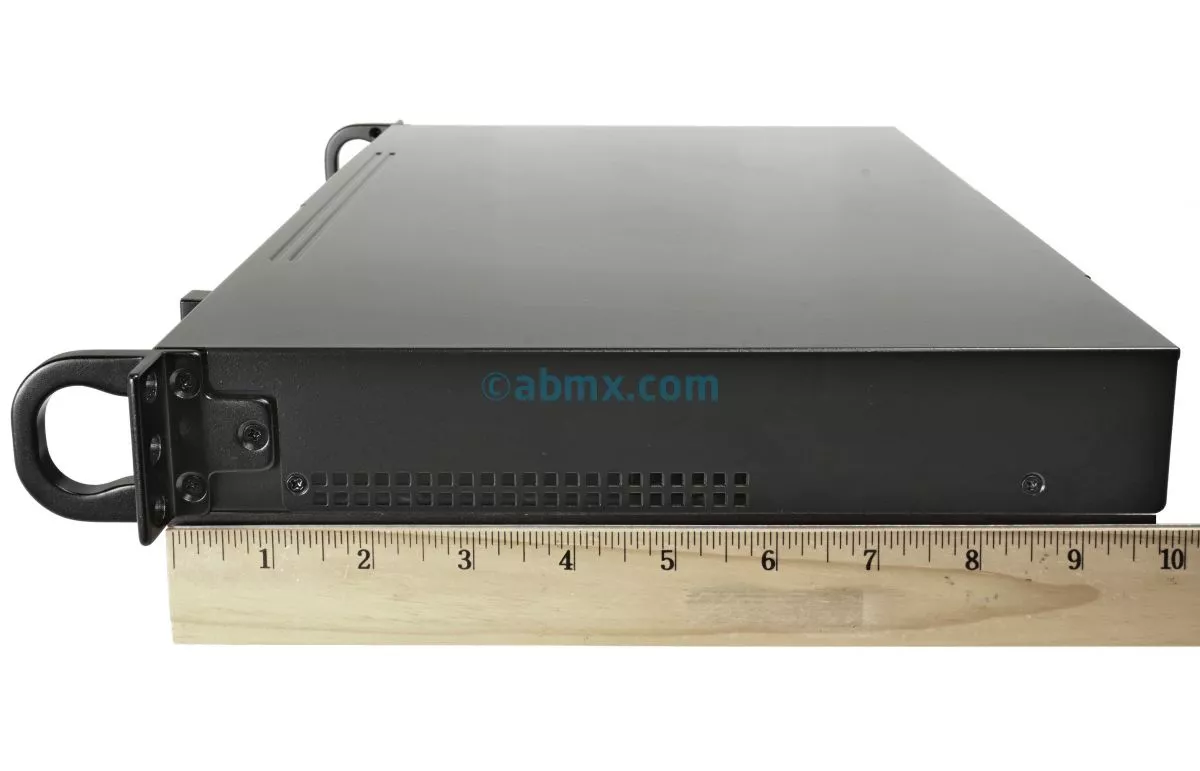

Dimensions: 9.8" (D) x 19" (W) x 1.7" (H)
Metal thickness: 1.2 mm
Front I/O Ports

Processor/Chipset

Single Socket LGA-1700 (Socket V0)
Supports 14th Gen Intel® Xeon® E-2400 Processors
Intel® C262 Chipset

BIOS

AMI 32MB AMI UEFI
ACPI 6.4
SMBIOS 3.5
UEFI 2.8
Plug and Play (PnP)
PCI FW 3.3

Memory

2 x DDR5 DIMM sockets
Supports up to 64GB Unbuffered ECC UDIMM
4400/4000/3600 MT/s

Storage / IPMI

6 x SATA3 6Gbps ports (4 x via Slimline SAS x4 connector)
Intel® C262 controller on-board
IPMI 2.0 on-board (ASPEED AST2600 BMC)
Chassis supports 1 x 3.5-inch Drive or up to 4 x 2.5-inch Drives
1 x M.2 NVMe (2280/22110)

Drive Bays

HD1 Bay: fixed 3.5-inch Drive, OR up to 4 x 2.5-inch Drives
Up to 32 Terabyte of storage can be supported

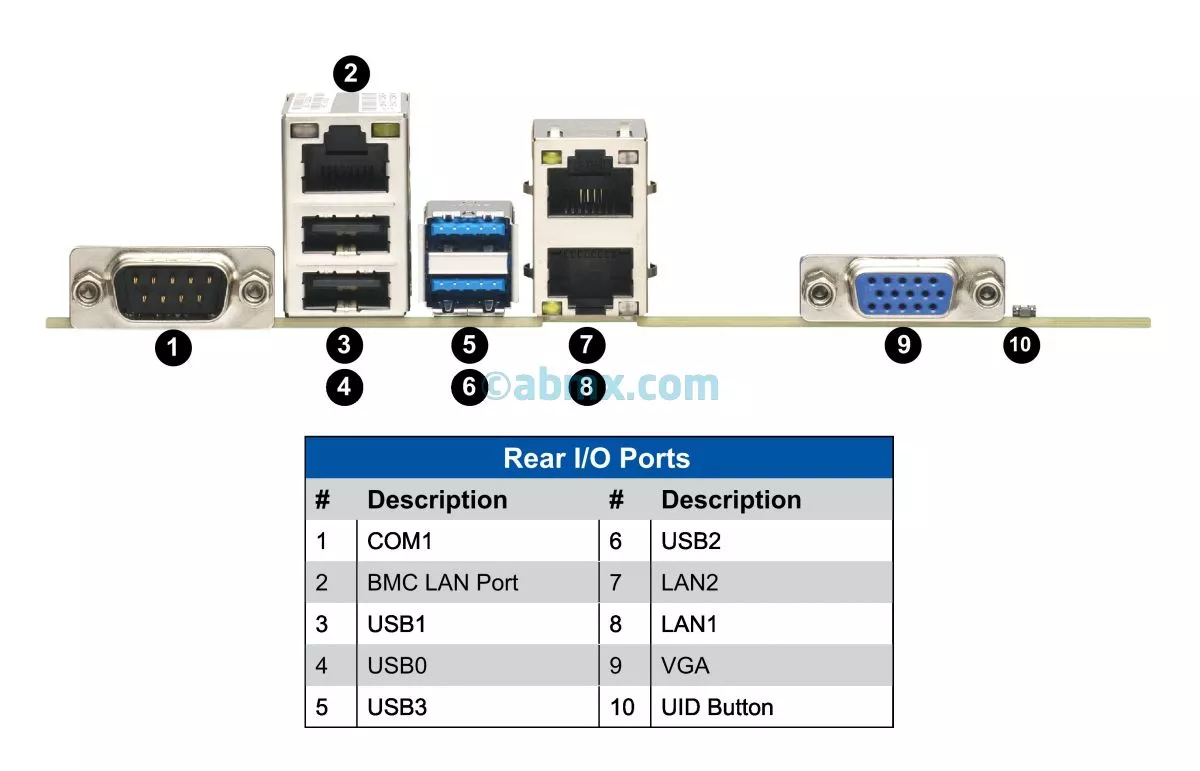

I/O ports

2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
2 x USB 2.0 ports (2 x rear)
4 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear)
1 x VGA D-Sub Connector port
2 x COM Ports (1 x header, 1 x rear)
1 x TPM Header

Video / Audio

Aspeed AST2600 BMC graphics on-board

Network

Dual Gigabit LAN (Intel® I210) on-board

Hardware Monitor

CPU/System Fan Speed
CPU Temperature
System Voltage Vcore,+3.3V,+5V,+12V

Expansion

1 x PCI-e 5.0 x16 slot - full height (via Riser card)

Power Consumption/Acoustic noise emission

Dependent upon hardware configuration.
Please contact our tech support at 714-258-2269 for further details.

Power Supply

HE power supply
Tested to comply with FCC Standards
Certifications: BSMI, CCC, CE/EMC, TUV/CB, UL/CUL

CD-ROM /DVD-ROM

External USB Optical Drive (OPTIONAL)

Rack Support

1U rackmount rails kit is OPTIONAL

OS Compatibility

Please call our tech support at 714-258-2269 for details

Warranty

3 years Parts* and Labor Standard
* Batteries are subject to DOA only and are NOT subject for replacement or return
Extended Warranties Available

Motherboard X13SCL-iF	Overall	Chipset Intel C262	LAN Intel I210	Video ASPEED AST2600
CentOS 9
Debian 12
Fedora Server 41
Fedora Workstation 41
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 22.04 LTS
24.04 LTS
Ubuntu Server 22.04 LTS
24.04 LTS

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
