4U Short-Depth Server - AMD Threadripper

Model: 420Z3SRA

24 - 96 Cores
AMD Ryzen

16 - 256 GB

5 x 3.5 Fixed

2 x 1GbE

4 x PCI-e

Chassis

Motherboard

Special Order - ETA - 08/2024

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Front USB/COM port

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

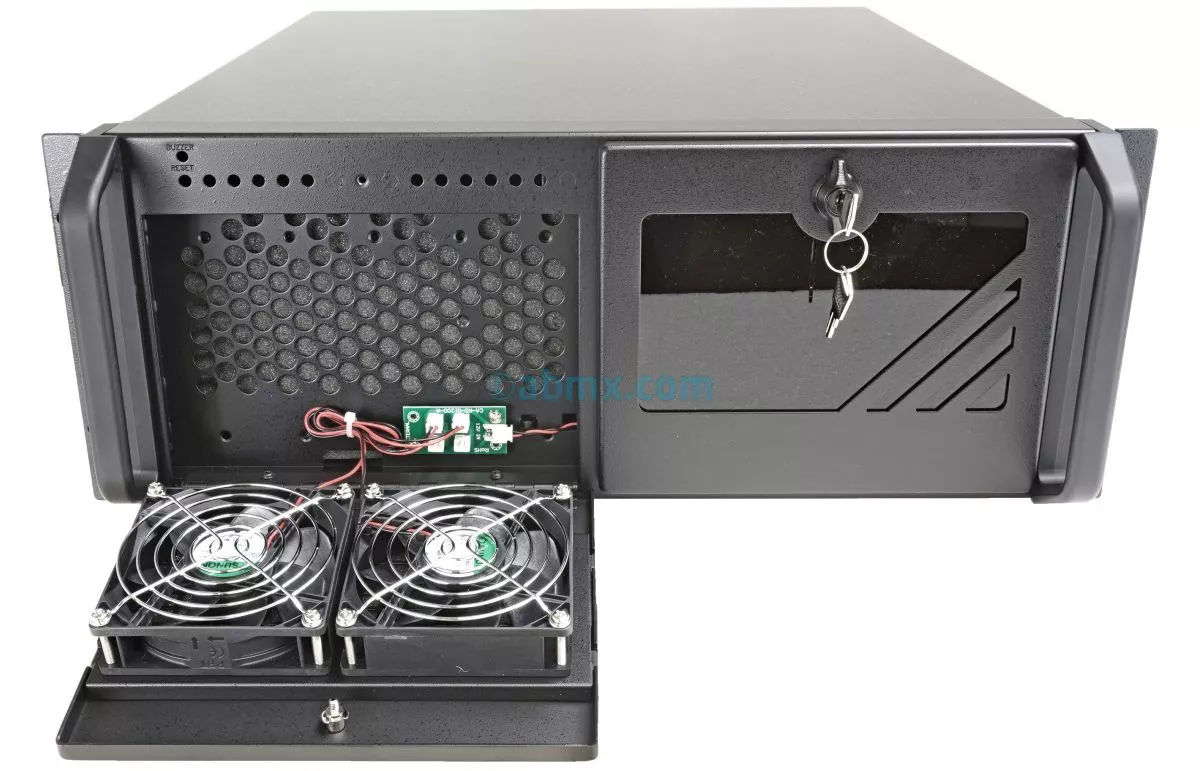

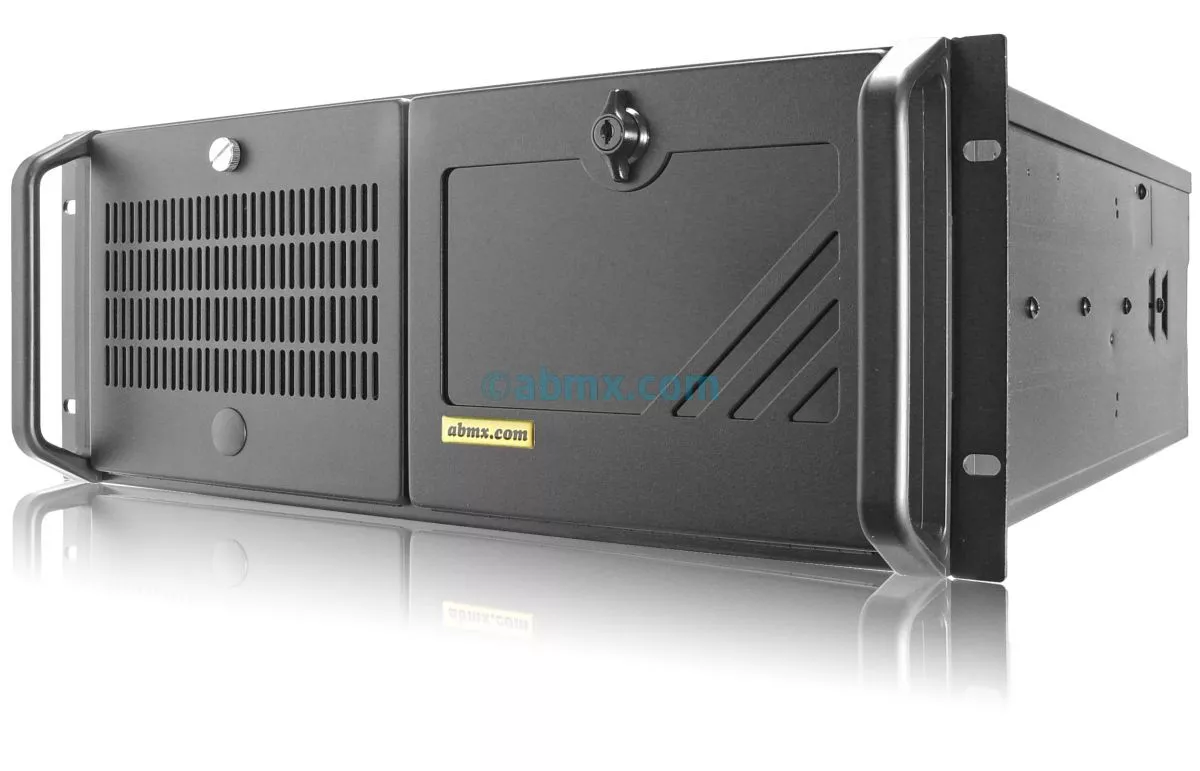

  • 4U 20-inch deep Short Rack Mountable Enclosure
  • Rack Unit Height: 7"
  • Dimensions: 20.1" (D) x 19" (W) x 7" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumbscrew
Processor/Chipset
  • Single Socket sTR5 (LGA-4844)
  • Supports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
  • TRX50 chipset
BIOS
  • AMI 32MB SPI Flash EEPROM
  • ACPI 6.5
  • SMBIOS 3.6 or later
  • UEFI 2.9
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x DDR5 DIMM sockets
  • Suppots up to 4TB
  • 5200 MT/s DDR5 ECC RDIMM/3DS RDIMM
  • Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors
Storage
  • 4 x SATA3 (6Gbps) ports
  • IPMI 2.0 (ASPEED AST2600)
  • Chassis supports up to six hard drives
  • 2 x M.2 NVMe 2280
Drive Bays
  • HD1-5 Bay: fixed SATA/ SSD Hard Drive
  • OPTIONAL: HD6 Bay: fixed SATA/SSD Hard Drive (please call our tech support at 714-258-2269 for details)
  • Up to 110 Terabyte of storage can be supported
  • 2 x 5.25-inch Peripheral Bay
I/O ports
  • 2 x RJ45 Gigabyte Ethernet Lan ports
  • Optional Upgrade to 2 x RJ45 10-Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen2x1 ports (1 x header type C, 4 x rear type A)
  • 1 x USB 3.2 Gen2x2 port (1 x rear type C)
  • 2 x USB 3.2 Gen1x1 ports (2 x via header)
  • 2 x USB 2 ports (2 x via header)
  • 1 x VGA port
  • 1 x COM Port (1 x COM rear)
  • 1 x TPM Header
Video / Audio
  • Graphics controller & VGA support via ASPEED AST2600 BMC
  • ALC 888S HD Audio 5.1 Channel on-board

Network
  • Dual Gigabit LAN (Broadcom BCM5720), OR
  • Dual 10Gb LAN (Broadcom BCM57416) (OPTIONAL)
  • Single LAN with ASPEED AST2600 (Dedicated LAN for IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x PCI-E 5.0 (x8) slots (Open rear)
  • 2 x PCI-E5.0 (x16) slots (Metal armor protection, support 2 triple/dual/single-width GPU cards)
  • 1 x PCI-E 4.0 (x8) slot (MCIO connector)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • AC HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: CE, CCC
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard H13SRA-F
