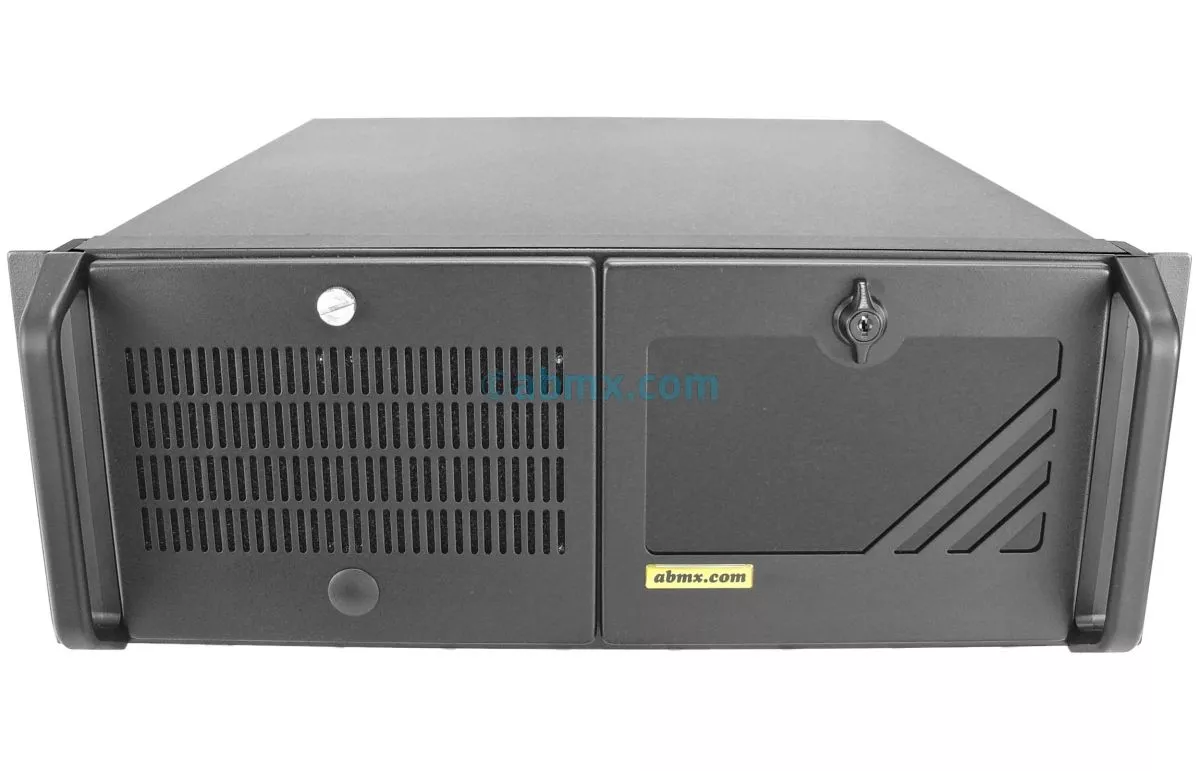

4U GPU AMD Server

Unleash creativity and boost productivity with our 4U GPU AMD Server, engineered for modern workstation tasks. Powered by high-performance AMD Ryzen processors, this server delivers impressive multi-core speed for everyday computing, content creation, 3D design, and multimedia editing. Its dedicated GPU support ensures smooth performance for graphics-intensive or GPU-accelerated applications such as video rendering, CAD software, and digital art tools. This 4U server is perfect for creative professionals and developers seeking reliable, high-quality performance. With efficient cooling and versatile connectivity options, our 4U GPU AMD Server offers a robust solution for any environment where efficiency and dynamic visual processing are essential.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Video (HD Output)
  • 5.25" Drive Bay
  • 20-Inch deep
Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Microsoft®

Tech Specs

Chassis
  • 4U 20-inch deep Short Rack Mountable Enclosure
  • Rack Unit Height: 7.0-inch

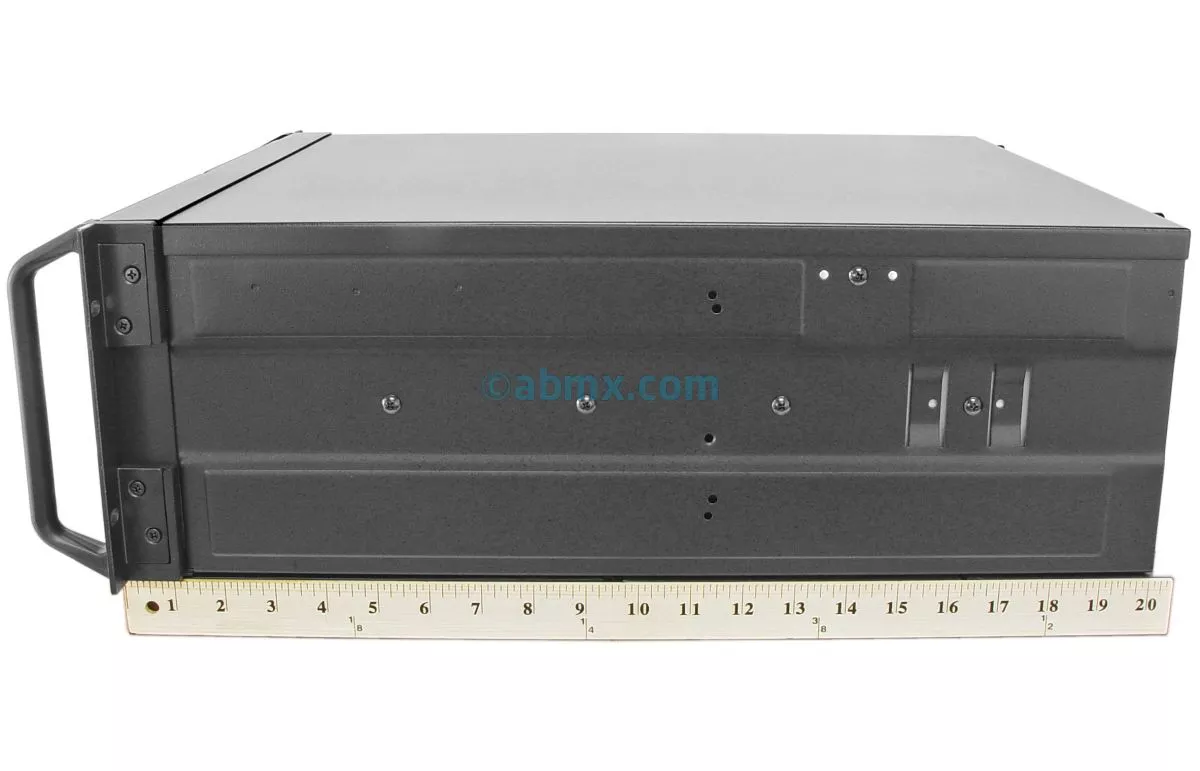

  • Dimensions: 20.1" (D) x 19" (W) x 7.0" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumbscrew
Processor/Chipset
  • Single AMD Socket AM5
  • Supports AMD Ryzen™ 9000, 8000, 7000 Series Desktop Processors
  • AMD X870E chipset
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
Memory
  • 4 x DDR4 DIMM sockets
  • Supports up to 192GB
  • DDR5 ECC/non-ECC Un-buffered memory
  • 8000+MT/s (OC)
Storage
  • 4 x SATA3 (6Gbps) ports
  • 3 x M.2 NVMe (22110/2280/2260/2242)
Drive Bays
  • HD1-4 Bay: fixed SATA/ SSD Hard Drive
  • Up to 96 Terabyte of storage can be supported
  • 2 x 5.25-inch Peripheral Bay

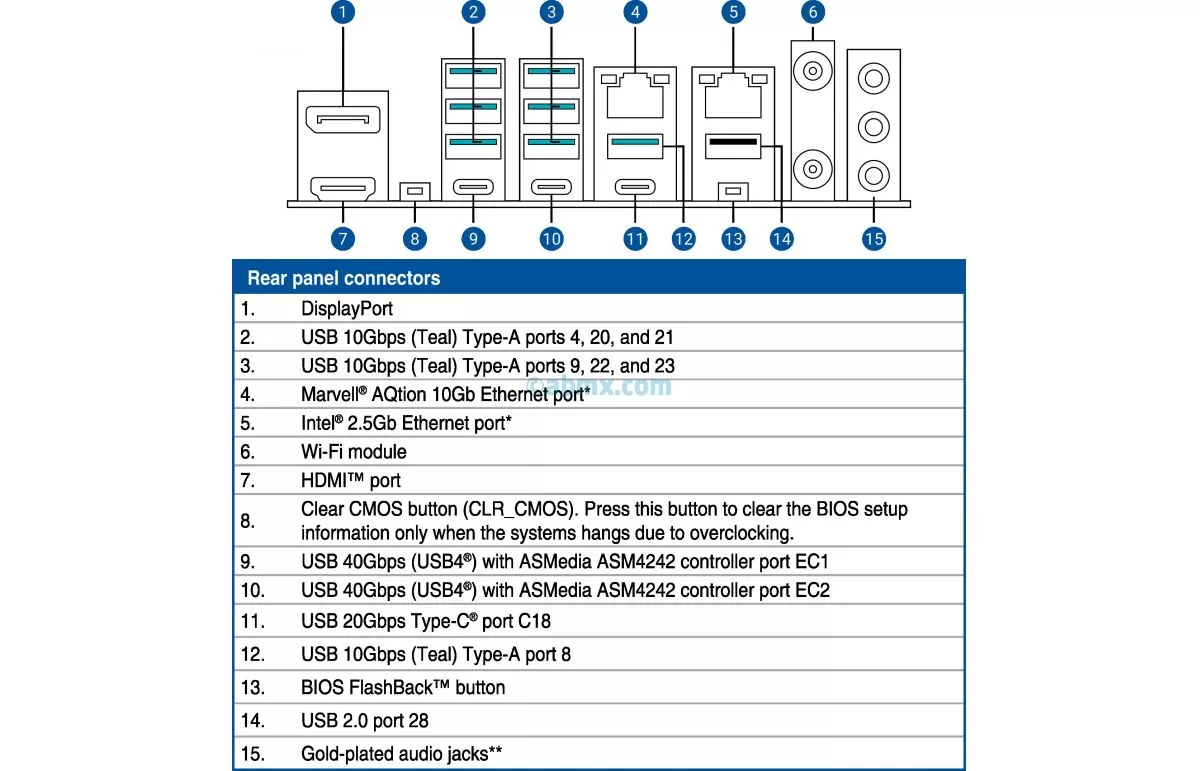

I/O ports
  • 1 x RJ45 10-Gigabit Ethernet LAN port
  • 1 x RJ45 2.5-Gigabit Ethernet LAN port
  • 7 x USB 10Gbps ports
  • 2 x USB4 ports w/ DP 1.4 (8K @ 60 Hz)
  • 1 x USB 20Gbps port (Type-C)​
  • 1 x USB 2.0 port
  • 3 x USB 2.0 headers
  • 1 x USB 5Gbps front-panel header
  • 1 x USB 20Gbps Type-C front-panel connector w/ 30-watt PD, QC 4+​
  • 1 x DP input port for USB4
  • 1 x HDMI 2.1 port (4K @ 60 Hz)​
  • 1 x WiFi 7
  • 3 x Audio jacks
Video / Audio
  • 1 x HDMI port (supports 4K@60Hz as specified in HDMI 2.1).
  • VGA resolution support depends on processors' or graphic cards' resolution.
  • 2 x USB4 (40Gbps) ports support USB Type-C display outputs.
  • Supports max. 8K@60Hz as specified in DisplayPort 1.4.
  • Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC

Network
  • 1 x 10-Gigabit Ethernet LAN (Marvell® AQtion)
  • 1 x 2.5-Gigabit Ethernet LAN (Intel®)
Hardware Monitor
  • Operating Temperature Range 10°C - 35°C (50°F - 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 2 x PCI-e 5.0 (x16) slots (supports 1 x (x16), OR 2 x (x8))
  • 1 x PCI-e 4.0 (x16) slot (supports (x4) mode)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit (OPTIONAL)
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
