4U Rackmount Server - Intel Xeon W

Experience unmatched efficiency with our 4U Rackmount Server, powered by Intel Xeon W-3400 and W-3500 processors. This compact powerhouse is engineered for high-performance computing, and AI, and GPU accelerated workloads, delivering robust support to accelerate complex machine learning, data-intensive applications, and 3D graphics processing. It’s the ideal solution for modern projects that demand rapid processing and reliable multitasking. Upgrade your infrastructure with this versatile, high-performance server and empower your business to tackle demanding AI, graphics, and computational challenges with ease.

Key Features
  • Front USB
  • Video (HD Output)
  • 5.25" Drive Bay
  • 27-Inch deep
Special Order
Samsung 970 PRO
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm D3-S4520
Solidigm D3-S4620
Western Digital® Enterprise-class
NVIDIA Ampere
NVIDIA Turing
NVIDIA Ampere
NVIDIA Turing
NVIDIA Ada Lovelace
NVIDIA Ampere
Special Order
NVIDIA Ada Lovelace
Special Order
Special Order
NVIDIA Ampere
Special Order
NVIDIA Ada Lovelace
Special Order
Special Order
Microsoft®

Tech Specs

Chassis

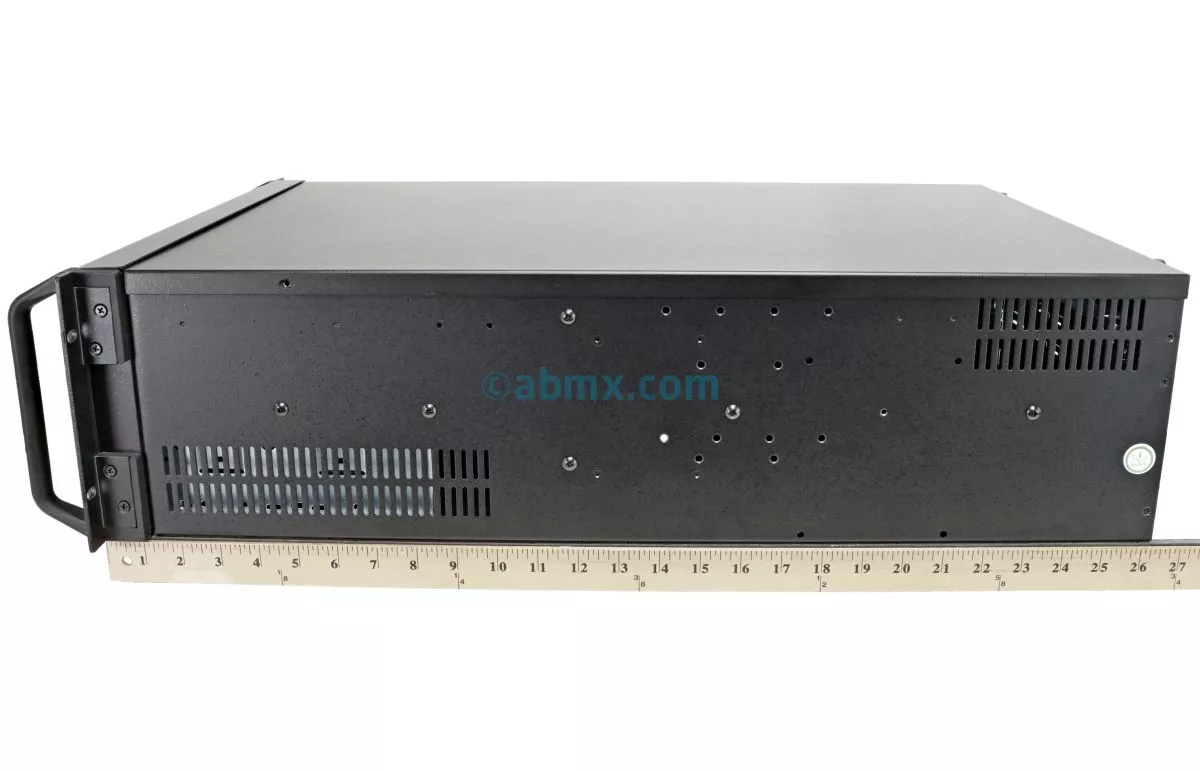

  • 4U 27-inch deep Rack Mountable Enclosure
  • Rack Unit Height: 7"
  • Dimensions: 26.4" (D) x 19" (W) x 7" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumb Twist Keylock
  • Inside Front Door is Washable Air Filter
Processor/Chipset
  • Single Socket LGA-4677 (Socket E)
  • Supports Intel® Xeon® W-3500/ W-3400 series processors
  • Intel® W790 Chipset
BIOS
  • 512 Mb Flash ROM, UEFI AMI BIOS
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
Memory
  • 8 x DIMM sockets
  • Supports up to 2TB DDR5 ECC Registered Memory
  • 6800-4800MHz
Storage
  • 8 x SATA3 (6Gbps) ports
  • 2 x SlimSAS ports, support PCIe 4.0 x4 mode NVMe device
  • Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device
  • 3 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1 Bay: fixed SATA/ SSD Hard Drive
  • OPTIONAL: up to 6 x additional fixed SATA/SSD Hard Drives (please call our tech support at 714-258-2269 for details)
  • Up to 144 Terabyte of storage can be supported
  • 6 x 5.25-inch Peripheral Bay
I/O ports
  • 2 x RJ45 10GbE Ethernet LAN port
  • 1 x RJ45 Managment LAN port
  • 1 x USB 3.2 Gen.2x2 port (1 x USB Type-C)
  • 5 x USB 3.2 Gen.2 ports (4 x Type-A + 1 x USB Type-C)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x VGA port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x Clear CMOS button
Video / Audio
  • VGA port from AST2600
  • Realtek S1220A 7.1 Surround Sound HD Audio CODEC on-board

Network / IPMI
  • Dual Intel® 10-Gigabit Ethernet LAN port
  • Realtek Gigabit Ethernet LAN port for IPMI remote management
  • IPMI controller on-board via AST2600 BMC
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 6 x PCI-e 5.0 (x16) slots
  • 1 x PCI-e 5.0 (x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • ATX High-Efficiency Power Supply
  • Total continuous power - 1600W @ 115-240Vac, 1300W @ 100-240 Vac
  • Tested to comply with FCC Standards
  • Certifications: CE, CCC
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
