4U GPU Rackmount Server

Experience unparalleled computational power with our 4U GPU Rackmount Server, powered by AMD Threadripper Pro CPUs. Engineered for high-performance computing, AI, and GPU-accelerated tasks, this server delivers lightning-fast multi-core processing for demanding applications. Whether you're running complex simulations, training advanced machine learning models, or handling large-scale data analytics, the Threadripper Pro platform provides the robust performance and scalability required for next-generation workloads.Built for modern data centers, this 4U rackmount server maximizes efficiency in a compact form factor without sacrificing thermal performance or connectivity. This server the ultimate solution for enterprises looking to drive innovation in HPC and AI applications. Elevate your infrastructure with a system designed to meet the most rigorous computational challenges while ensuring future-proof performance.

Key Features
  • Front USB
  • Video (HD Output)
  • 5.25" Drive Bay
  • 27-Inch deep
Special Order
Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Special Order
Microsoft®

Tech Specs

Chassis
  • 4U 27-inch deep Rack Mountable Enclosure
  • Rack Unit Height: 7"
  • Dimensions: 26.4" (D) x 19" (W) x 7" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumb Twist Keylock
  • Inside Front Door is Washable Air Filter
Processor/Chipset
  • Single AMD sTR5 socket
  • Supports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors
  • AMD WRX90 Chipset
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS (text-based)
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
Memory
  • 8 x DDR5 DIMM sockets
  • Suppots up to 2TB
  • 7600-5600 MT/s DDR5 ECC RDIMM/3DS RDIMM
Storage
  • 4 x SATA3 (6Gbps) ports
  • 2 x SlimSAS ports
  • IPMI 2.0 (AST2600 BMC)
  • Chassis supports up to seven hard drives
  • 4 x M.2 NVMe 2280
Drive Bays
  • HD1 Bay: fixed SATA/ SSD Hard Drive
  • OPTIONAL: up to 6 x additional fixed SATA/SSD Hard Drives (please call our tech support at 714-258-2269 for details)
  • Up to 144 Terabyte of storage can be supported
  • 6 x 5.25-inch Peripheral Bay

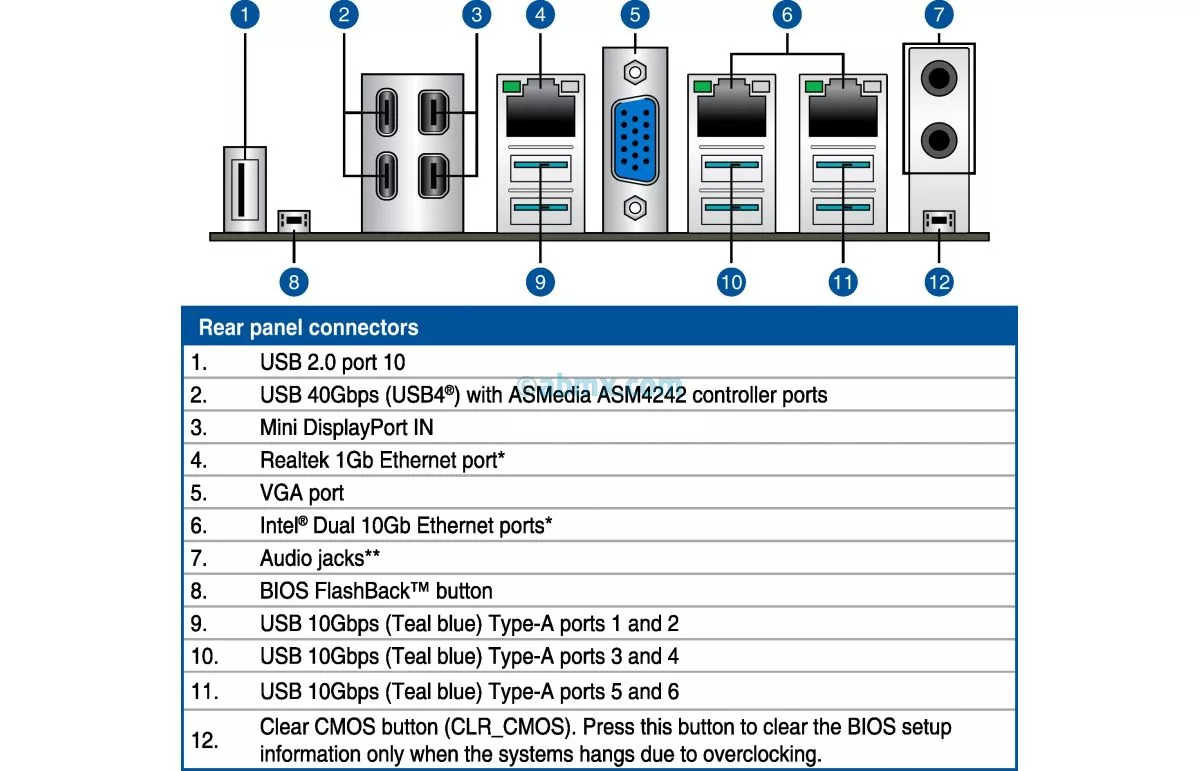

I/O ports
  • 2 x RJ45 10-Gigabit Ethernet LAN ports
  • 1 x RJ45 Gigabit Ethernet LAN
  • 2 x USB 40Gbps w/ ASMedia ASM4242 controller ports (2 x USB Type-C)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x USB 2.0 ports (2 x Type-A )
  • 1 x VGA port
  • 2 x mini DisplayPort IN
  • 2 x Audio jacks
  • 1 x Clear CMOS button
Video / Audio
  • Graphics controller & VGA support via ASPEED AST2600 BMC
  • Realtek ALC1220P Surround Sound HD Audio CODEC on-board

Network
  • Dual 10-Gigabyte LAN ports
  • Single Realtek 1Gb Ethernet (Dedicated LAN for IPMI)
  • ASUS LANGuard
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 6 x PCI-E 5.0 (x16) slots
  • 1 x PCI-E 5.0 (x8) in (x16) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • ATX High-Efficiency Power Supply
  • Tested to comply with FCC Standards
  • Certifications: CE, CCC
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
