26-Inch deep

The T26BCX3DE Tower Server delivers exceptional performance with Dual Intel® Xeon® Scalable processors, supporting both 4th and 5th Gen for maximum flexibility and future-proofing. Designed for demanding enterprise environments, this tower server features 6 PCIe 5.0 slots and supports up to 192TB of storage with 8 hot-swap bays, making it ideal for data analytics, virtualization, and database applications. Built for reliability, the T26BCX3DE includes a redundant power supply, whisper-quiet cooling (<27dB), and advanced monitoring for CPU temperature, fan speed, and system voltages. With support for up to 4TB DDR5 memory, this tower server ensures outstanding performance for your mission-critical tasks.

CPU

8 - 32 Cores
Dual Xeon Scalable

Memory

32 - 1024 GB

Storage

8 x 3.5 Hot-Swap

LAN

2 x 1GbE

PCI-e

6 x PCI-e

Chassis

Full Tower Enclosure
Dimensions: 25.5" (D) x 7" (W) x 17.8" (H)
Metal thickness: 1.2 mm
2 x Front USB 3.0 ports
Whisper-Quiet (<27dB)
2 x 8cm (2800 rpm) PWM Fans
1 x 9cm (2400 rpm) PWM Fans
Front HDD Door Lock / Side Panel Intrusion Switch

Processor/Chipset

Dual Socket LGA-4677 (Socket E)
Supports 4th Gen Intel® Xeon® Scalable processors
Intel® C741 chipset

BIOS

AMI 32MB AMI UEFI
ACPI 6.4
SMBIOS 2.8/3.5
UEFI 2.8A
Plug and Play (PnP)
PCI FW 3.2

Memory

16 x DDR5 DIMM sockets
Supports up to 4TB
DDR5 4800/4400/4000MHz ECC RDIMM (3DS)

Storage / IPMI

2 x SATA 6Gb/s ports
8 x SATA 6Gb/s via SlimSAS x8 Connector
Intel® C741 controller on-board
Chassis supports up to eight drives
IPMI 2.0 on-board (ASPEED AST2600 BMC)
2 x M.2 NVMe 2280

Drive Bays

HD1-8 Bay: Hot-swap SATA/ SSD Bays
Up to 192 Terabyte of storage can be supported
3 x 5.25-inch Peripheral Bay

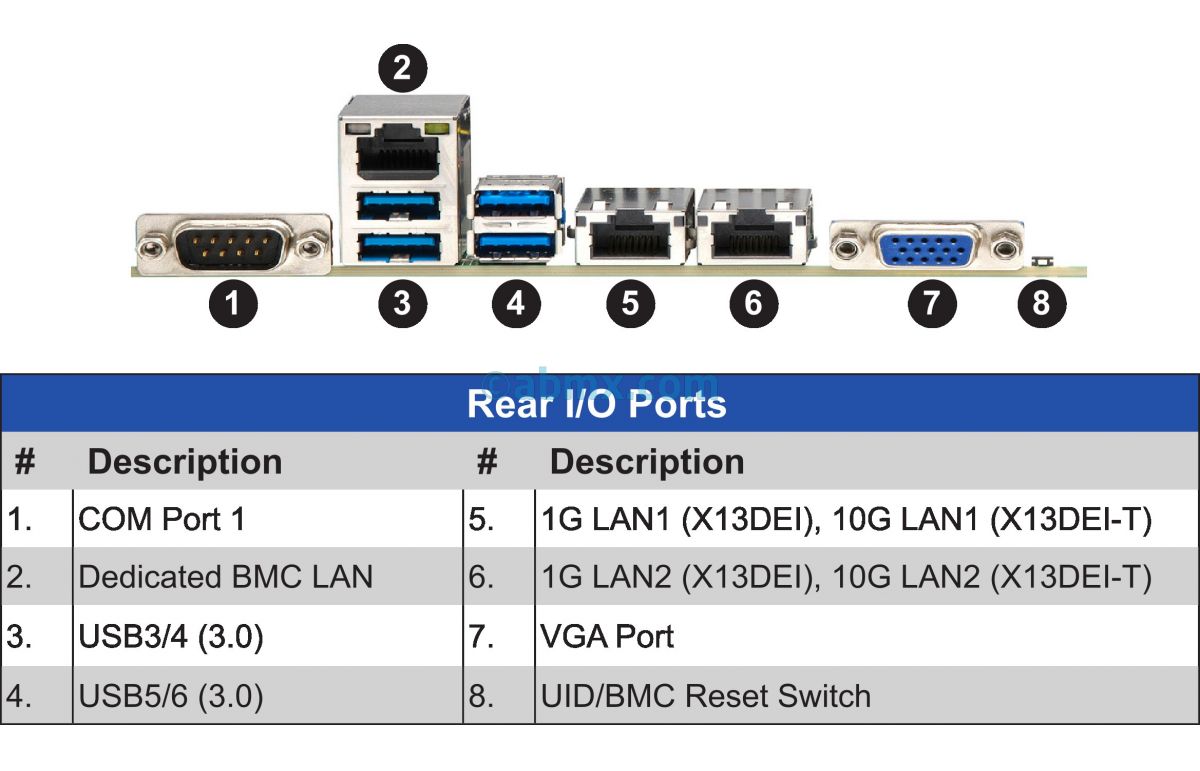

I/O ports

2 x RJ45 Gigabit Ethernet LAN ports, OR
2 x RJ45 10 Gigabit Ethernet LAN ports (OPTIONAL)
1 x RJ45 Dedicated IPMI LAN port
6 x USB 3 ports (4 x rear, 2 x via header)
3 x USB 2 ports (1 x Type A, 2 x via header)
1 x VGA D-Sub Connector port
2 x COM Ports (1 x header, 1 x rear)
1 x TPM header
3 x MCIO PCI-e 5.0 (x8) connector

Video

Integrated in Aspeed® AST2600

Network

Dual Gigabit LAN Ethernet Controller (Broadcom BCM5720), OR
Dual 10GBase-T LAN Ethernet Controller (Broadcom BCM57416) - OPTIONAL

Hardware Monitor

CPU/System Fan Speed
CPU Temperature
System Voltage Vcore,+3.3V,+5V,+12V

Expansion

2 x PCI-e 5.0 (x8) slots
4 x PCI-e 5.0 (x16) slots

Power Consumption/Acoustic noise emission

Dependent upon hardware configuration.
Please contact our tech support at 714-258-2269 for further details.

Power Supply

Redundant AC HE Power Supply
Tested to comply with FCC Standards
Certifications: BSMI, CCC, CE/EMC, UL/CB

CD-ROM /DVD-ROM

5.25-inch Optical Drive (OPTIONAL)

Rack Support

Not Supported

OS Compatibility

Please call our tech support at 714-258-2269 for details

Warranty

3 years Parts* and Labor Standard
* Batteries are subject to DOA only and are NOT subject for replacement or return
Extended Warranties Available

Motherboard X13DEI

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
