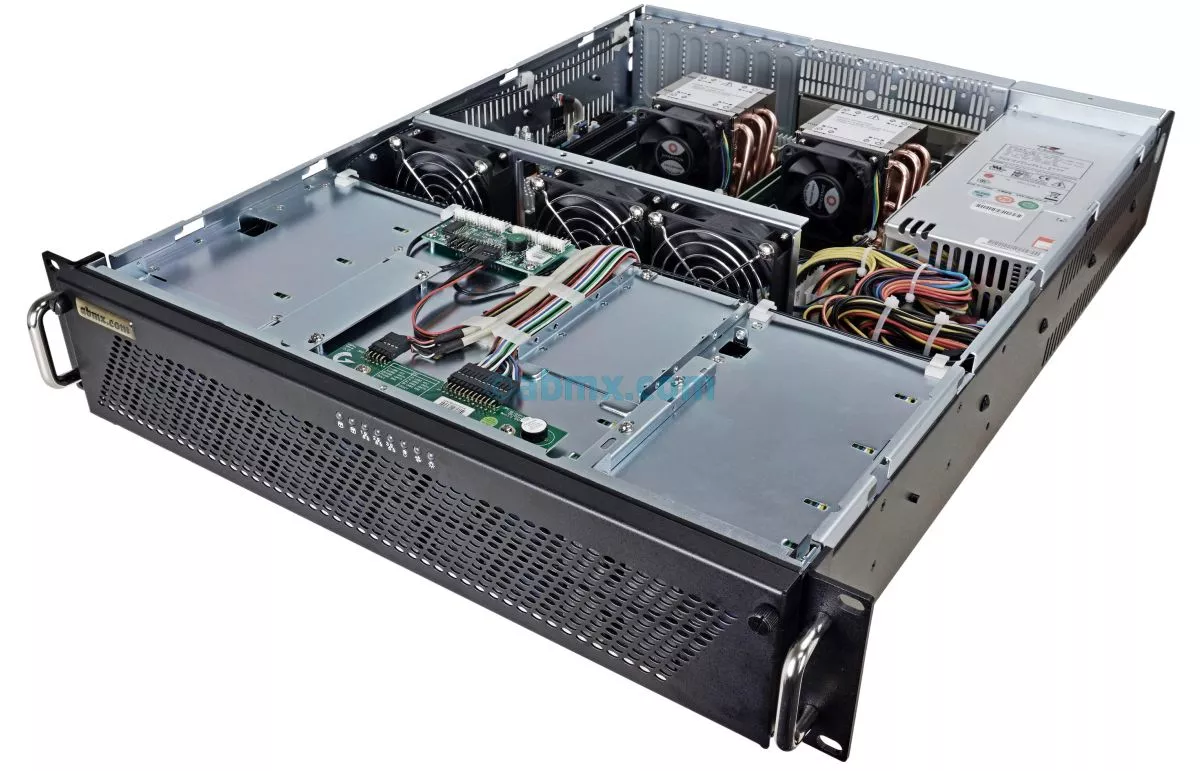

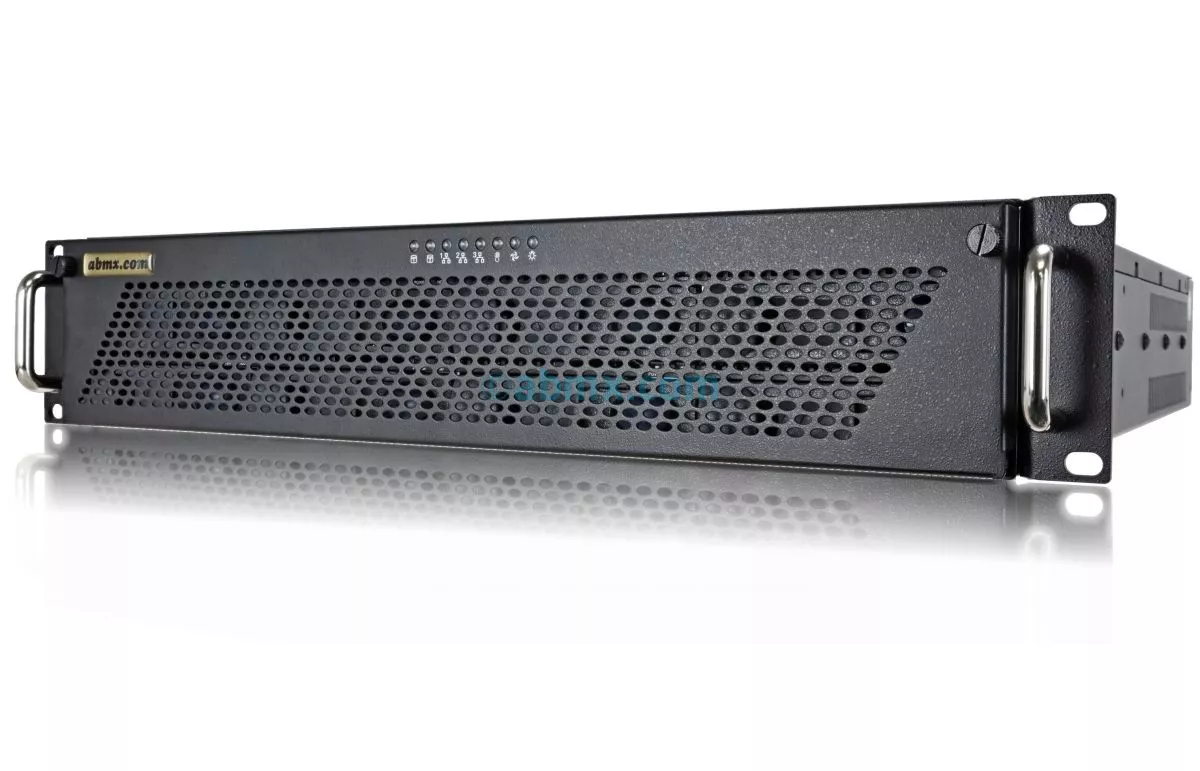

2U Server - Dual Xeon Scalable - 8 x Hot-Swap Bays

Model: 222VD2L6

This 2U Rackmount Server is built with dual 3rd Gen Intel Xeon Scalable processors, offering up to 80 cores. It supports up to 2TB of DDR4 ECC memory, ensuring ample capacity for memory-intensive tasks. The server provides 8 hot-swap 3.5-inch bays, along with 4 PCIe 4.0 x16 slots for expansion, making it ideal for enterprise applications like virtualization, data analytics, and storage-intensive workloads. The 22-inch depth allows for easy integration into dense rack environments, while dual 1GbE LAN ports ensure stable connectivity.

Key Features
  • Front USB
  • Redundant Power (optional)
  • 48v DC Power (optional)
  • 22-Inch deep
Recommended Uses

8 - 26 Cores
Dual Xeon Scalable

32 - 1024 GB

8 x 3.5 Hot-Swap

2 x 1GbE

4 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Special Order

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

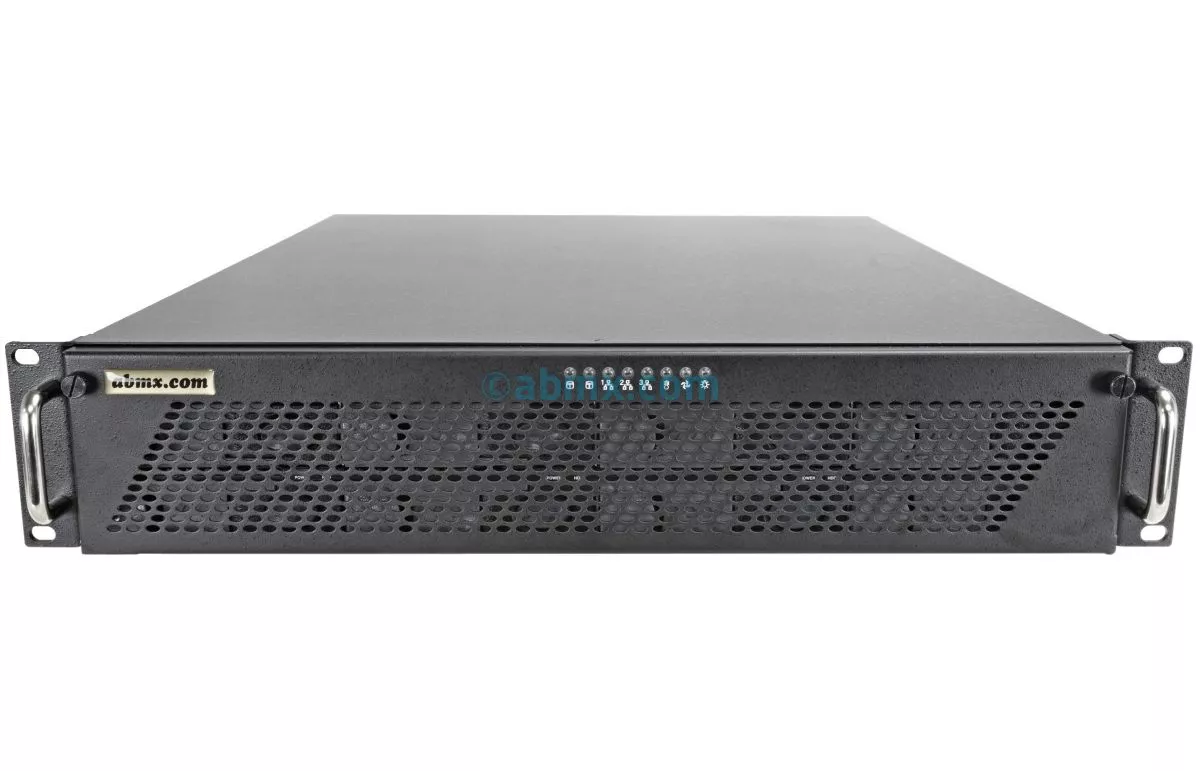

  • 2U Rackmountable Enclosure (LOW-PROFILE)
  • 1 Rack Unit Height (3.5")

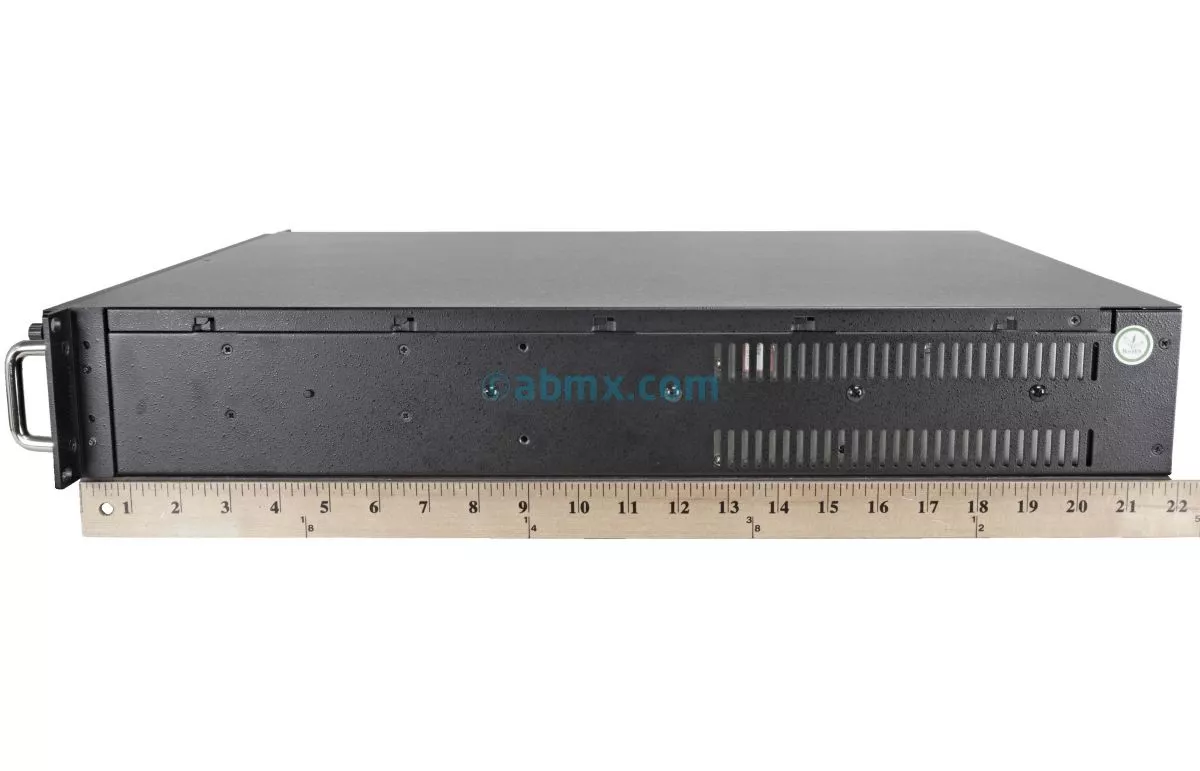

  • Dimensions: 22.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Single Door w/ 2 x Thumbscrews (Removable)
  • Front: 2 x USB Ports

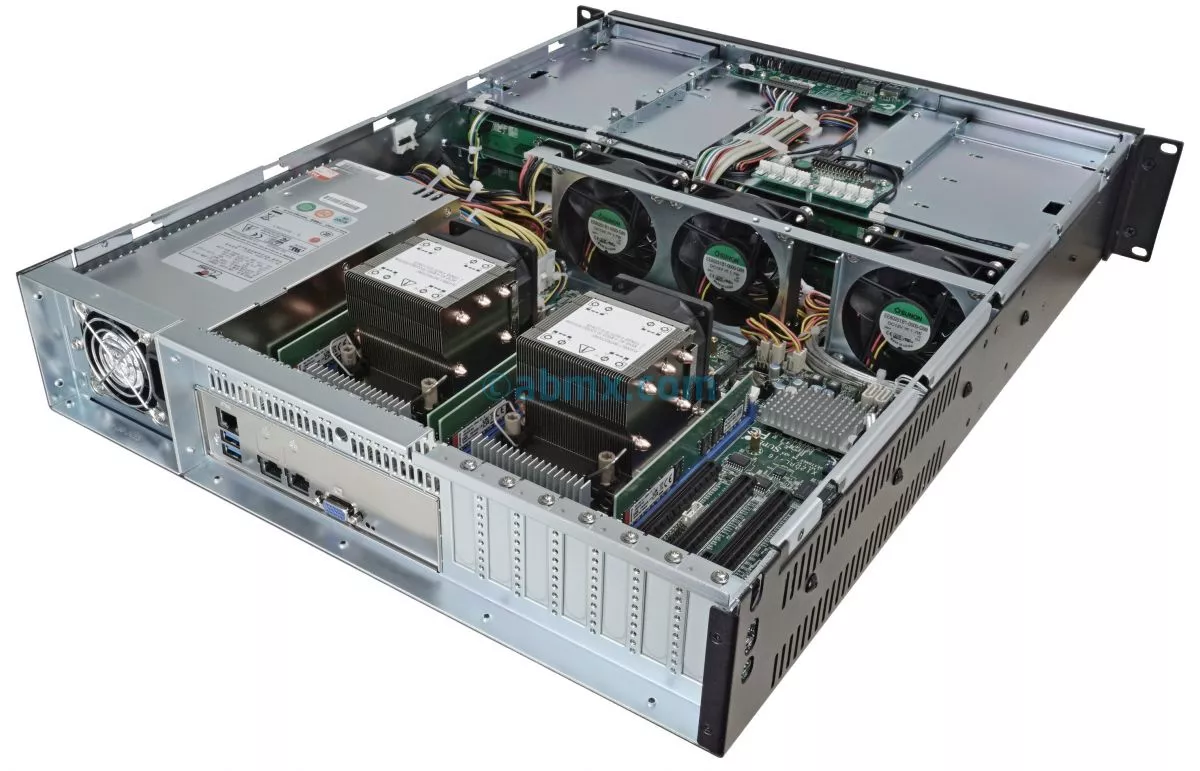

Processor/Chipset
  • Dual Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933MHz ECC 3DS, LRDIMM, RDIMM
Storage / IPMI
  • 12 x SATA3 (6Gbps) ports
  • Intel® C621A controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to eight drives
  • 2 x M.2 NVMe 2280/22110

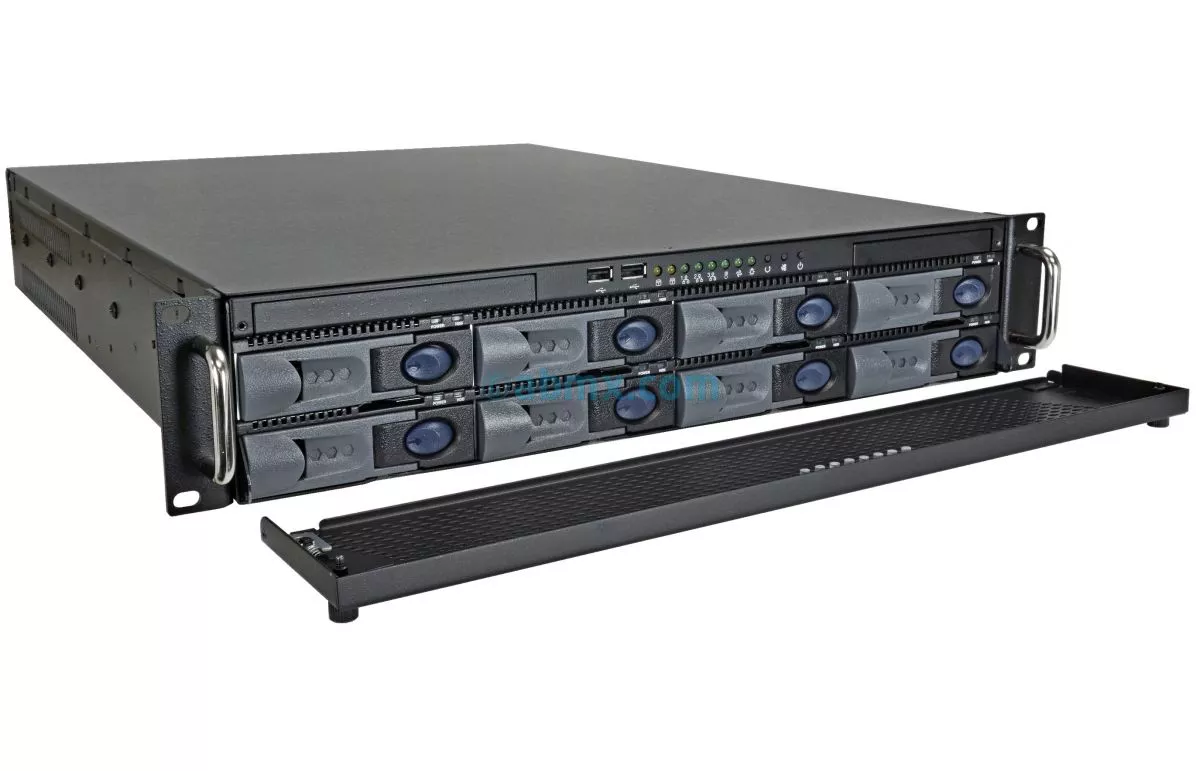

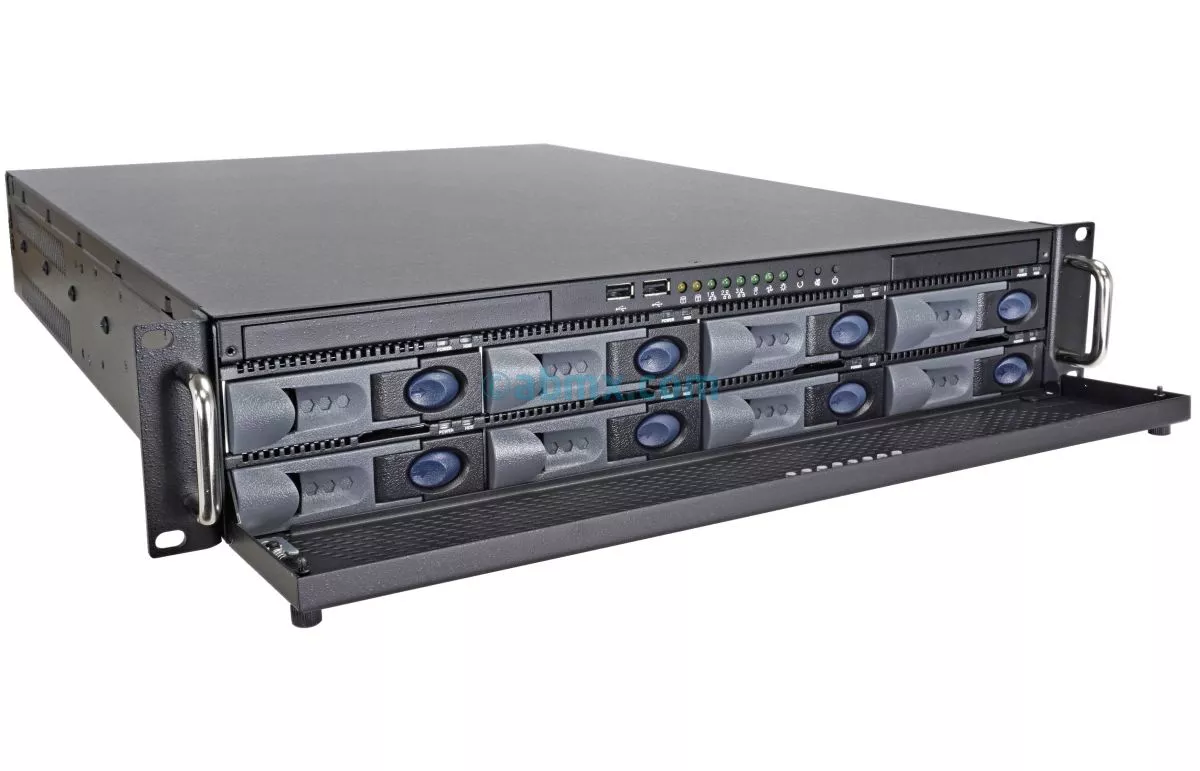

Drive Bays
  • HD1-8 Bay: Hot-swap 3.5/2.5-inch Drive Bays
  • Up to 192 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

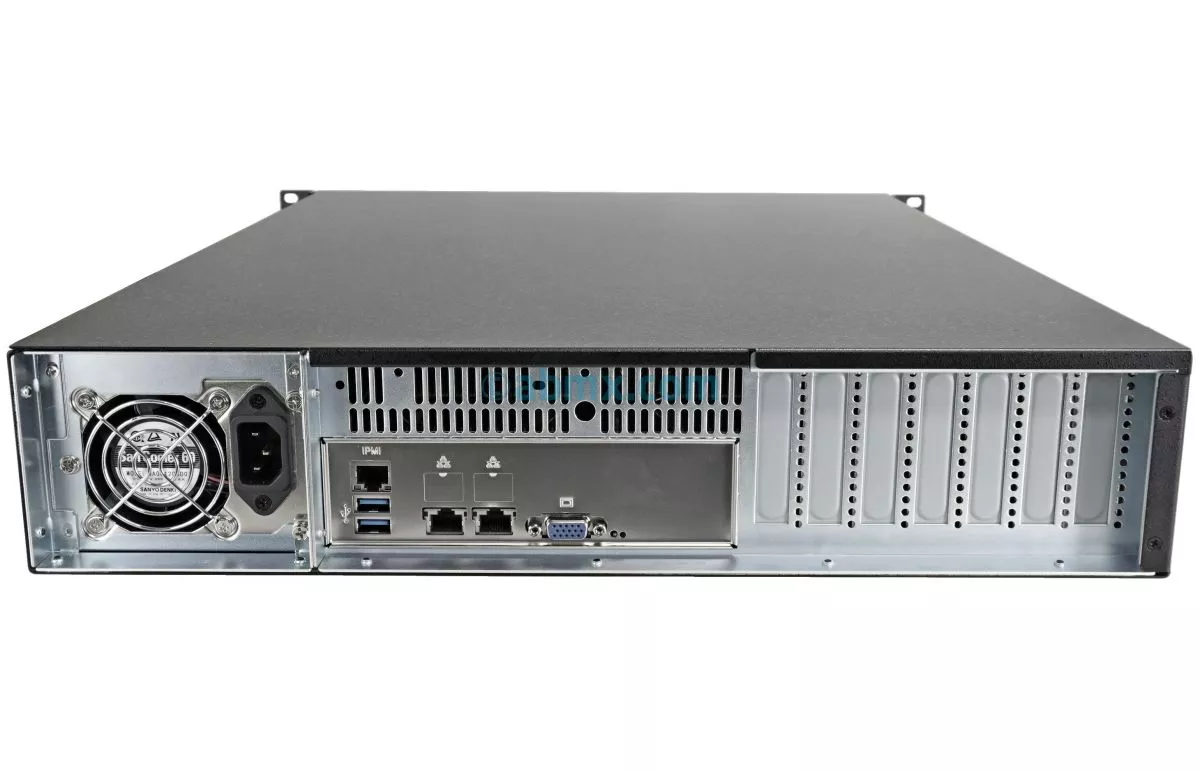

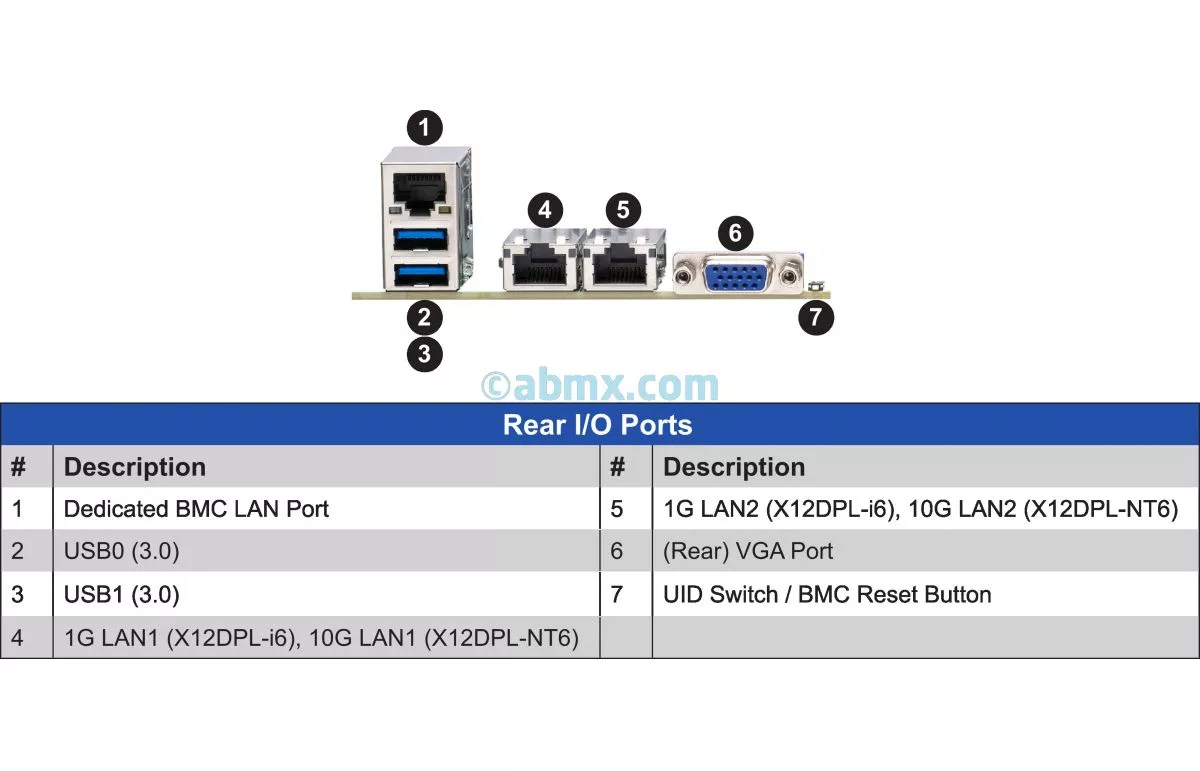

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 4 x PCI-e 4.0 (x16) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: BSMI, CCC
  • DC or Redundant Power supply (OPTIONAL)
CD-ROM /DVD-ROM
  • Slim-line Optical Drive is OPTIONAL
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12DPL-i6

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
