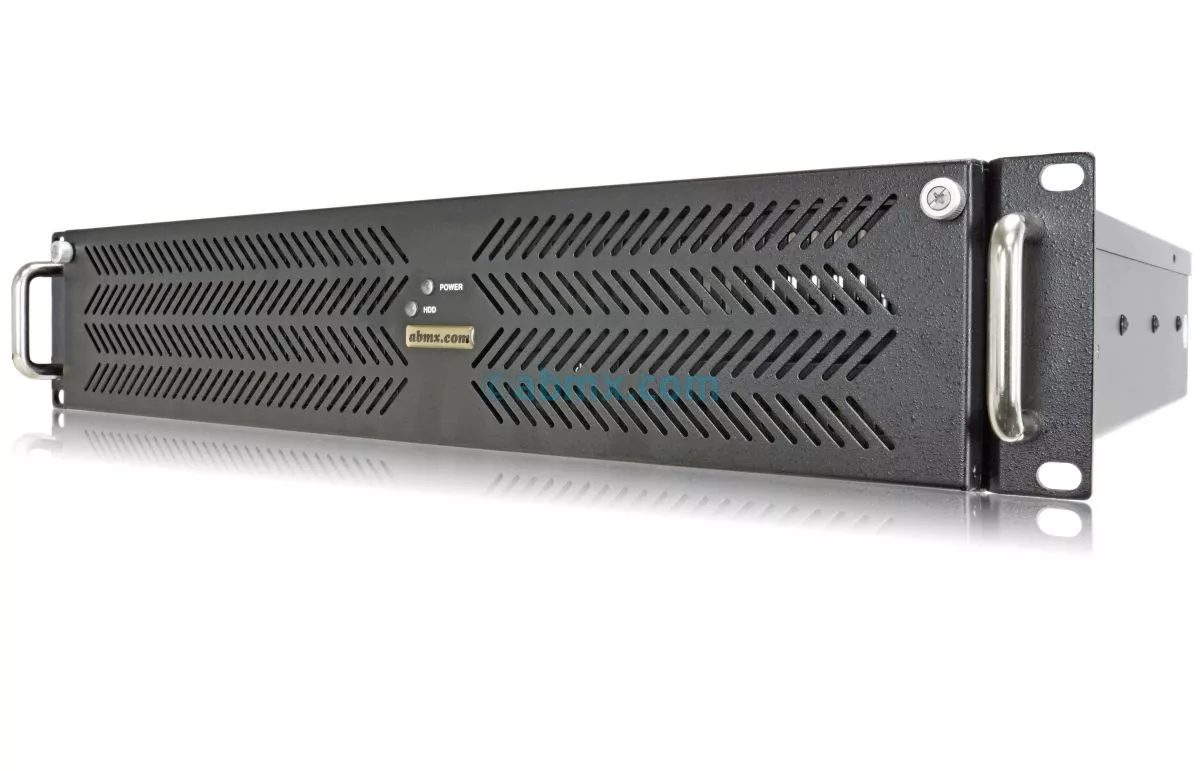

2U Short-Depth Server - AMD EPYC

Model: 218LPAS2L

This 2U Short-Depth Server is an impressive system that offers unparelleled compute power in a short-depth format. AMD is making a big comeback into the server market with their powerful EPYC server processor line. These cost effective, high core-count CPU's are perfect for large parallel workloads. With up to 64-cores / 128-threads in a single 18" deep 2U server, and support for a full-height PCI expansion card, or up to 7 low-profile cards; this system offers a very flexible high density compute, deep learning, and AI solution in a small footprint.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • 5.25" Drive Bay
  • 18-Inch deep

8 - 64 Cores
AMD EPYC

8 - 512 GB

3 x 3.5 Fixed

2 x 1GbE

7 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Special Order

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

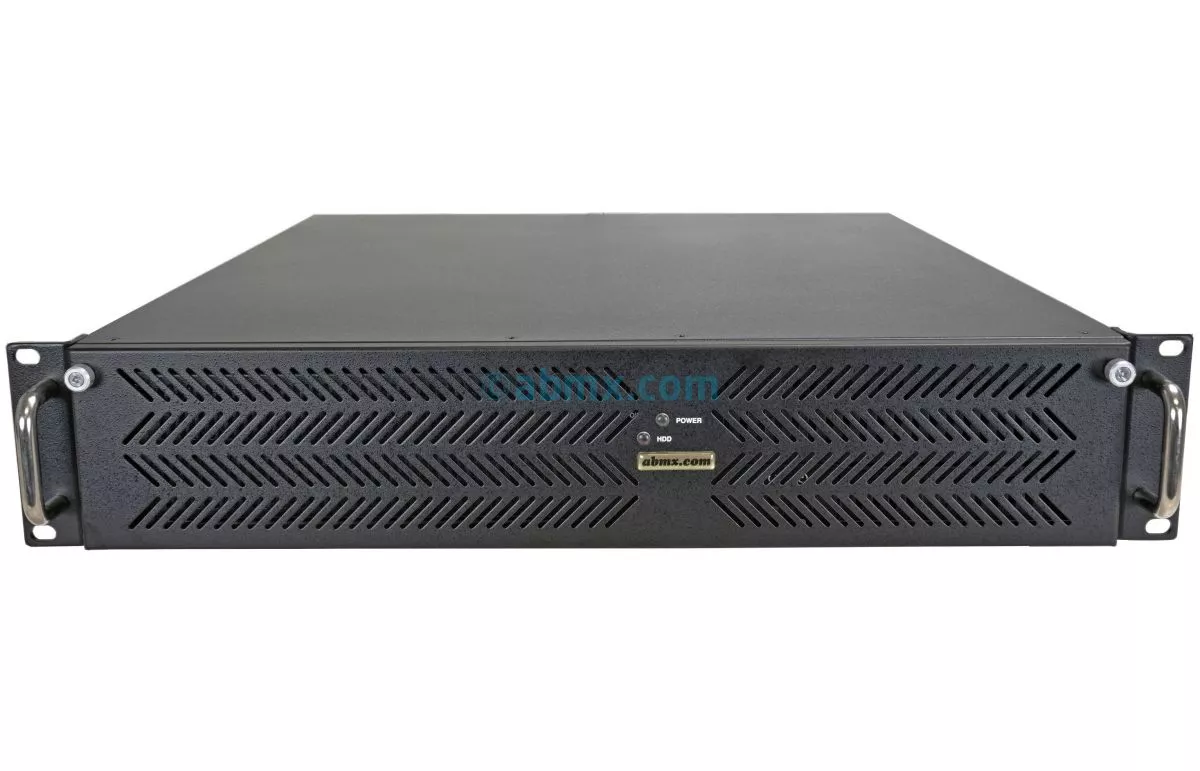

Chassis
  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

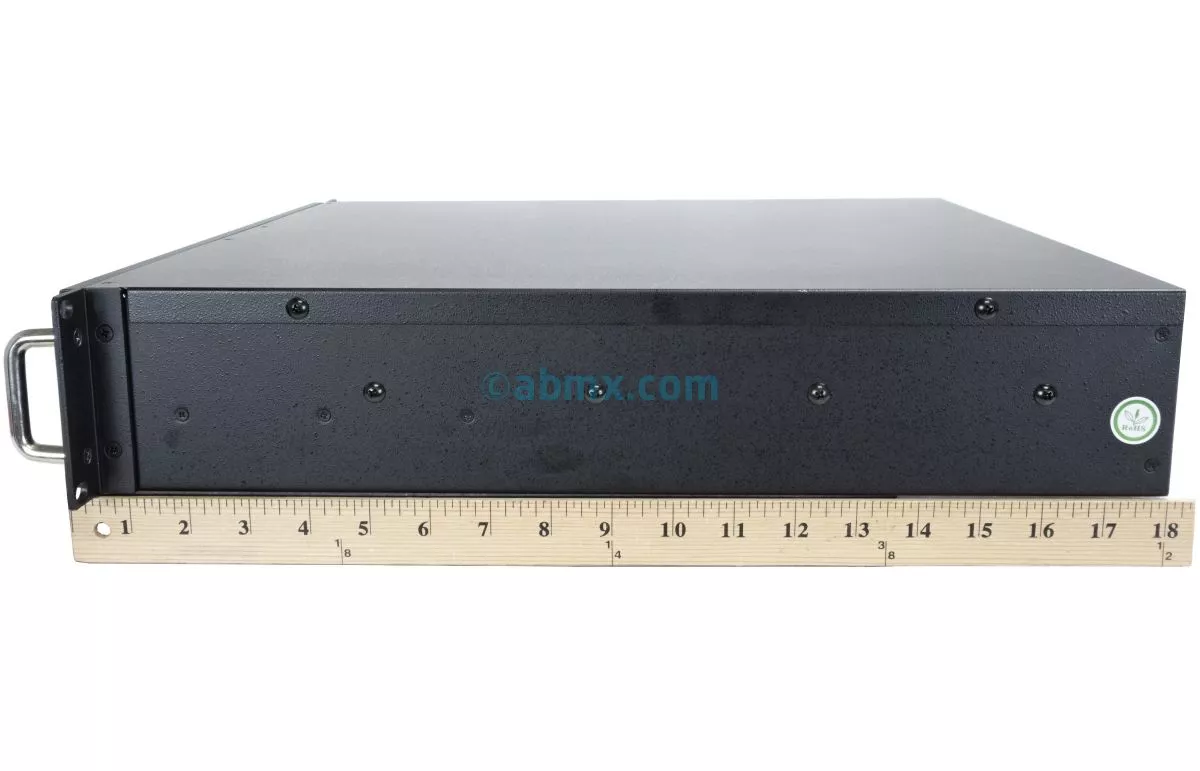

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Door: Single Door with 2 Thumbscrews
  • Air Filter: Inside Front Panel (Washable)
  • Front: 2 x USB Ports
Processor/Chipset
  • Single Socket SP3
  • Supports Single AMD EPYC™ 7003/7002-series Processor
  • Chipset: System on Chip
BIOS
  • AMI 256Mb SPI Flash EEPROM
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Memory
  • 8 x 288-pin DDR4 DIMM sockets
  • Supports up to 2TB
  • 3200MHz ECC Registered DDR4 DRAM
  • 8-channel memory bus
Storage / IPMI
  • 8 x SATA3 (6 Gbps) ports
  • 8 x SATA3 or 2 x NVMe via single SlimSAS x8 (SATA/NVMe Hybrid)
  • Chassis supports up to three drives
  • IPMI 2.0 support (ASPEED AST2500 BMC)
  • 2 x M.2 NVMe (2280, 22110)
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drive
  • Up to 66 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay

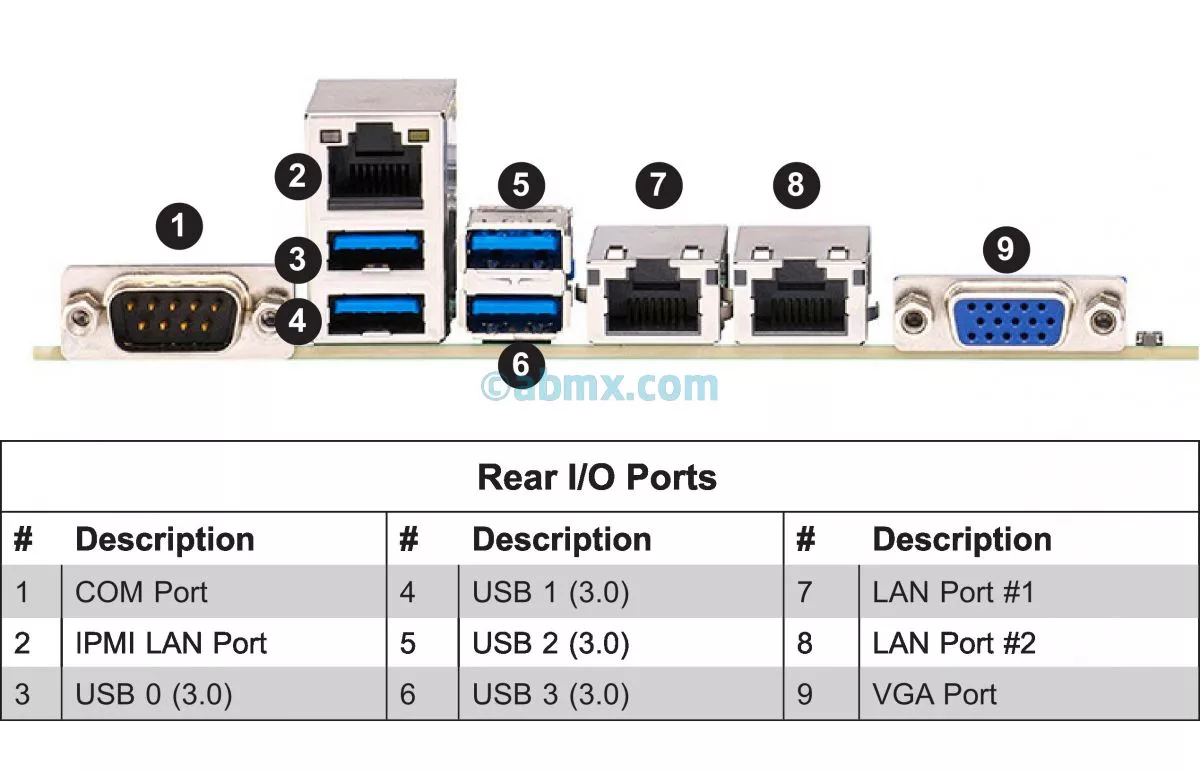

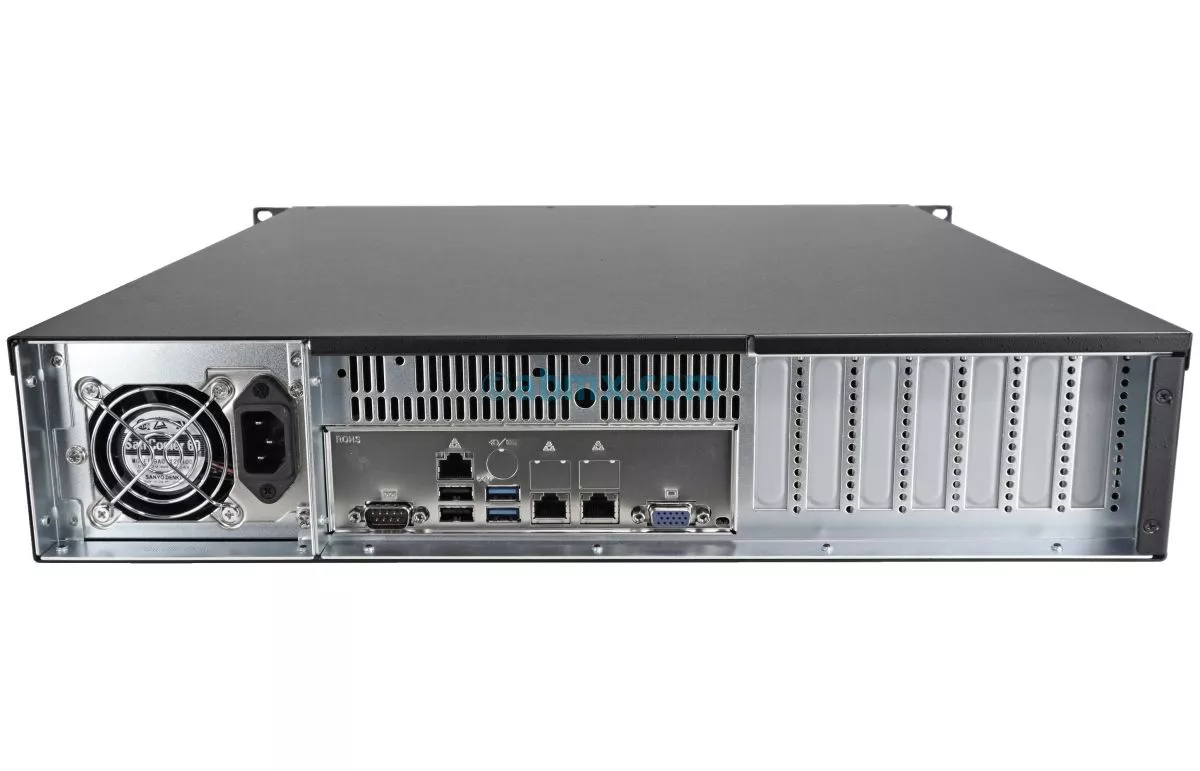

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 6 x USB 3.0 ports (4 x rear + 2 x via header)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 2 x SATA DOM power connectors
  • 1 x TPM 2.0 header
Video
  • ASPEED AST2500 BMC on-board

Network
  • Dual Gigabit Ethernet LAN Controller (Broadcom BCM5720)
  • 1 x Realtek RTL8211F PHY (dedicated IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 5 x PCI-e 4.0 (x16) slot
  • 2 x PCI-e 4.0 (x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, CB, CCC, CE, TUV
  • Redundant or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard H12SSL-i
