4U Short-Depth Server - 4 x PCI 5V

Model: 420AS137

The 420AS137 is a highly unique and flexible server, combining multiple PCIe and PCI 5V slots for both modern and legacy expansion devices. This system comes equipped with four PCI 5V slots, one PCIe x16 slot, one PCIe x4 slot, and a PCIe x1 slot for a total of 7 expansion slots. This 4U Short-Depth Server features Intel's latest Intel Core processors for up to 20 powerful cores, and 96GB of DDR5 memory for unparalleled performance, and is the perfect solution for unique projects that require legacy devices with modern hardware.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 5.25" Drive Bay
  • 20-Inch deep
  • 4 x PCI 5V Slots
  • TPM 2.0
Recommended Uses

4 - 24 Cores
Core i9, i7, i5
i3, Pentium, Celeron

8 - 64 GB

3 x 3.5 Fixed

2 x 1GbE

1 x PCI-e
4 x PCI 32-bit

Chassis

Motherboard

Special Order - LT 1-2 weeks

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

PCIe Expansion Slot

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Front USB/COM port

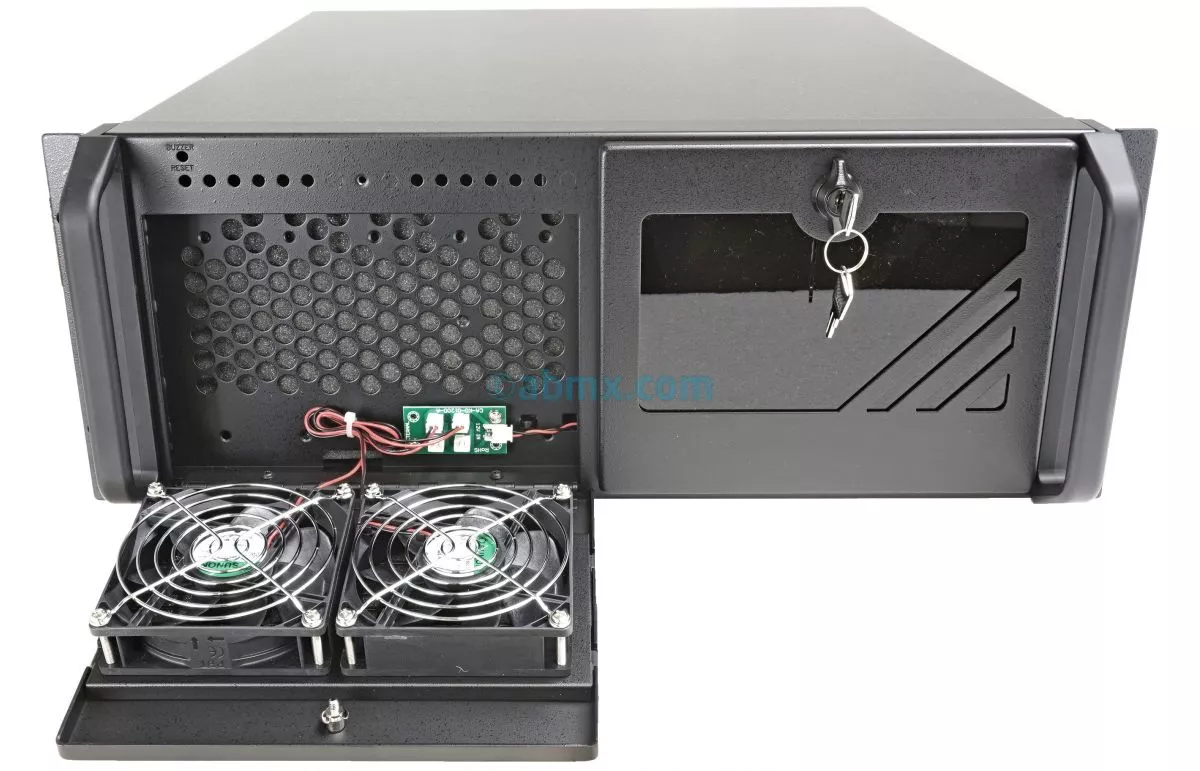

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

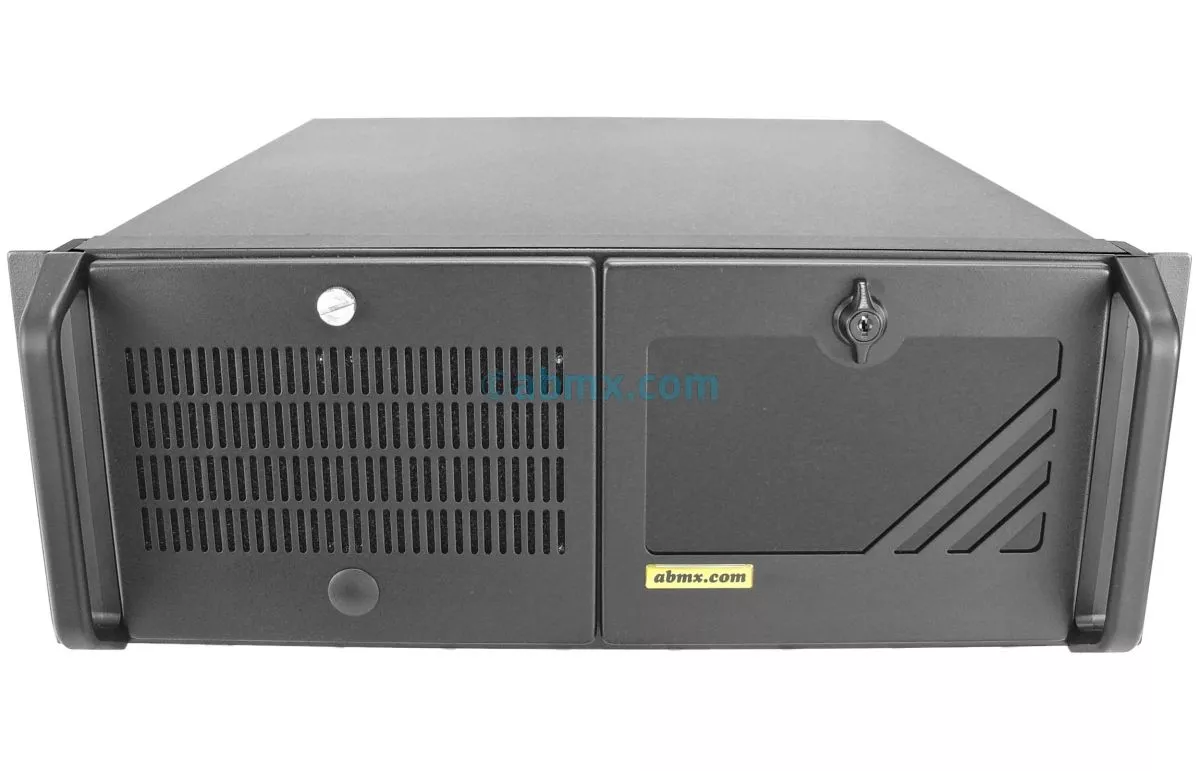

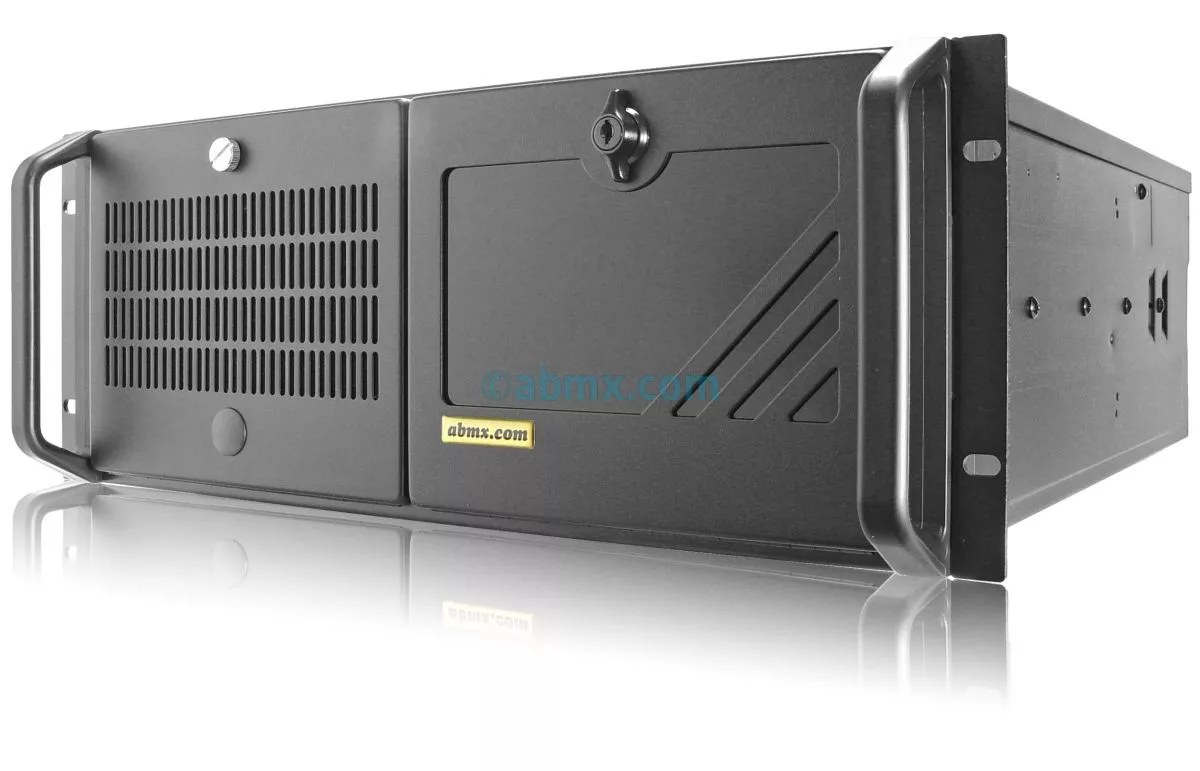

  • 4U 20-inch deep Short Rack Mountable Enclosure
  • Rack Unit Height: 7"

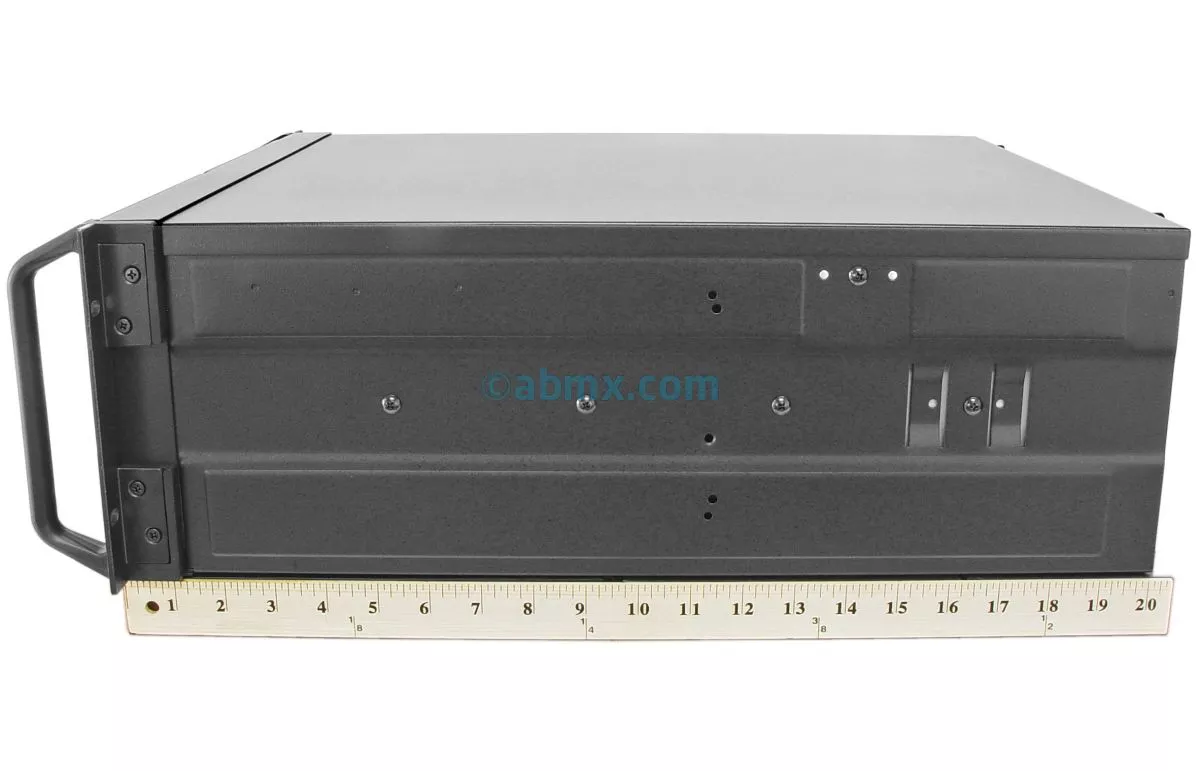

  • Dimensions: 20.1" (D) x 19" (W) x 7" (H)
  • Metal thickness: 1.2 mm
  • Front USB: 2 x Ports
  • Single Door with 1 x Thumbscrew
Processor/Chipset
  • Single Socket LGA-1700
  • Supports Intel 14th/13th/12th Gen. Core Processors
  • Intel® H610 Chipset
BIOS
  • AMI SPI 256 Mbit
Memory
  • 2 x 288-pin DDR5 DIMM sockets
  • Supports up to 96GB non-ECC UDIMM (48GB per DIMM)
  • 4800/5600 MHz
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Chassis supports up to six drives
  • 1 x M.2 (Key M, 3042/2260/2280/22110) with PCIe Gen3 x 1
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Hard Drive
  • Up to 72 Terabyte of storage can be supported
  • 2 x 5.25-inch Peripheral Bay

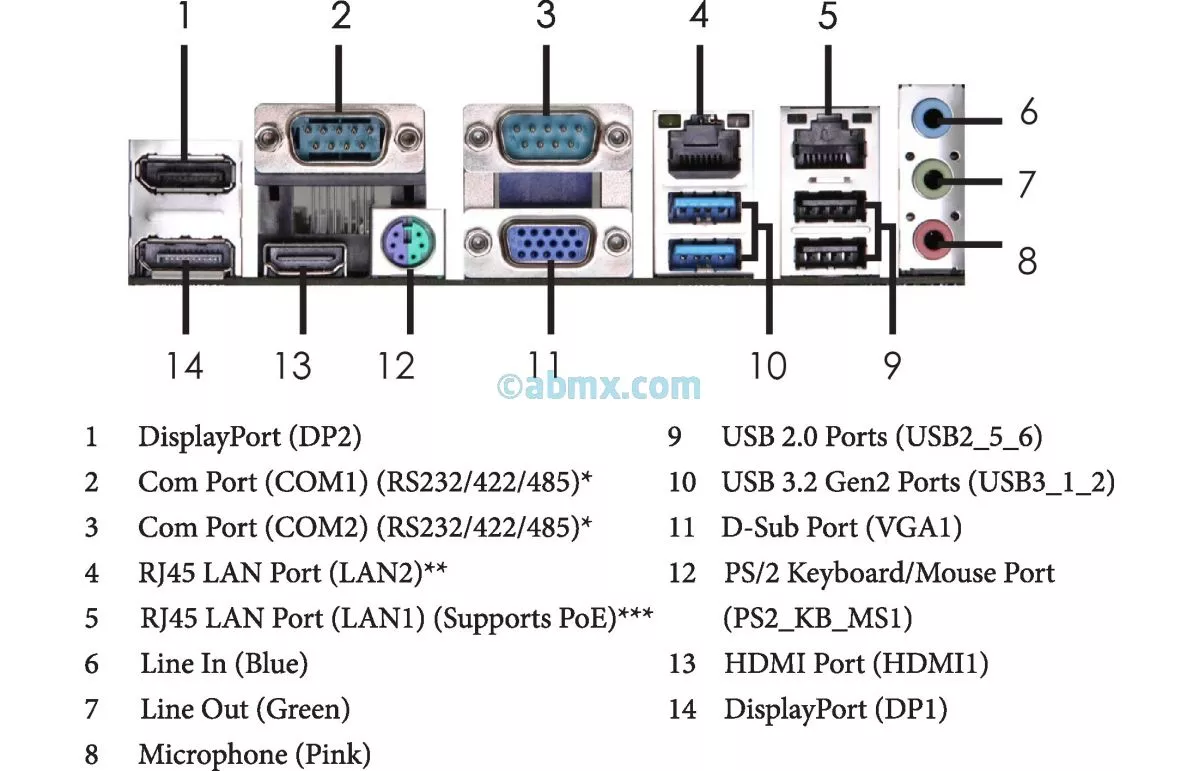

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 2 x USB 3.2 Gen.2 ports
  • 2 x USB 3.2 Gen.1 ports
  • 5 x USB 2.0 ports
  • 1 x VGA port
  • 1 x HDMI 2.0b port
  • 2 x DP (DisplayPort) ports
  • 2 x COM Ports
  • TPM 2.0 onboard
Video / Audio
  • Intel® UHD Graphics on-board
  • HDMI 2.0b (Max resolution up to 4096x2160@60Hz)
  • DisplayPort 1.4a, DP++ (Max resolution up to 4096x2160@60Hz)
  • VGA (Max resolution up to 1920 x 1200@60Hz)
  • Realtek ALC897 HD Audio on-board (Line-In, Line-Out, Mic-In)

Network
  • 1 x Gigabit LAN (Intel® I219V)
  • 1 x 2.5 Gigabit LAN (Realtek® RTL8125BG) with PoE function
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 slot
  • 1 x PCI-e 3.0 x4 slot
  • 1 x PCI-e 3.0 x1 slot
  • 4 x PCI 32bit 5V slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • AC HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: CE, CCC
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard IMB-1713

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
