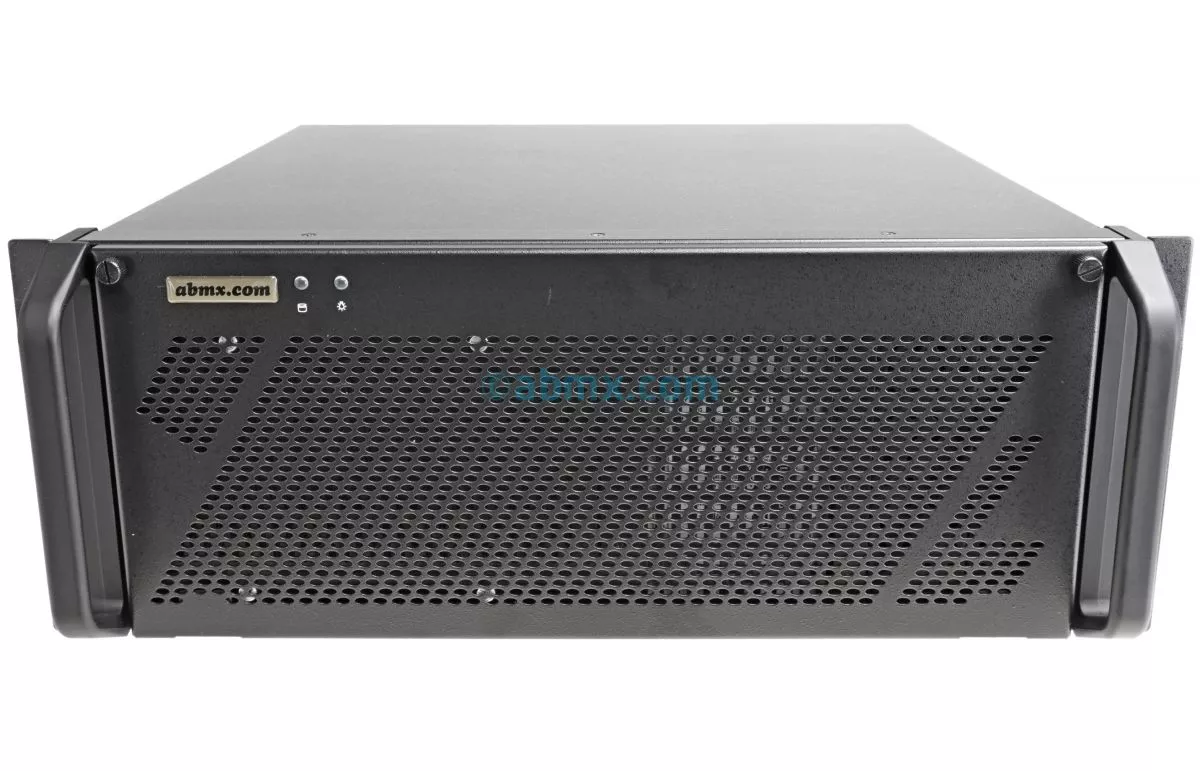

4U Server - Ultra Short Depth (12-inch deep)

Model: 412S11M

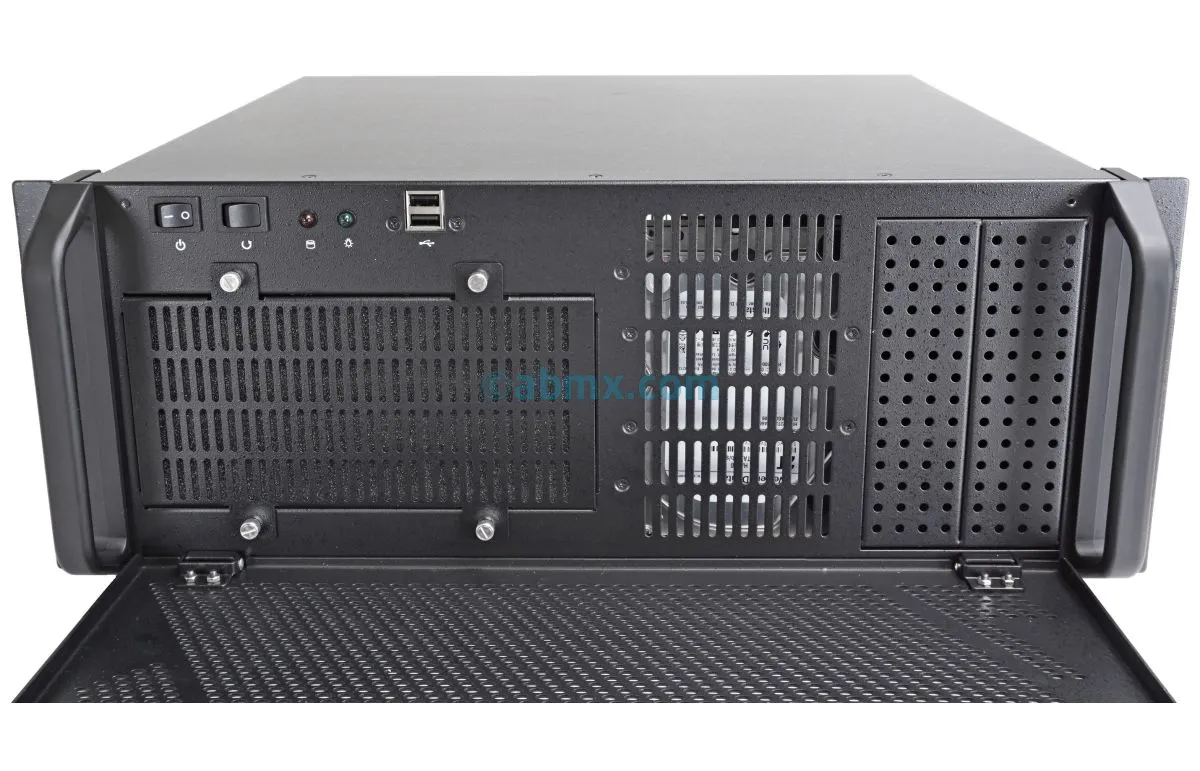

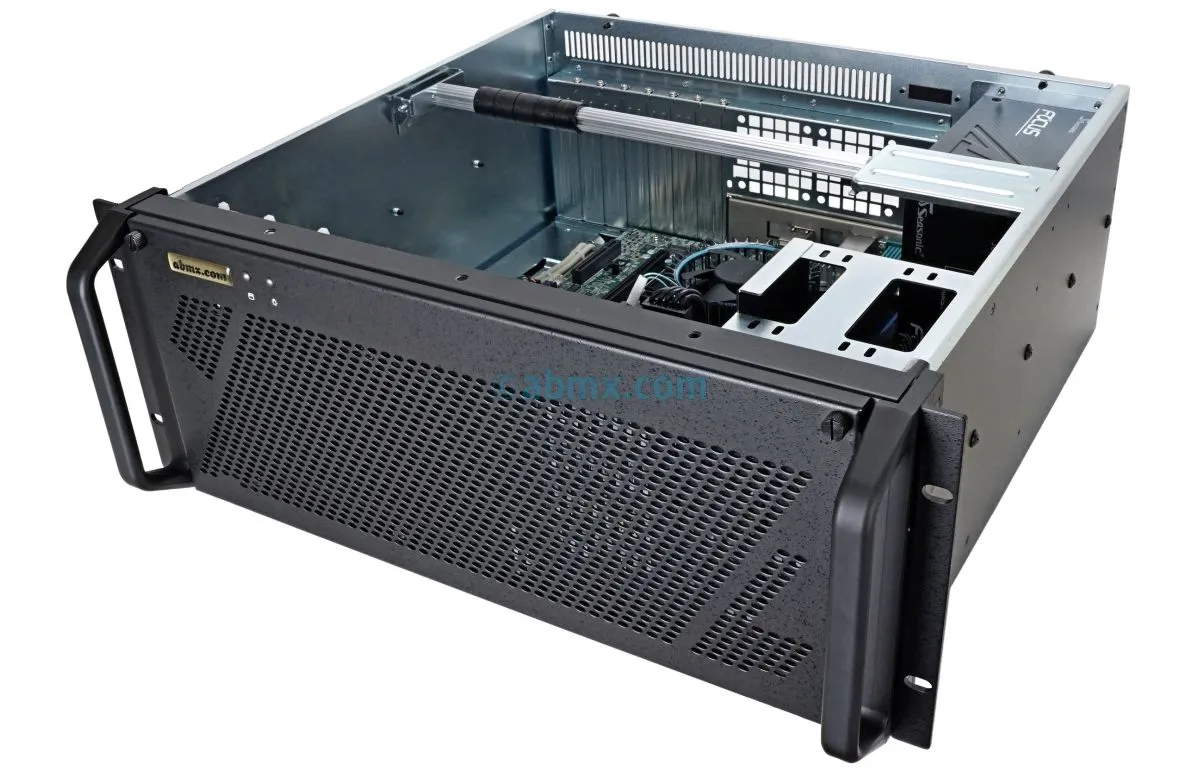

At only 12” deep, the 412S11M is the shortest 4U that ABMX offers. This server is a prime choice for projects that have extreme depth limitations and require full-height PCI-e cards. This chassis features two 5.25" bays on the front of the chassis suitable for optical drives, tape drives, or CRU bays.

Key Features
  • Short Depth
  • 5.25" Drive Bay
  • LTS Life Cycle
Recommended Uses

2 - 4 Cores
Xeon E3
i3, Pentium, Celeron

4 - 64 GB

4 x 2.5 Fixed

2 x 1GbE

4 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Seagate® Enterprise, 2.5-inch - SAS HDD
Seagate® Enterprise, 2.5-inch - SATA HDD
Samsung 860 EVO - SATA SSD
Samsung 870 EVO - SATA SSD
Samsung 860 PRO - SATA SSD
Samsung 870 QVO - SATA SSD
Intel® D3-S4510 Enterprise - SATA SSD
Intel® D3-S4610 Enterprise - SATA SSD

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

PCIe Expansion Slot 1

PCIe Expansion Slot 2

PCIe Expansion Slot 3

Additional Network Adapter

Remote Management Card (KVM/Media-over-LAN)

Trusted Platform Module (TPM)

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

VMware
Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 4U Short-depth Rack Mountable Enclosure
  • Rack Unit Height: 7.0-inch

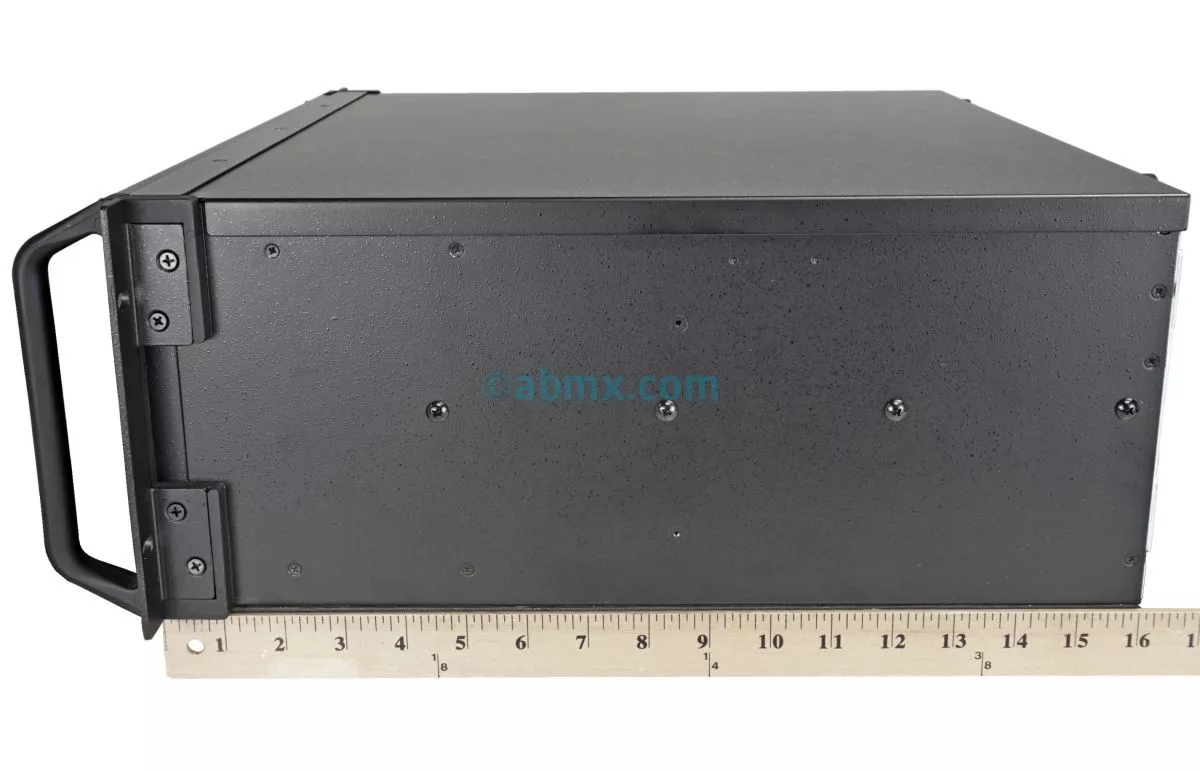

  • Dimensions: 11.9" (D) x 19" (W) x 7.0" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket H4 (LGA 1151)
  • Supports Intel Xeon E3-1200 v5, Intel 6th Gen Core i3/i5/i7, Intel Pentium,Intel Celeron processors
  • Intel C236 chipset
BIOS
  • 128Mb SPI Flash EEPROM with AMI BIOS
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR4 DIMM slots
  • Up to 64GB
  • 2133/1866/1600MHz ECC DDR4 SDRAM
Storage / IPMI
  • 8 x SATA3 (6Gbps) ports
  • Chassis supports up to four hard drives
  • Support for IPMI 2.0 (OPTIONAL)
Drive Bays
  • HD1-4 Bay: fixed 2.5-inch SATA/SSD Hard Drive
  • Up to 6.4 Terabyte of storage can be supported
  • 2 x 5.25-inch Bay

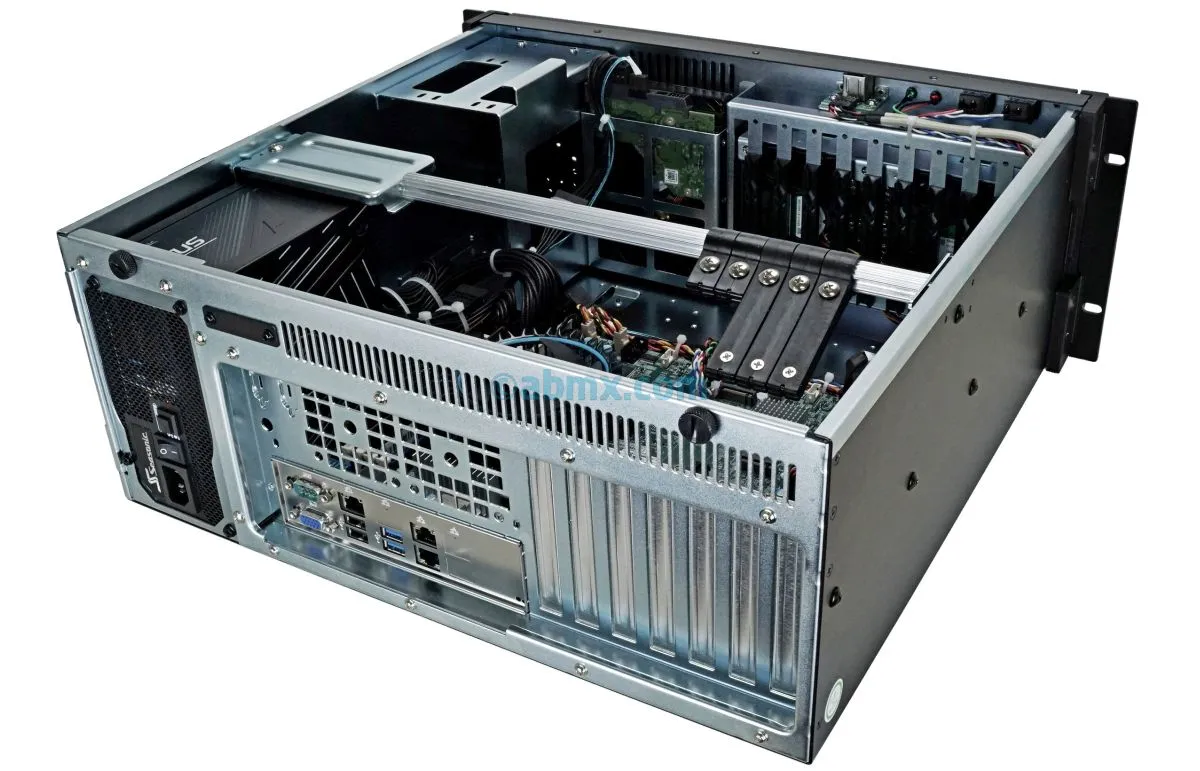

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 5 x USB 3.0 ports (2 x rear + 2 x via header + 1 x Type A)
  • 6 x USB 2.0 ports (2 x rear + 4 x via headers)
  • 1 x VGA port
  • 1 x Serial Port (1 x header)
  • 2 x COM ports (1 x rear, 1 x header)
  • 2 x SuperDOM (Disk on Module) ports with built-in power
  • 1 x TPM 1.2 20-pin Header
Video
  • ASPEED AST1400 BMC graphics on-board

Network
  • Dual Intel I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-E 3.0 x8 (in x16) slot
  • 1 x PCI-E 3.0 x8 slot
  • 2 x PCI-E 3.0 x4 (in x8) slot
Power Consumption/Acoustic noise emission
  • Between 58 W to 74 W with the standard configuration
  • Noise level (during normal operation): ~ 60 dBA (ISO 7779 operator position 0.6 meter).
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: CUL, TUV, CB, CCC, CE, C-tick
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive (OPTIONAL)
Rack Support
  • Rack Mounting Rails and Kit (OPTIONAL)
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X11SSM OverallChipset
Intel C236 		LAN
Intel i210-AT		USB
Intel C236		Video
ASPEED AST1400
VMWare ESXi 7.0
AsteriskNOW 10.13
CentOS 5.0
6.0
6.10
7.0
7.6
8.0
Citrix Xenserver 6.5
7.0
ClearOS Community Edition 7.4
7.5
7.7
Debian 10.10
10.2
10.7
8.0
9.0
9.11
9.6
9.8
Elastix 5.0
Fedora Server 25
26
27
29
32
Fedora Workstation 25
26
27
29
32
33
FreeBSD 10.0
11.0
11.2
12
12.1
12.2
13
9.0
FreeNAS 11.0
11.2
11.3
9.0
FreePBX 14
15
SNG7-1805-1
IPFire 2.21
Linux Mint 19.1
19.2
20
Manjaro Linux 18.0.4
20.2
MX Linux 18.2
Open Media Vault 4.1.3
OpenBSD 5.0
6.0
6.4
6.8
6.9
OpenIndiana Hipster 2018.04
2018.10
OpenSUSE Leap 15
OpenSUSE Tumbleweed
OPNsense 19.1
Oracle Linux 7
7.6
PFSense 2.3
2.4
2.5.2
Proxmox VE 5.3-2
7.0
Red Hat Enterprise Linux 5.0
6.0
7.6
8.1
Sangoma Linux (FreePBX) 7
Scientific Linux 5.0
6.0
7.0
7.6
Sophos UTM Firewall 9
SUSE Enterprise Server 11
12
SUSE Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
TrueNAS 12.0
Ubuntu Desktop 14.04 LTS
16.04 LTS
Ubuntu Desktop 16.04.2 LTS
Ubuntu Desktop 16.04.6 LTS
18.04.4 LTS
20.04 LTS
Ubuntu Server 14.04 LTS
16.04 LTS
16.04.5 LTS
16.04.6 LTS
18.04.4 LTS
20.04 LTS
unRAID 6.6.7
Untangle NG Firewall 12
13
14.1
14.1.1
VMWare ESXi 5.0
5.5
6.0
6.5
6.7
VyOS 1.2
Windows 10
7
Windows Server 2008 R2
Windows Server 2012 R2
2016
2019
Xenserver 7.6
XigmaNAS (formerly NAS4Free) 11.2.0.4

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
