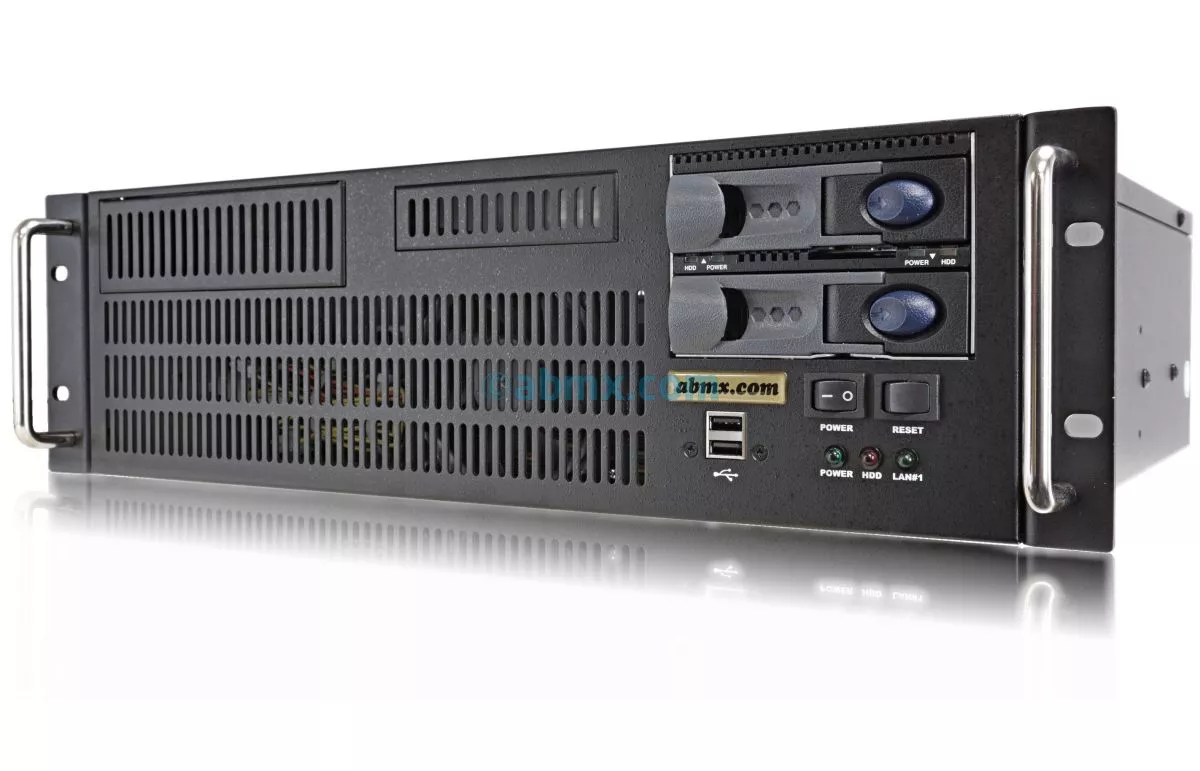

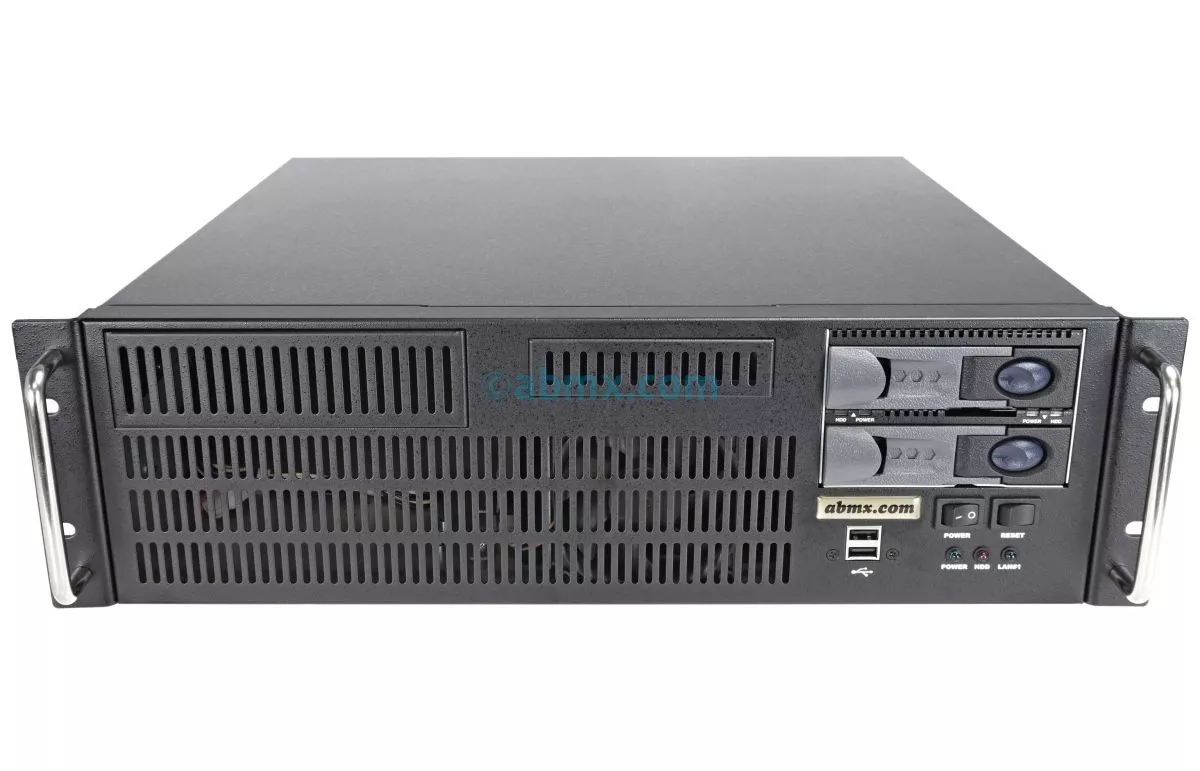

3U Workstation - 2 x Hot-Swap Bays

This 3U Rackmount Workstation features Intel's latest 14th Generation Core processors.  With up to 24-core / 32-threads and up to 128GB of DDR5 RAM, this system is more than capable of multi-tasking. With two hot-swap bays, this system is perfect for projects that require easy access to storage, as well as full-height PCIe cards all while conserving rack space.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 5.25" Drive Bay
  • 16-Inch deep
Related Tags
Samsung 980
Samsung 970 PRO
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class
NVIDIA Turing
NVIDIA Ampere
Special Order
Microsoft®

Tech Specs

Chassis
  • 3U Short-depth Rack Mountable Enclosure
  • Rack Unit Height: 5.2-inch

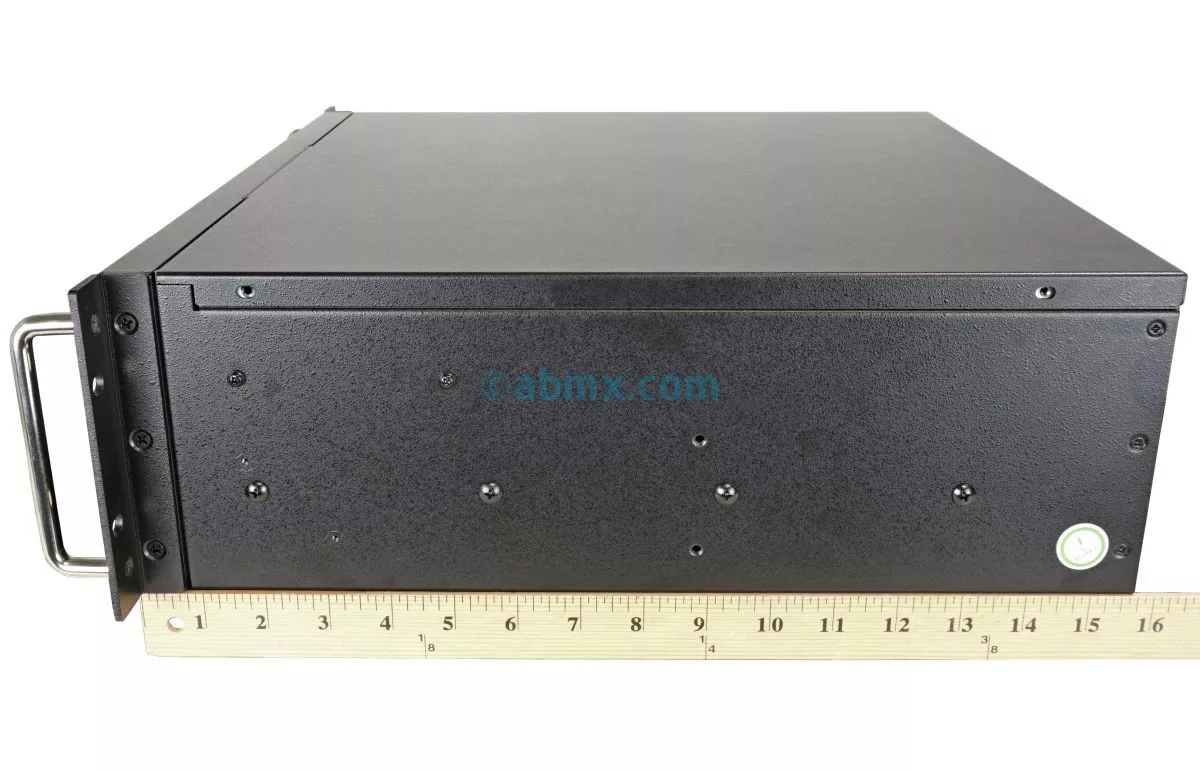

  • Dimensions: 15.7" (D) x 19" (W) x 5.2" (H)
  • Metal thickness: 1.2 mm
  • Front: 2 x USB Ports
Processor/Chipset
  • Single Socket LGA-1700
  • Supports 13th /12th Gen. Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
  • Intel® R680E Chipset
BIOS
  • AMI UEFI
  • ACPI 6.1
  • SMBIOS 3.0 or later
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Memory
  • 4 x 288-pin DDR5 DIMM sockets
  • Supports up to 128GB Unbuffered ECC/non-ECC UDIMM
  • 4400/4000/3600 MT/s
Storage / IPMI
  • 4 x SATA3 (6Gbps) ports
  • Intel R680E controller on-board
  • IPMI 2.0 on-board
  • Chassis supports up to four drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays

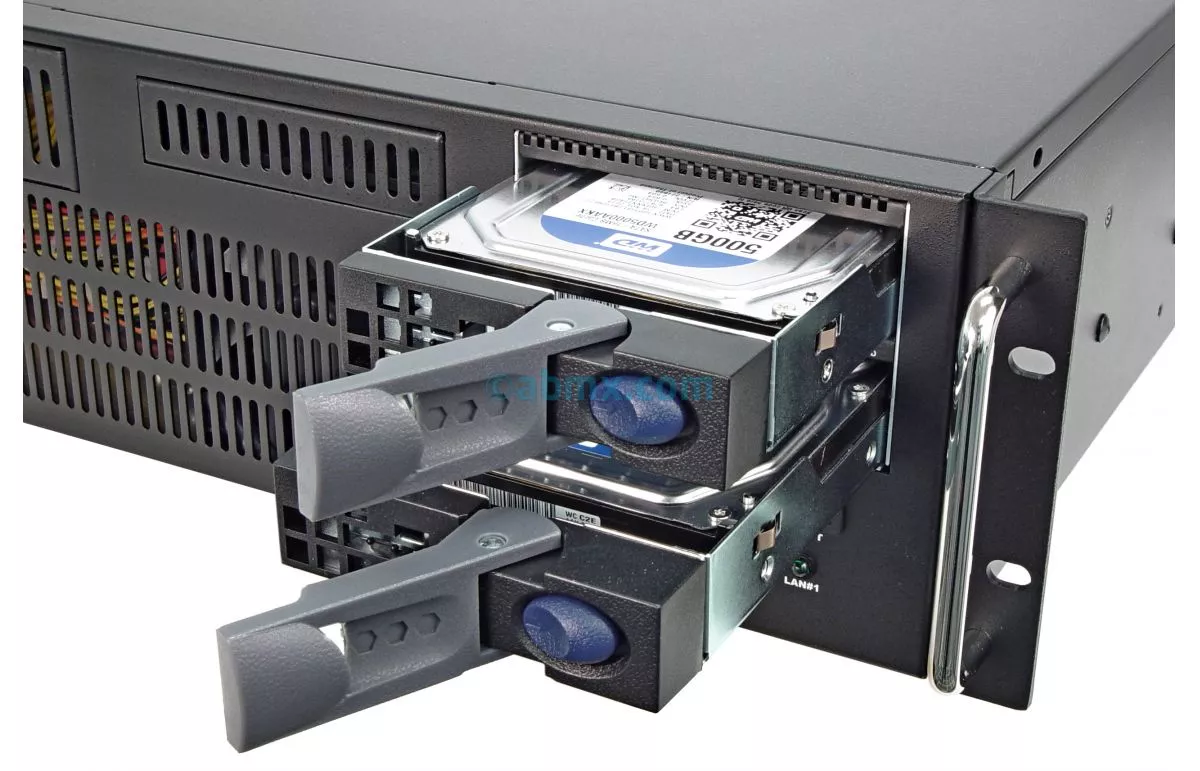

  • HD1-2 Bay: Hot-Swap SATA HDD / SSD
  • HD3-4 Bay: fixed SATA HDD /SSD
  • 1 x 5.25" Peripheral Drive Bay
  • Up to 88 Terabyte of storage can be supported

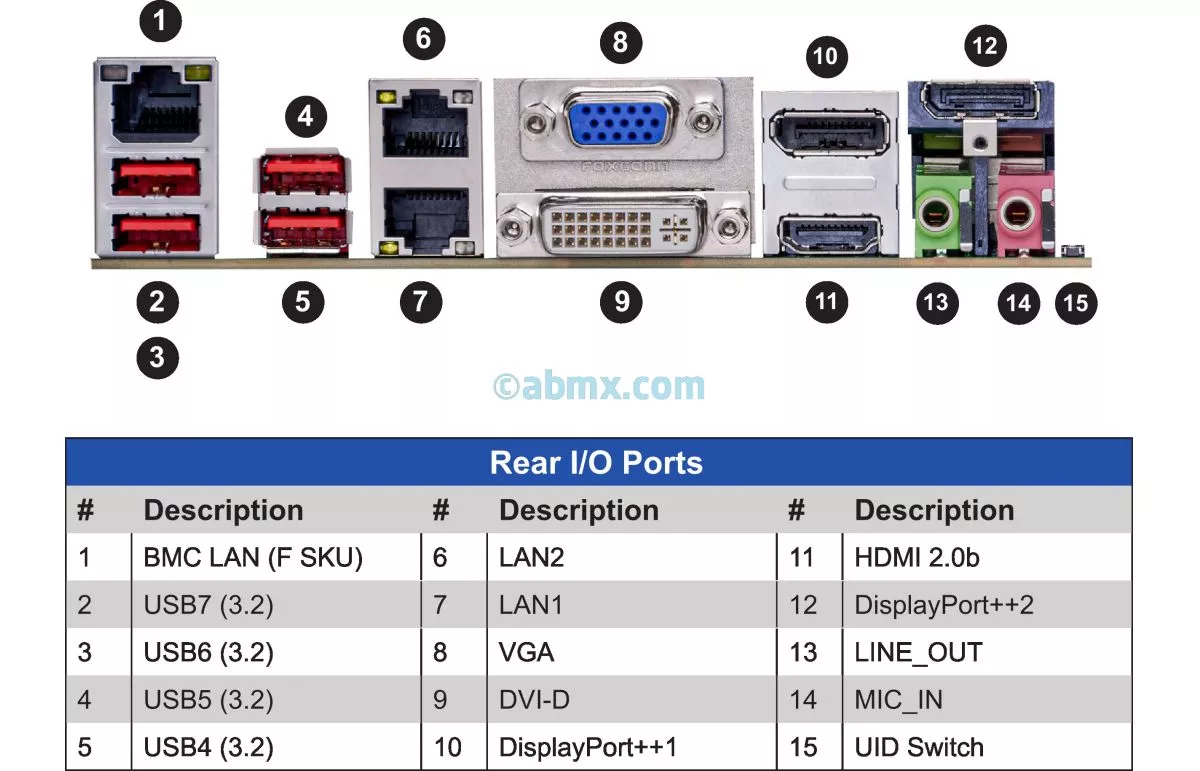

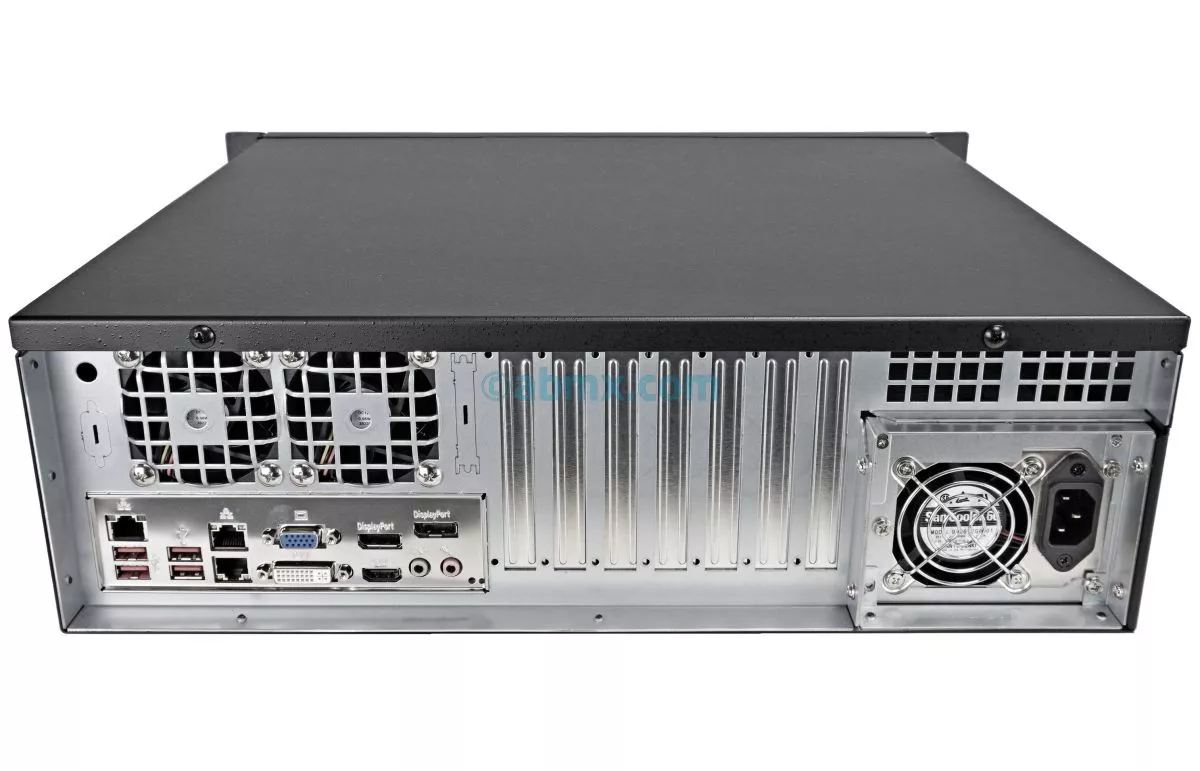

I/O ports
  • 2 x RJ45 2.5 Gigabit Ethernet LAN ports
  • 4 x USB 2.0 ports (4 x headers)
  • 6 x USB 3.2 Gen.2 ports (4 x rear type A, 2 x via header)
  • 2 x USB 3.2 Gen.1 ports (2 x via header)
  • 1 x VGA port
  • 1 x DVI - D port
  • 1 x HDMI 2.0b port
  • 2 x DP (DisplayPort) ports
  • 4 x COM Ports (2 x header RS232/422/485, 2 x header RS232)
  • TPM 2.0 onboard
Video / Audio
  • ALC 888S HD Audio on-board
  • DVI - D port, 1 HDMI 2.0b port, 2 DP (DisplayPort) ports: integrated graphics from CPU

Network
  • Dual 2.5GbE LAN (Intel® I225-LM) on-board
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 5.0 x16 slot
  • 2 x PCI-e 4.0 x4 (in x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • Redundant Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • Rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Large Image

OS Compatibility

Motherboard X13SAZ-F OverallChipset
Intel R680E		LAN
Intel i225LM		Video
ASPEED AST2600
CentOS 9
Debian 12
Fedora Server 38
41
Fedora Workstation 38
41
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
24.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
24.04 LTS
VMWare ESXi 8
Windows 10
Windows Server 2022

DISCLAIMER: We strive to provide accurate and current compatibility information. However, due to the rapidly evolving nature of technology and software, we cannot guarantee complete compatibility. The information presented here reflects only the known issues identified by our team. If you discover additional challenges or potential solutions, please let us know so we can continuously enhance this resource for everyone.
