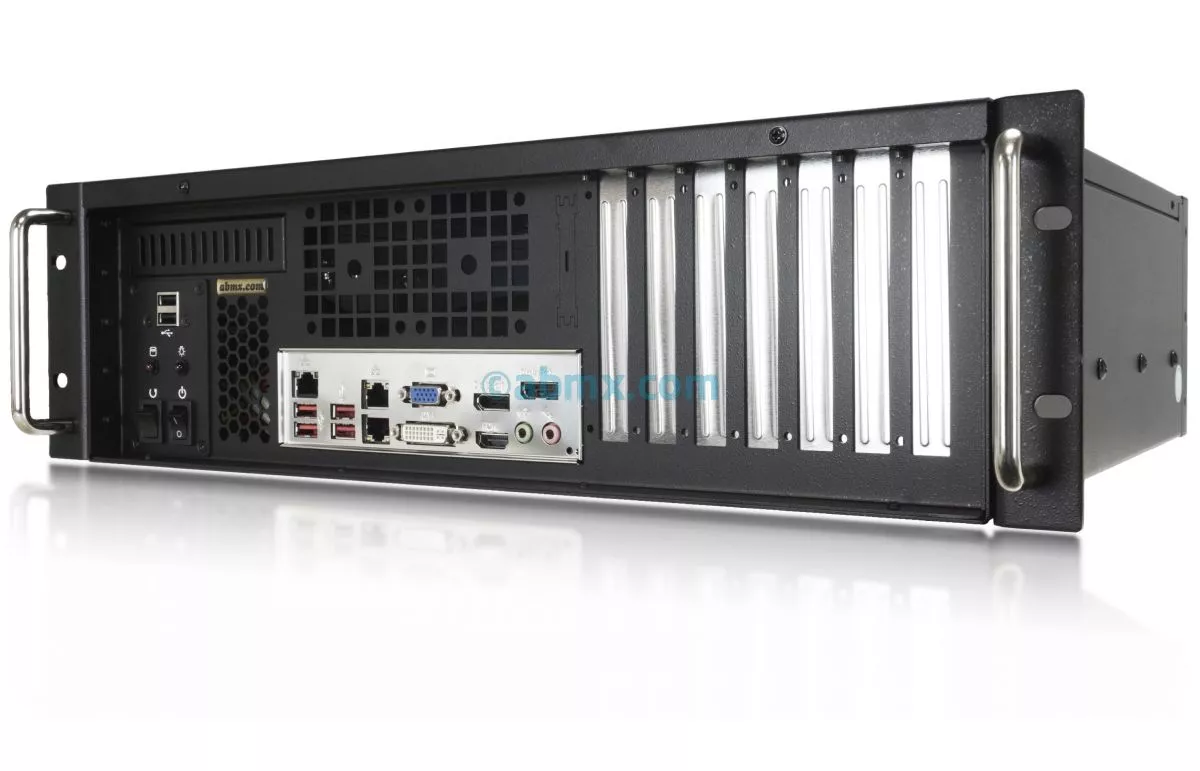

16-Inch deep

This short-depth Intel 3U front-IO Server features the latest 13th generation Intel processors. With up to 24-cores / 32-threads and up to 128GB of DDR5 RAM, this system is more than capable of multi-tasking. This system is perfect for projects that require quick and easy access to on-board and PCI-e IO ports without climbing behind a rack.

CPU

4 - 24 Cores
Core i9, i7, i5
i3, Pentium, Celeron

Memory

8 - 64 GB

Storage

1 x 3.5 Fixed
2 x 2.5 Fixed

LAN

2 x 2.5GbE

PCI-e

3 x PCI-e

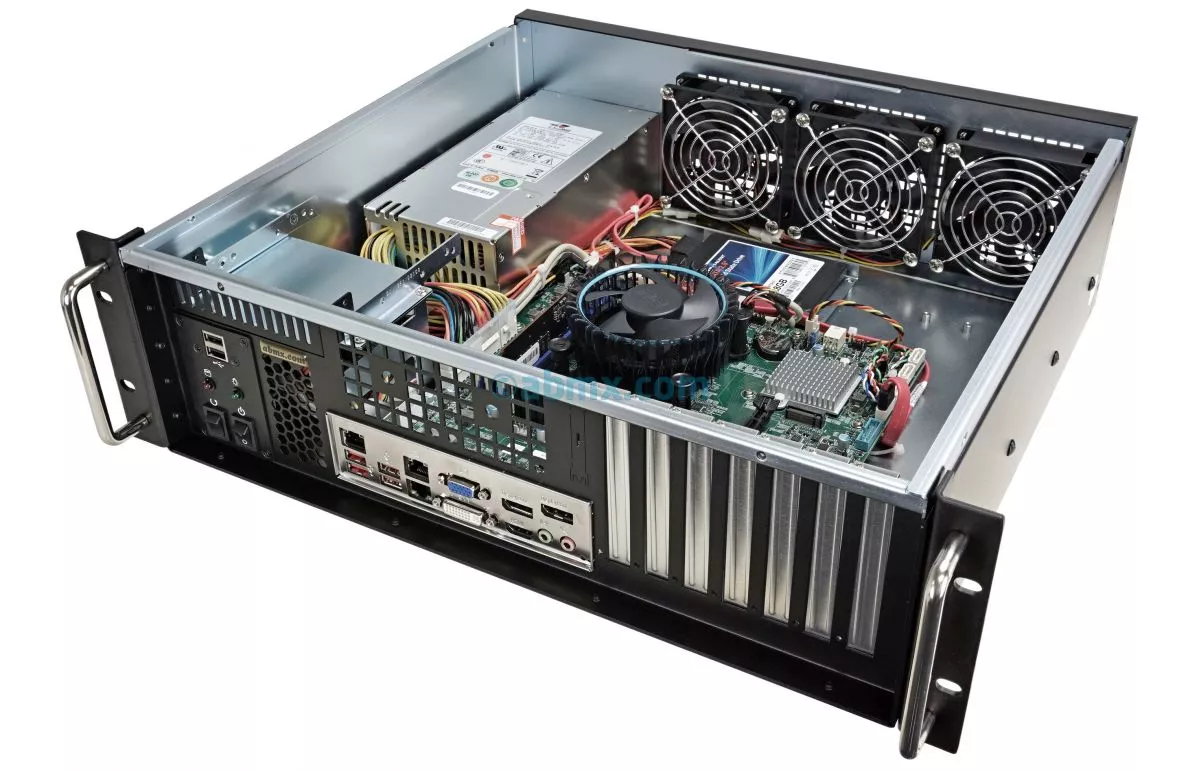

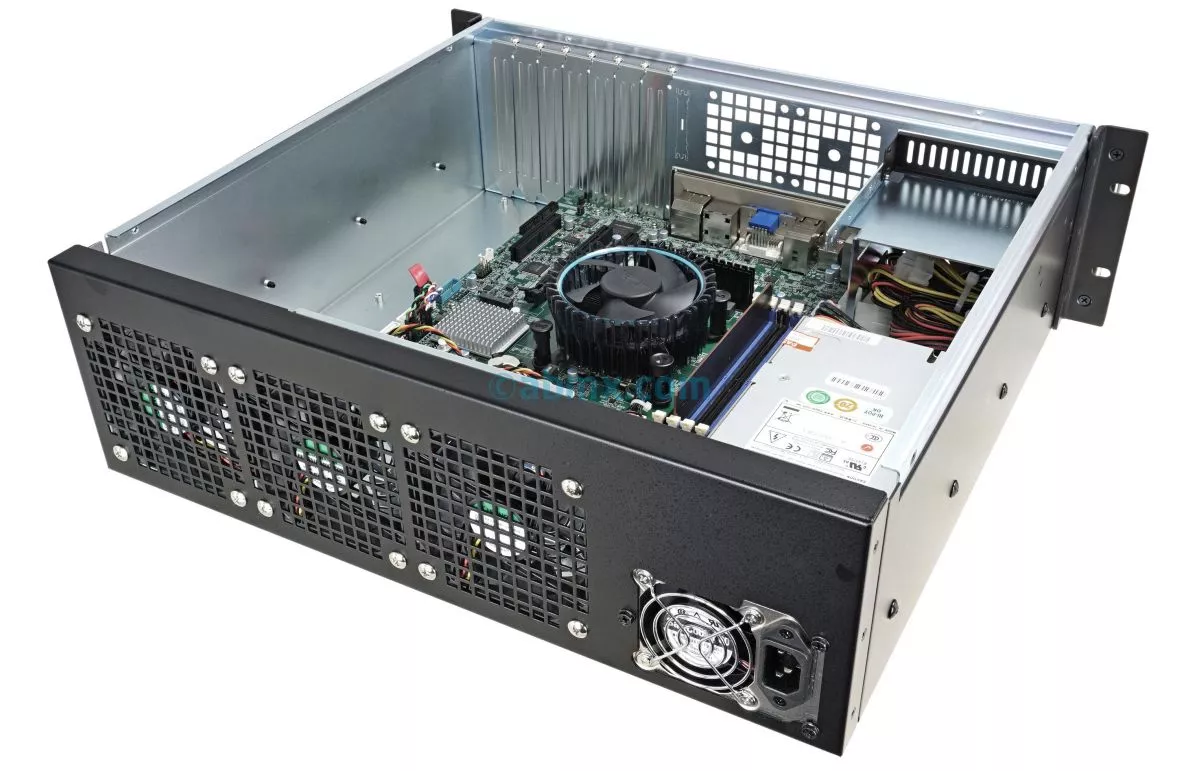

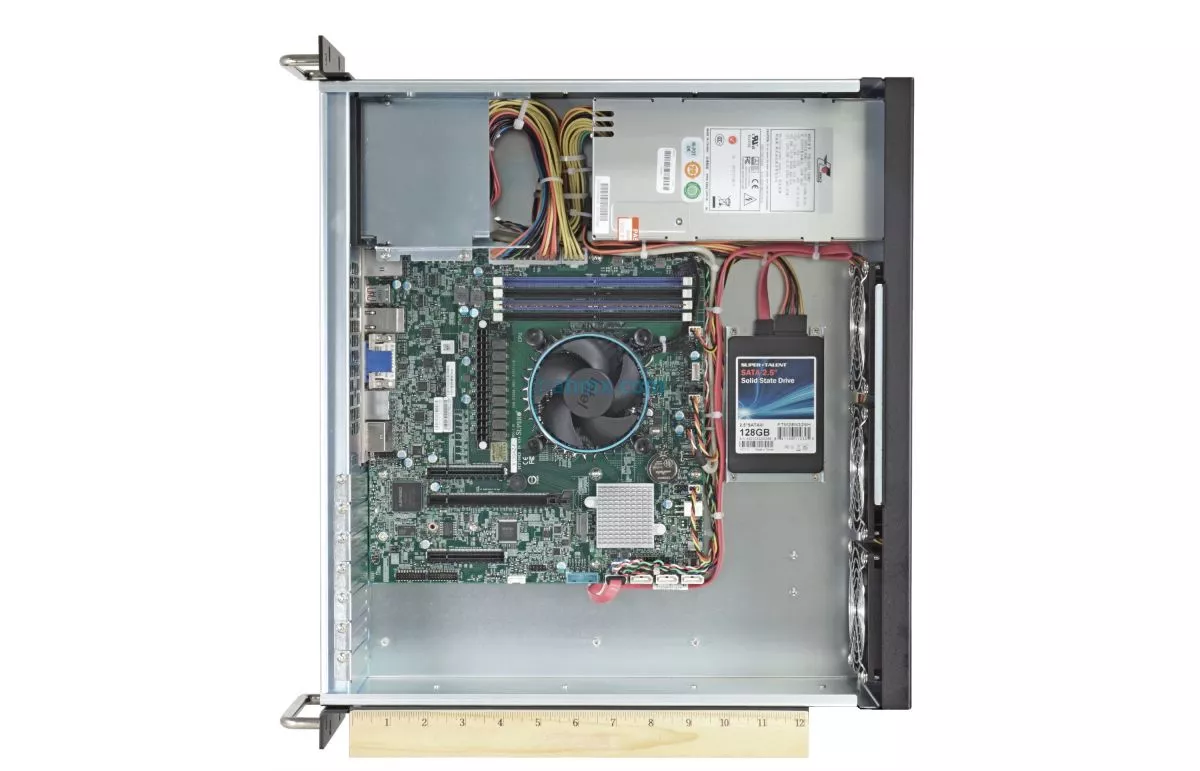

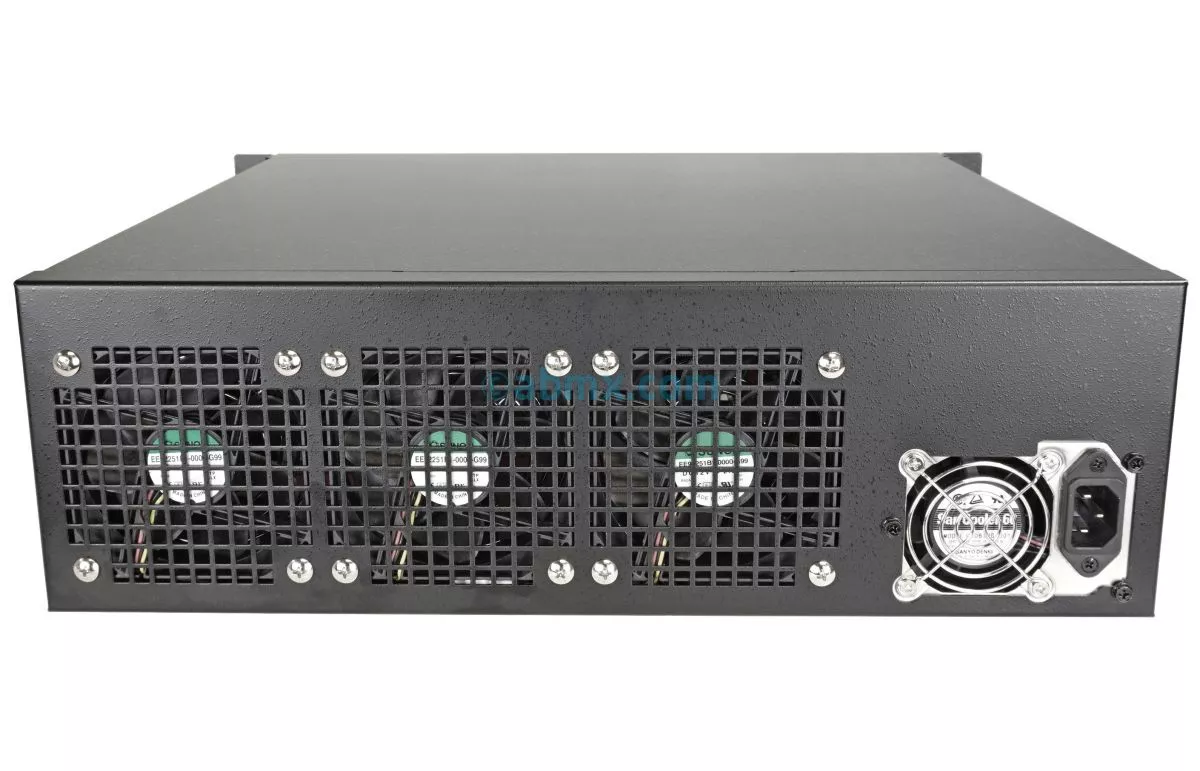

Chassis

3U Short-depth Rack Mountable Enclosure
Rack Unit Height: 5.2-inch

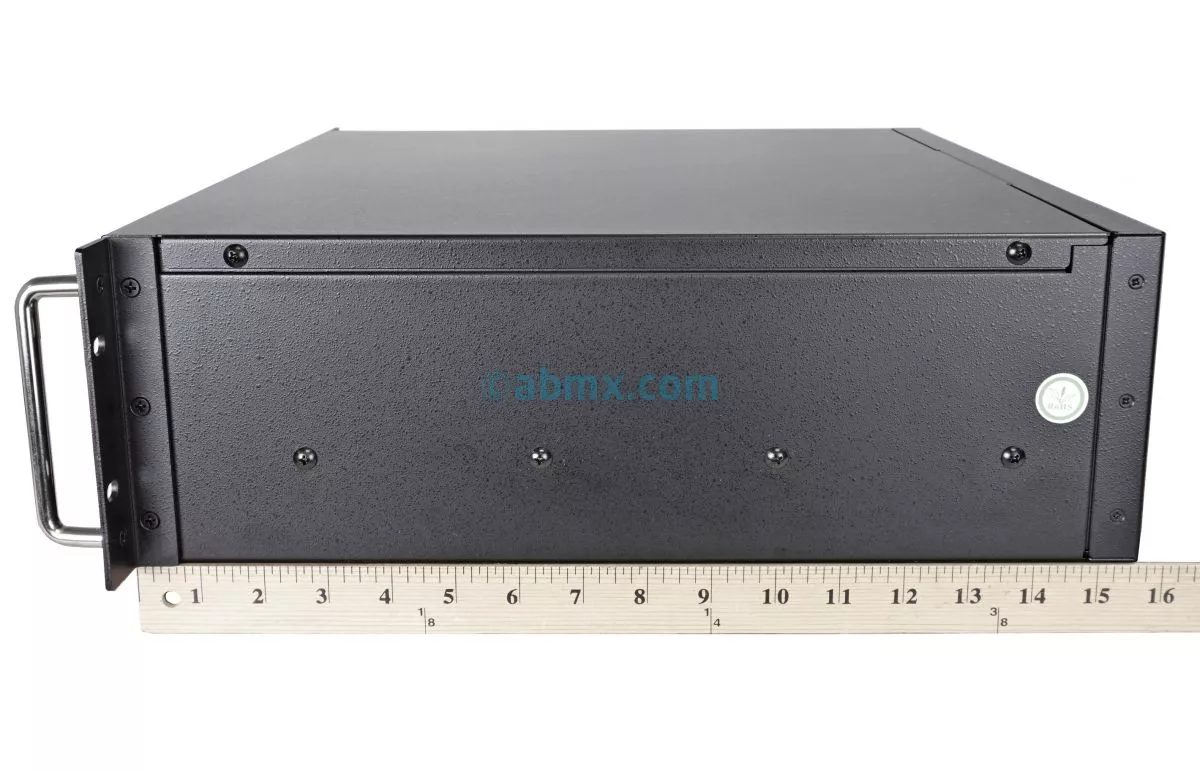

Dimensions: 15.8" (D) x 19" (W) x 5.2" (H)
Metal thickness: 1.2 mm
2 x Front USB ports

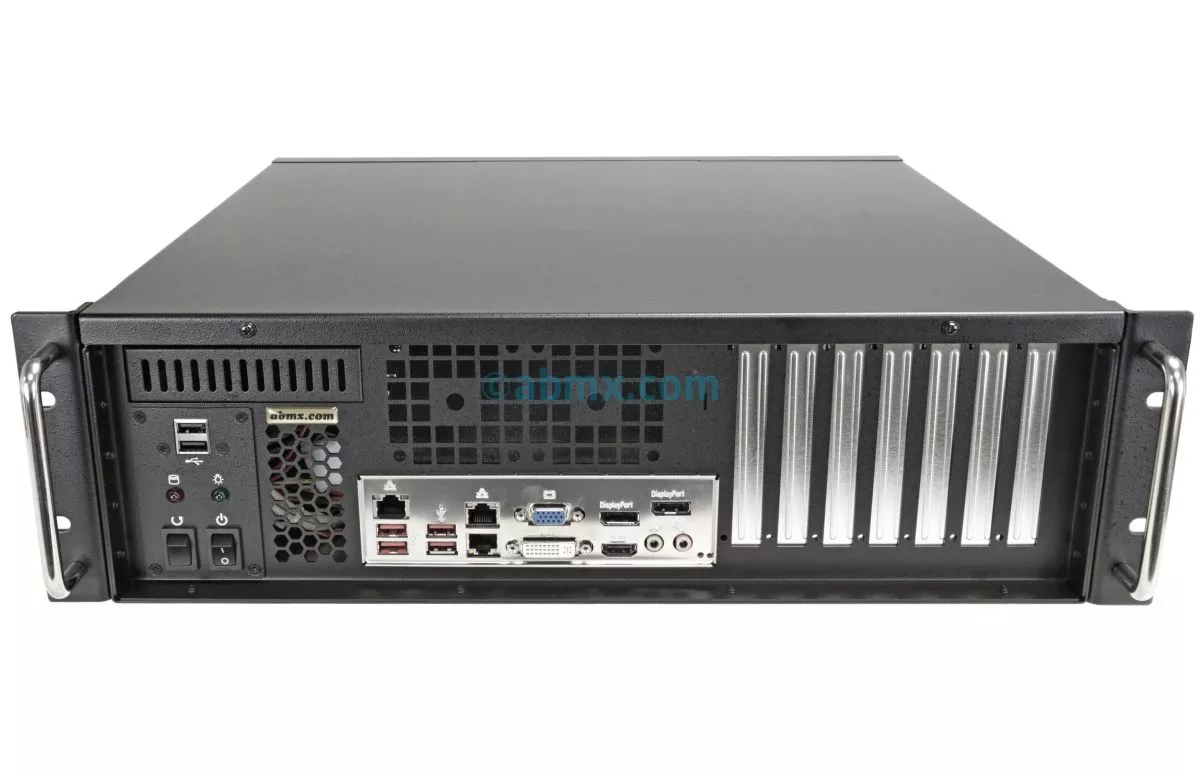

Front I/O ports

Processor/Chipset

Single Socket LGA-1700
Supports 13th /12th Gen. Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor
Intel® R680E Chipset

BIOS

AMI UEFI
ACPI 6.1
SMBIOS 3.0 or later
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup

Memory

4 x 288-pin DDR5 DIMM sockets
Supports up to 128GB Unbuffered ECC/non-ECC UDIMM
4400/4000/3600 MT/s

Storage / IPMI

4 x SATA3 (6Gbps) ports
Intel R680E controller on-board
IPMI 2.0 on-board
Chassis supports up to two drives
1 x M.2 NVMe (2280/22110)

Drive Bays

HD1 Bay: fixed SATA/ SSD Drive
1 x Floppy Drive (can be used for 2nd 2.5-inch drive)
Up to 22 Terabyte of storage can be supported

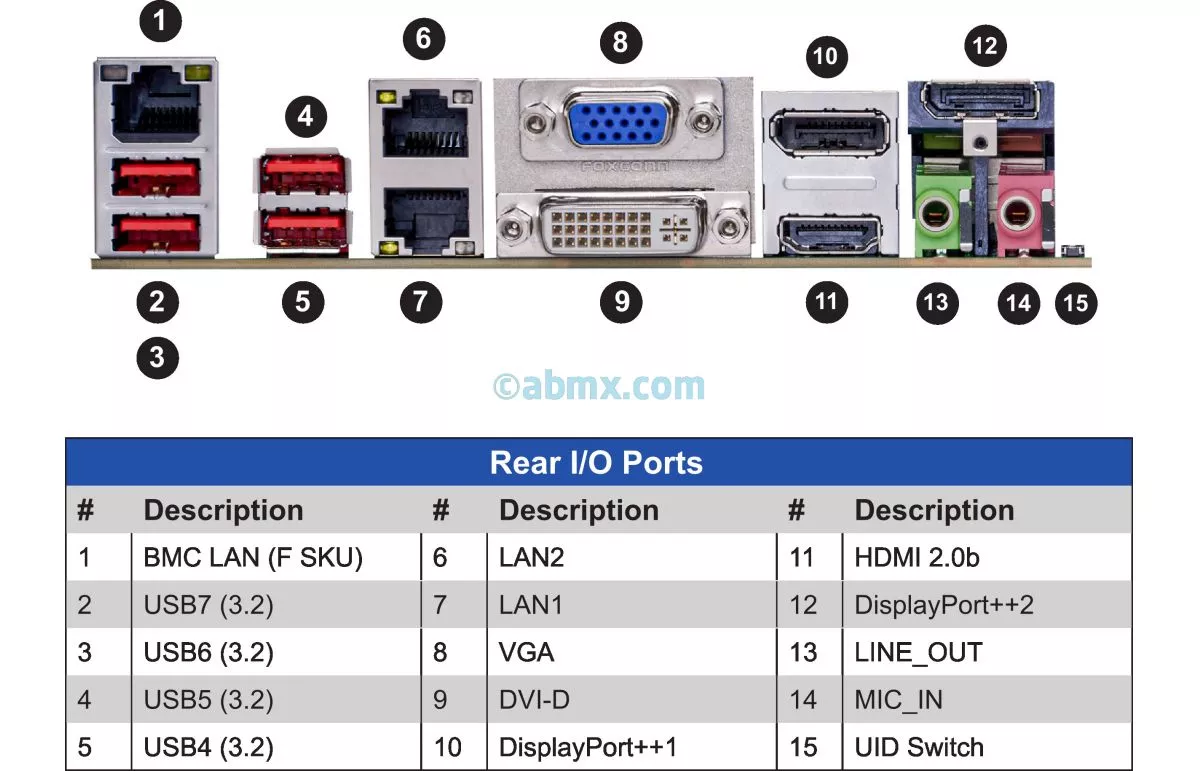

I/O ports

2 x RJ45 2.5 Gigabit Ethernet LAN ports
4 x USB 2.0 ports (4 x headers)
6 x USB 3.2 Gen.2 ports (4 x rear type A, 2 x via header)
2 x USB 3.2 Gen.1 ports (2 x via header)
1 x VGA port
1 x DVI - D port
1 x HDMI 2.0b port
2 x DP (DisplayPort) ports
4 x COM Ports (2 x header RS232/422/485, 2 x header RS232)
TPM 2.0 onboard

Video / Audio

ALC 888S HD Audio on-board
DVI - D port, 1 HDMI 2.0b port, 2 DP (DisplayPort) ports: integrated graphics from CPU

Network

Dual 2.5GbE LAN (Intel® I225-LM) on-board

Hardware Monitor

CPU/System Fan Speed
CPU Temperature
System Voltage Vcore,+3.3V,+5V,+12V

Expansion

1 x PCI-e 5.0 x16 slot
2 x PCI-e 4.0 x4 (in x8) slot

Power Consumption/Acoustic noise emission

Dependent upon hardware configuration.
Please contact our tech support at 714-258-2269 for further details.

Power Supply

High-efficiency AC power supply
Tested to comply with FCC Standards
Certifications: TUV, CB, CE, CCC

CD-ROM /DVD-ROM

External USB Optical Drive (OPTIONAL)

Rack Support

Rackmount rails kit is OPTIONAL

OS Compatibility

Please call our tech support at 714-258-2269 for details

Warranty

3 years Parts* and Labor Standard
* Batteries are subject to DOA only and are NOT subject for replacement or return
Extended Warranties Available

Motherboard X13SAZ-F	Overall	Chipset Intel R680E	LAN Intel i225LM	Video ASPEED AST2600
CentOS 9
Debian 12
Fedora Server 38
Fedora Workstation 38
FreeBSD 14
OpenBSD 7
OPNsense 23.7
PFSense 2.7.2
Proxmox VE 8.1
Red Hat Enterprise Linux 9
Rocky Linux 9
SUSE Enterprise Server 15
TrueNAS 13
Ubuntu Desktop 20.04 LTS
22.04 LTS
Ubuntu Server 20.04 LTS
22.04 LTS
VMWare ESXi 8
Windows 11
Windows Server 2022

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
