2U Workstation - Intel 14th Gen

Model: 218LPASX27

This 2U rackmount server/workstation is a top choice in its class, now powered by the latest Intel 12th, 13th, and 14th generation processors for exceptional performance with up to 24 cores, 32 threads, and support for up to 128GB of DDR5 memory, delivering lightning-fast speeds. Its compact 18" deep design offers an ideal balance between space efficiency and expansion, supporting up to 5 low-profile PCIe cards, making it perfect for users who need powerful performance in a compact form factor.

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • Video (HD Output)
  • 5.25" Drive Bay
  • 18-Inch deep
  • Windows 11 Compatible
  • TPM 2.0 on-board
Recommended Uses

4 - 24 Cores
Core i9, i7, i5
i3, Pentium, Celeron

8 - 128 GB

3 x 3.5 Fixed

3 x 2.5GbE

5 x PCI-e
2 x PCI 32-bit

Chassis

Motherboard

Special Order - LT 1-2 weeks

Processor

Memory

Storage

Samsung 980
Samsung 970 EVO Plus
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Video Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Special Order

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

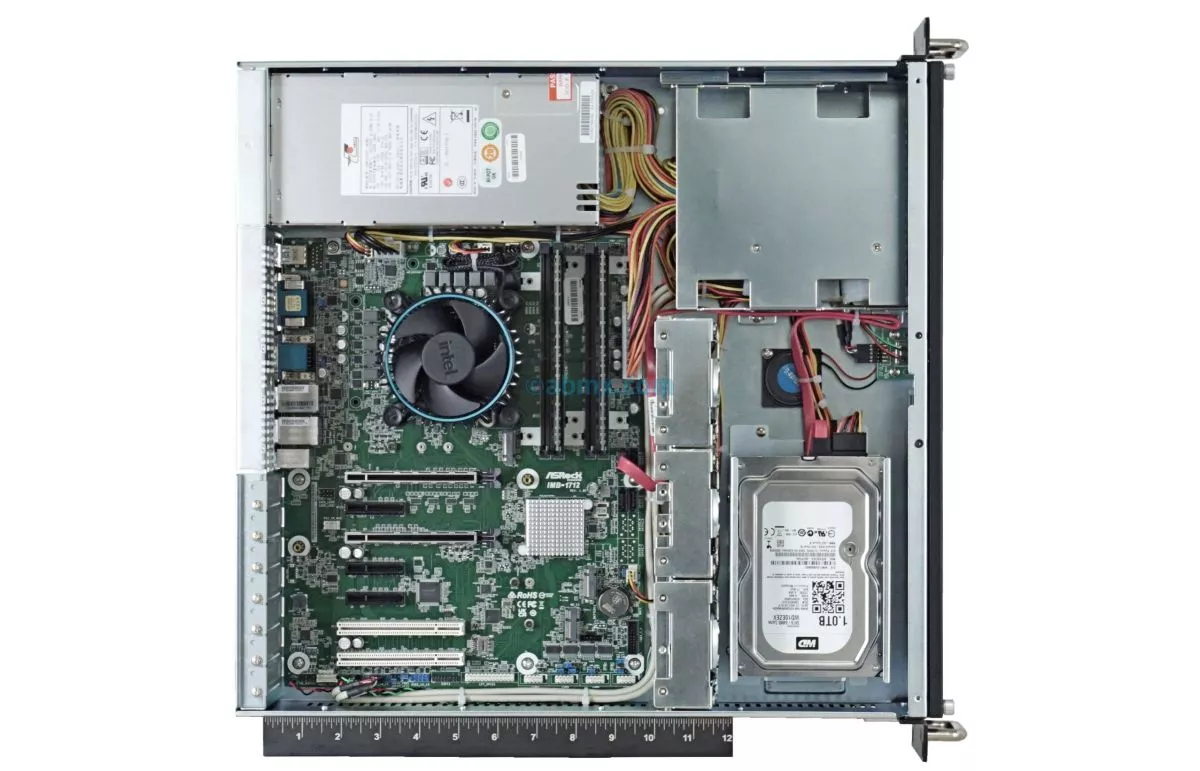

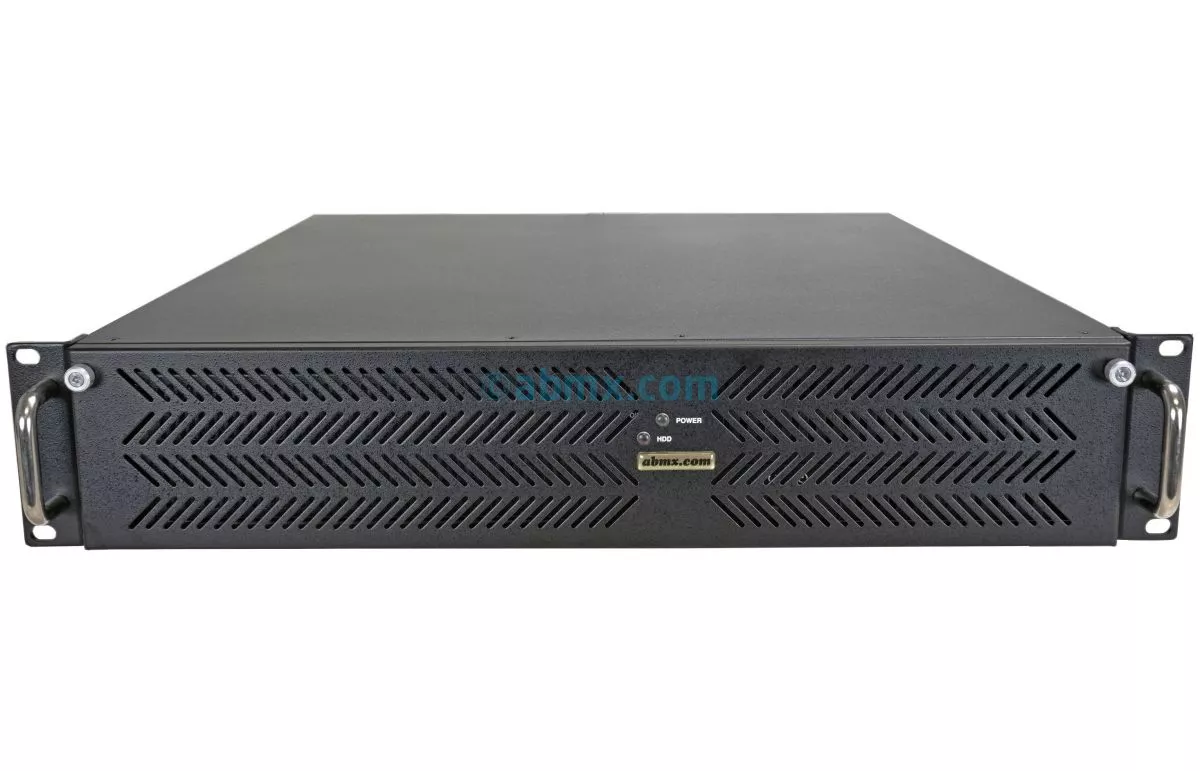

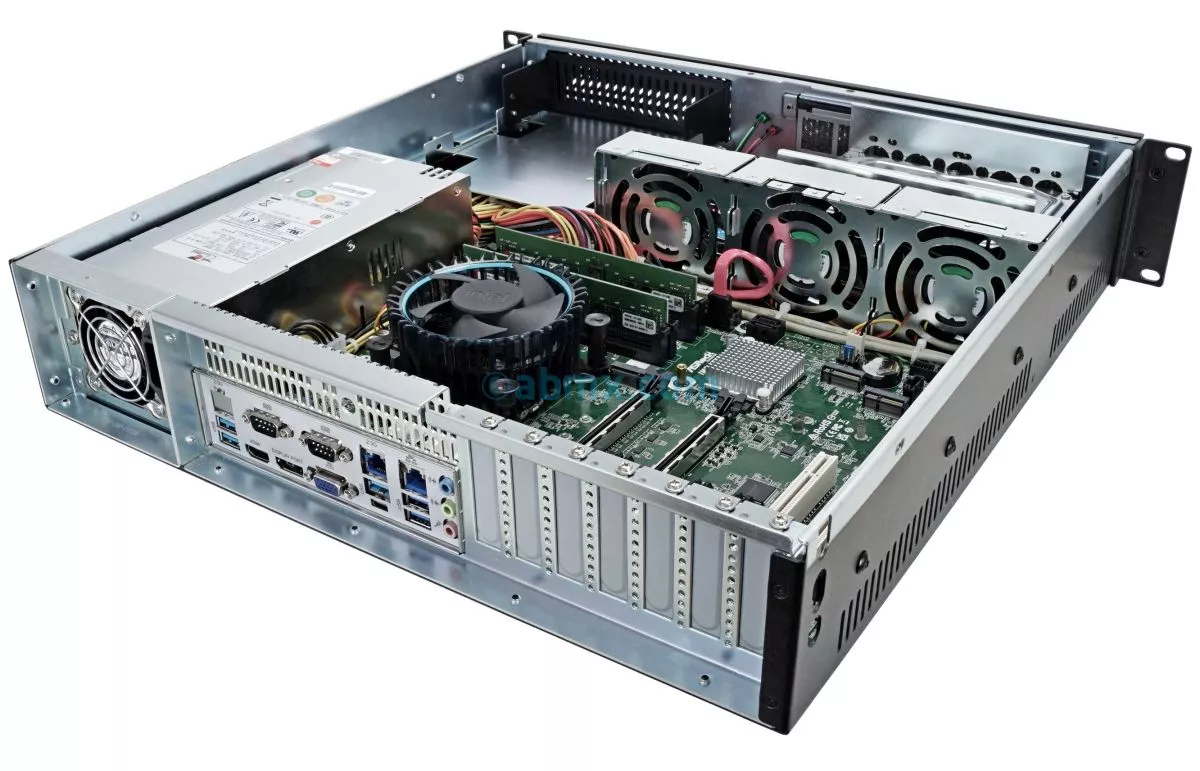

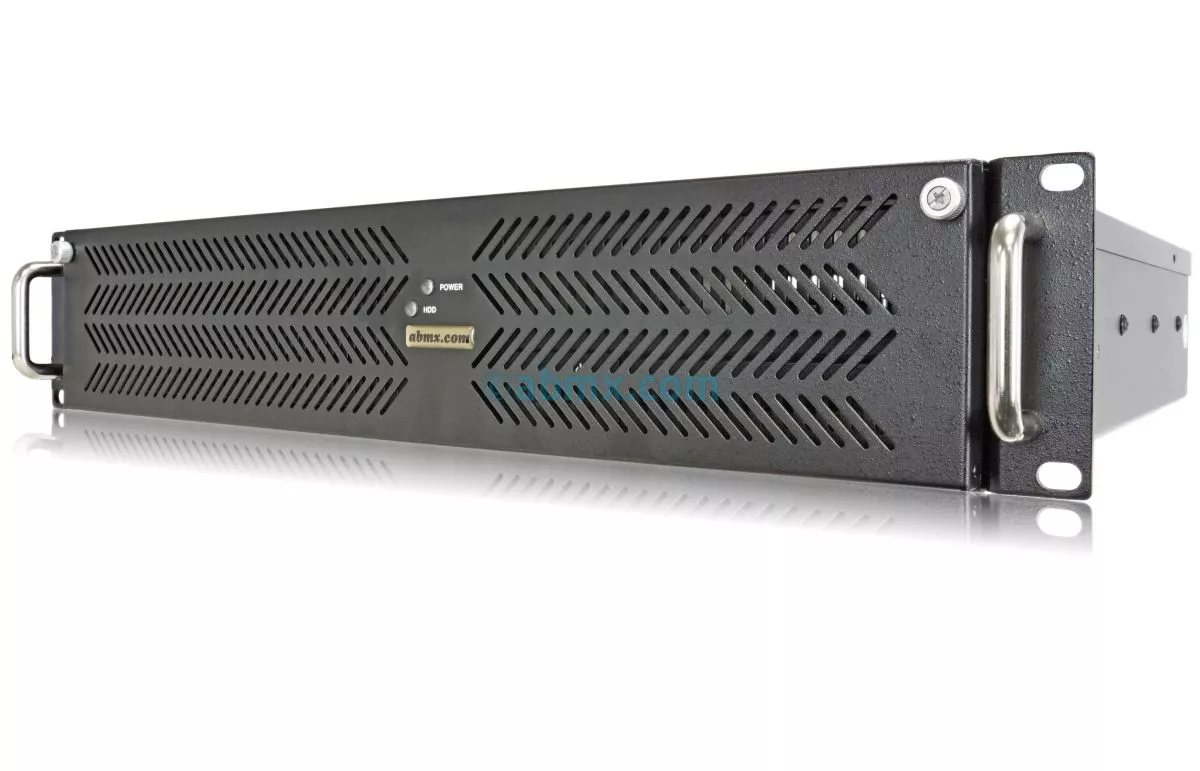

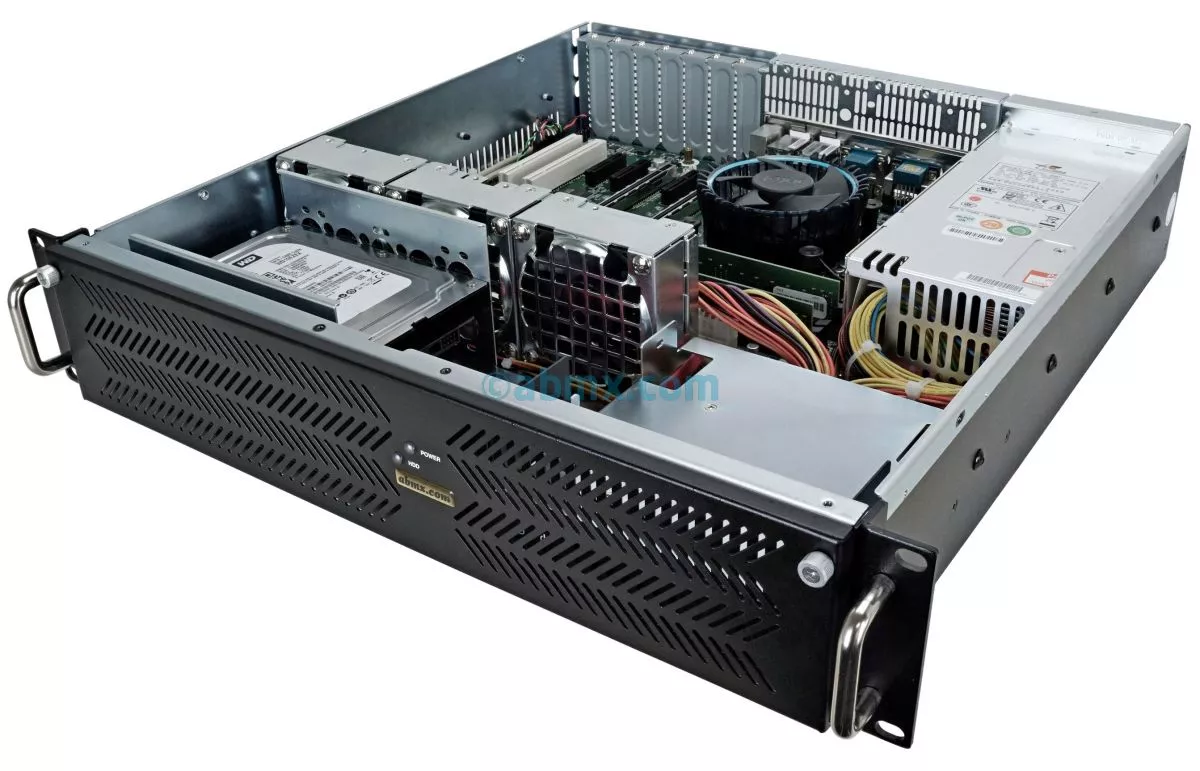

  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch

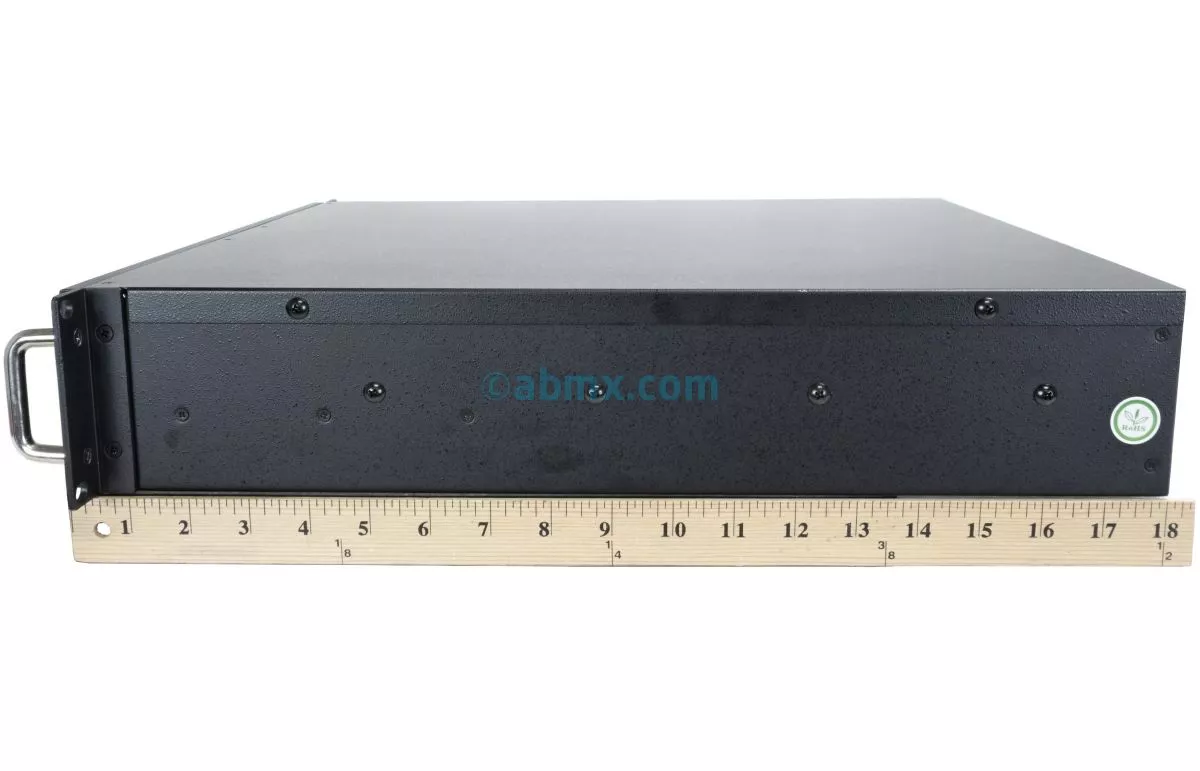

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front Single Door with 2 Thumbscrews
  • Air Filter Inside Front Panel (Washable)
  • Front USB: 2 x ports
Processor/Chipset
  • Single Socket LGA-1700
  • Supports Intel® 14th/13th/12th Gen. Core™ Processors
  • Intel® W680 Chipset
BIOS
  • AMI SPI 256 Mbit
Memory
  • 4 x 288-pin DDR4 DIMM sockets
  • Supports up to 128GB non-ECC UDIMM
  • DDR4 3200 MHz
Storage
  • 8 x SATA3 (6Gbps) ports
  • Chassis supports up to three drives
  • 1 x M.2 NVMe (2280/22110)
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drive
  • Up to 72 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay

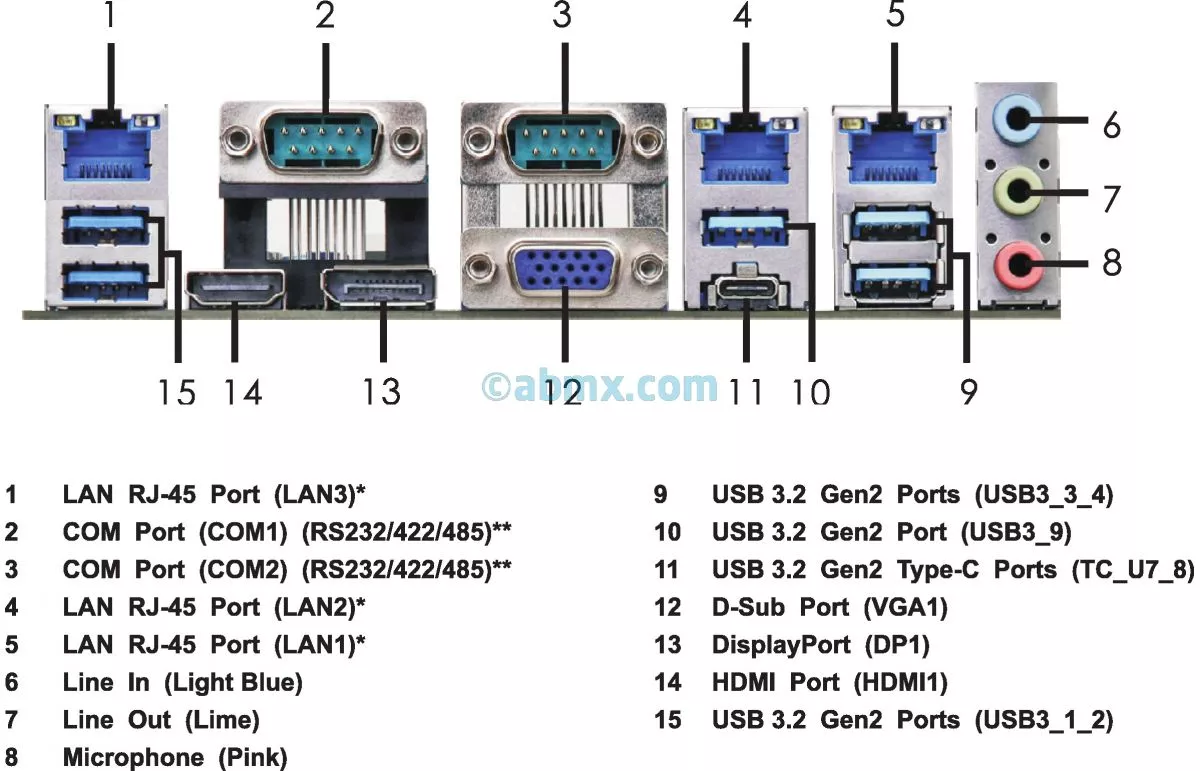

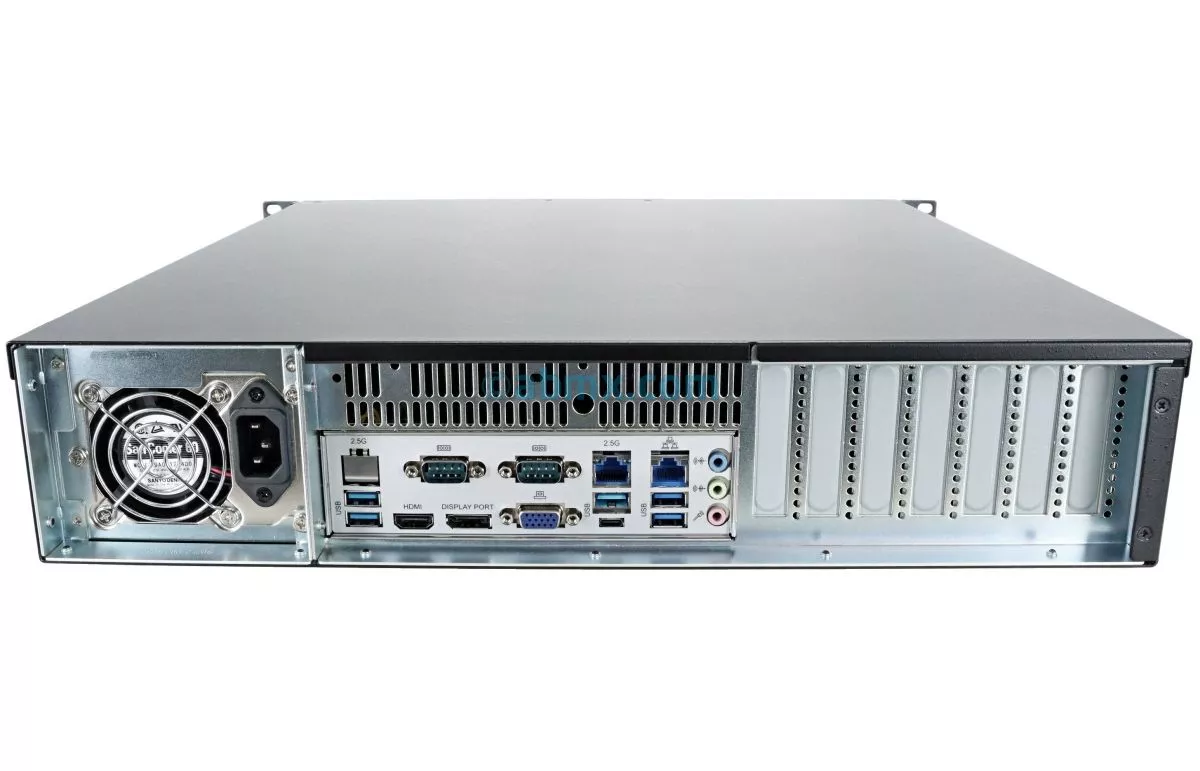

I/O ports
  • 3 x RJ45 2.5 Gigabit Ethernet LAN ports
  • 5 x USB 3.2 Gen.2 ports
  • 1 x USB 3.2 Gen.2x2 port (Type C, 5V/3A)
  • 2 x USB 3.2 Gen.1 ports
  • 4 x USB 2.0 ports
  • 1 x VGA port
  • 1 x HDMI 2.0b port
  • 1 x DP 1.4a++ port
  • 2 x COM Ports (RS-232/422/485)
  • TPM 2.0 onboard
Video / Audio
  • Intel® UHD Graphics Controller
  • HDMI 2.0b (Max resolution up to 4096x2160@60Hz)
  • DisplayPort 1.4a, DP++ (Max resolution up to 4096x2160@60Hz)
  • VGA (Max resolution up to 1920 x 1200@60Hz)
  • MultiDisplay (Triple Display)
  • Realtek ALC897, HD Audio (Line-In / Line-Out / Mic-In)

Network
  • Dual 2.5 Gigabit LAN Ethernet Controller (Intel® 225LM/I225V)
  • Single 2.5 Gigabit LAN Ethernet Controller (Intel® I225LM), supports vPro
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-e 4.0 (x16) slot
  • 1 x PCIe 4.0 (x8) slot
  • 2 x PCIe 4.0 (x4) slots
  • 1 x PCIe 3.0 (x4) slot
  • 2 x PCI 32bit 5V slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, CB, CCC, CE, TUV
  • Redundant or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard IMB-X1712

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
