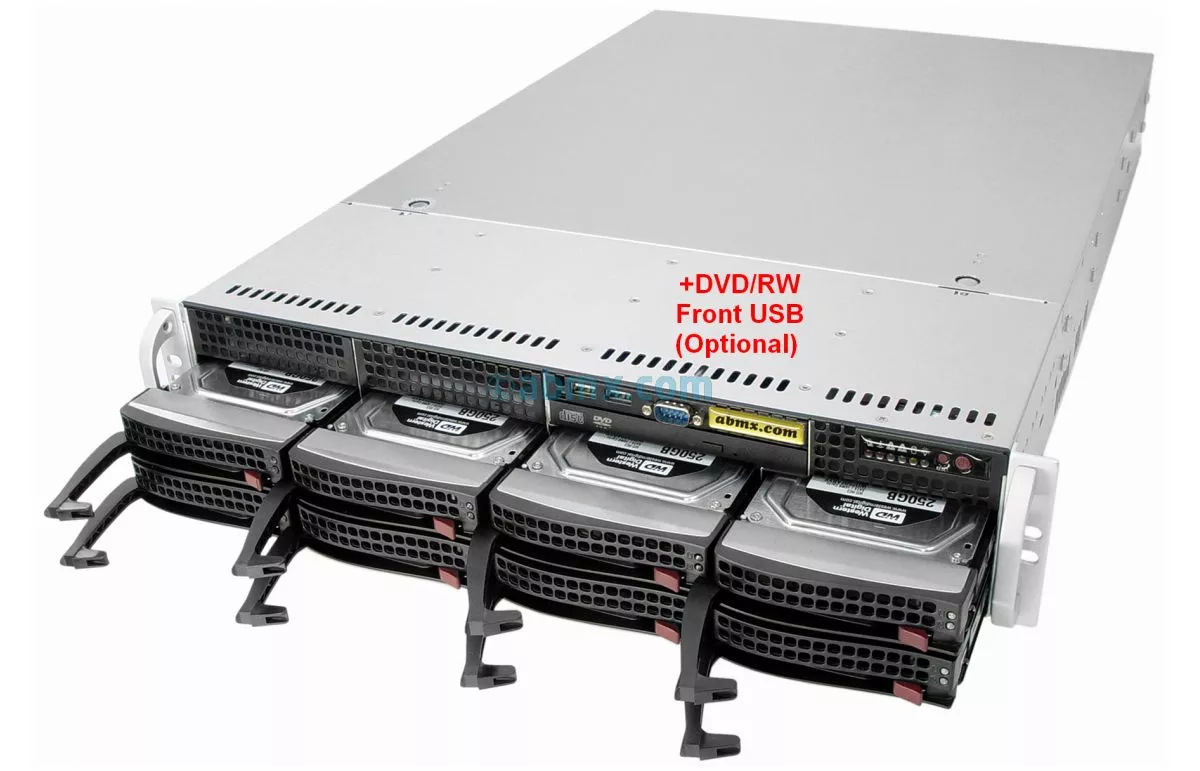

2U Server - Xeon Scalable - 8 x Hot-Swap Bays - Redundant Power

Model: 226LRX2PL

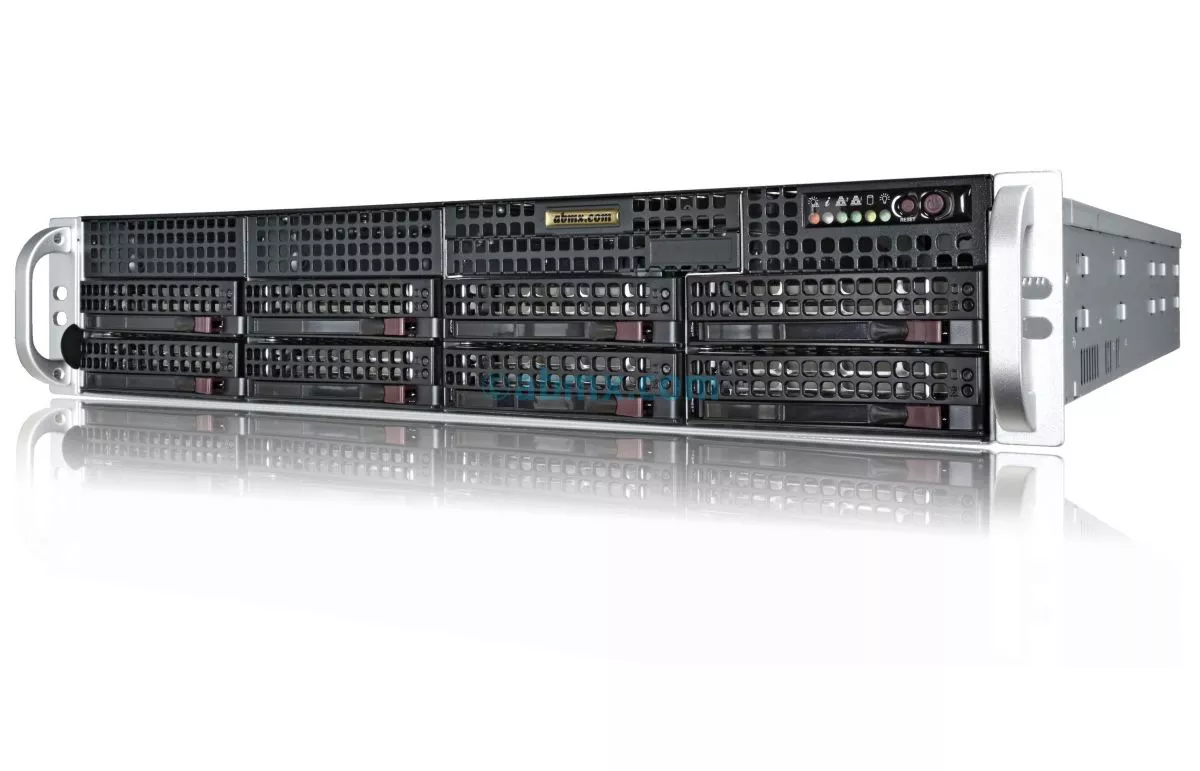

The 226LRX2PL is one of our most powerful 2U storage servers. With eight hot-swap bays, a Xeon Scalable processor and a redundant power supply, this is one of our most capable systems. This server is a great choice for projects requiring large usable storage and high performance.

Key Features
  • Front USB (optional)
  • Redundant Power
  • 26-Inch deep
Recommended Uses

8 - 38 Cores
Xeon Scalable

8 - 512 GB

8 x 3.5 Hot-Swap
2 x 3.5 Fixed

2 x 1GbE

7 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Front USB/COM port

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis
  • 2U Rackmountable Enclosure (LOW-PROFILE)
  • 1 Rack Unit Height (3.5")

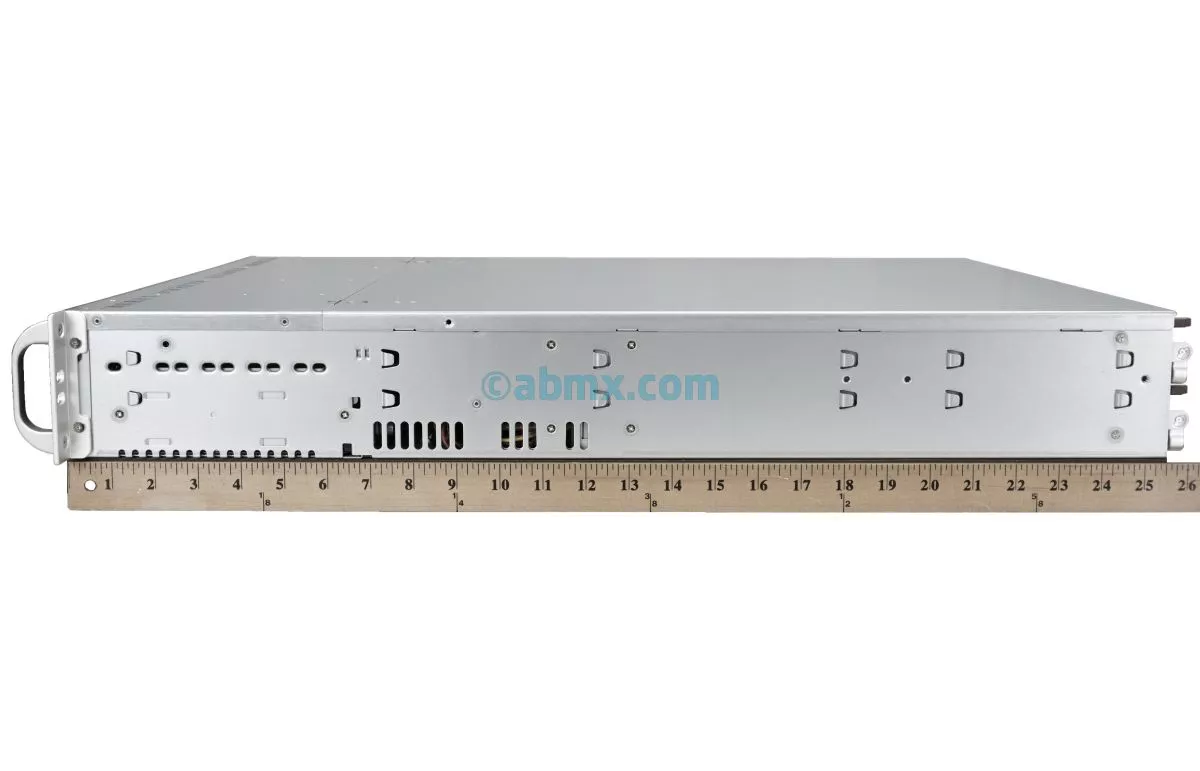

  • Dimensions: 25.5" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
Processor/Chipset
  • Single Socket LGA-4189 (Socket P+)
  • Supports 3rd Gen. Intel® Xeon® Scalable processors
  • Intel® C621A chipset
BIOS
  • AMI UEFI
  • ACPI 6.2
  • SMBIOS 3.0 or later
  • UEFI 2.7
Memory
  • 8 x DDR4 DIMM sockets
  • Supports up to 2TB
  • DDR4 3200/2933MHz ECC 3DS, LRDIMM, RDIMM
Storage / IPMI
  • 10 x SATA3 (6Gbps) ports
  • Intel® C621A controller on-board
  • IPMI 2.0 support (ASPEED AST2600 BMC)
  • Chassis supports up to ten drives
  • 1 x M.2 NVMe 2280/22110

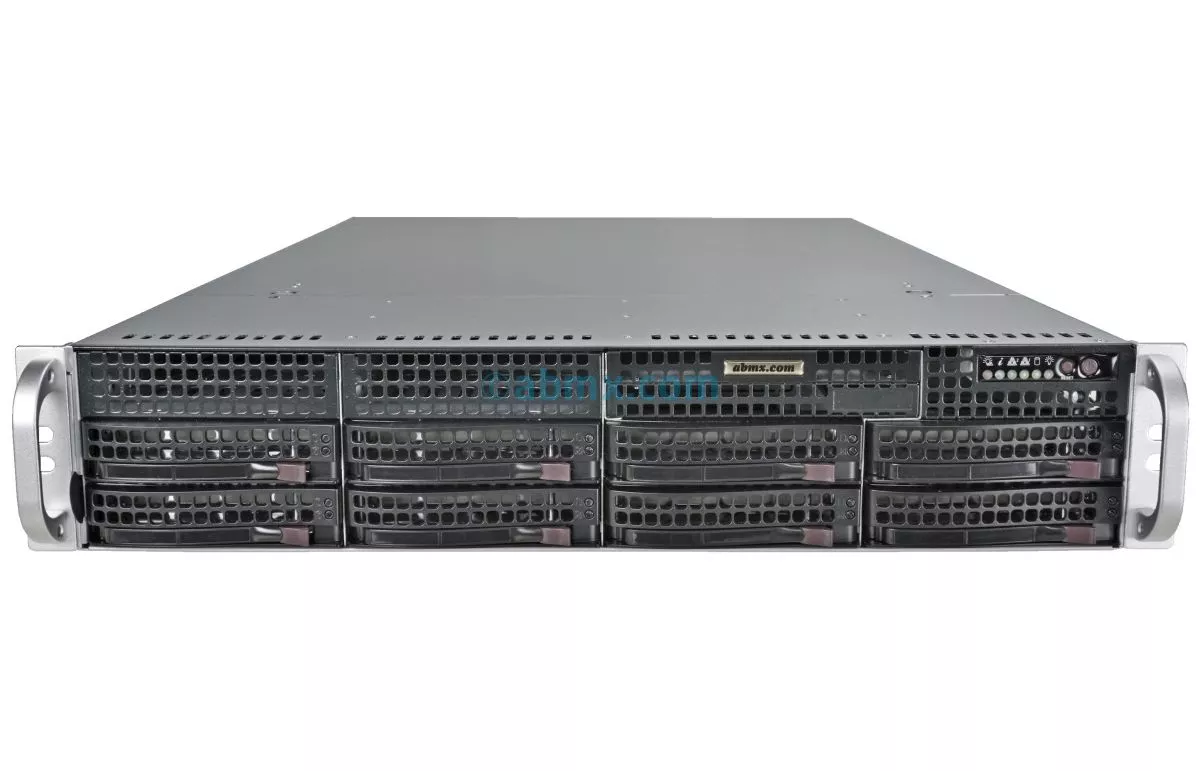

Drive Bays
  • HD1-8 Bay: Hot-swap 3.5/2.5-inch Drive Bays
  • HD9-10 Bay: fixed OS 3.5/2.5-inch Drive Bays
  • Up to 180 Terabyte of storage can be supported
  • Slim-line Optical Drive Bay

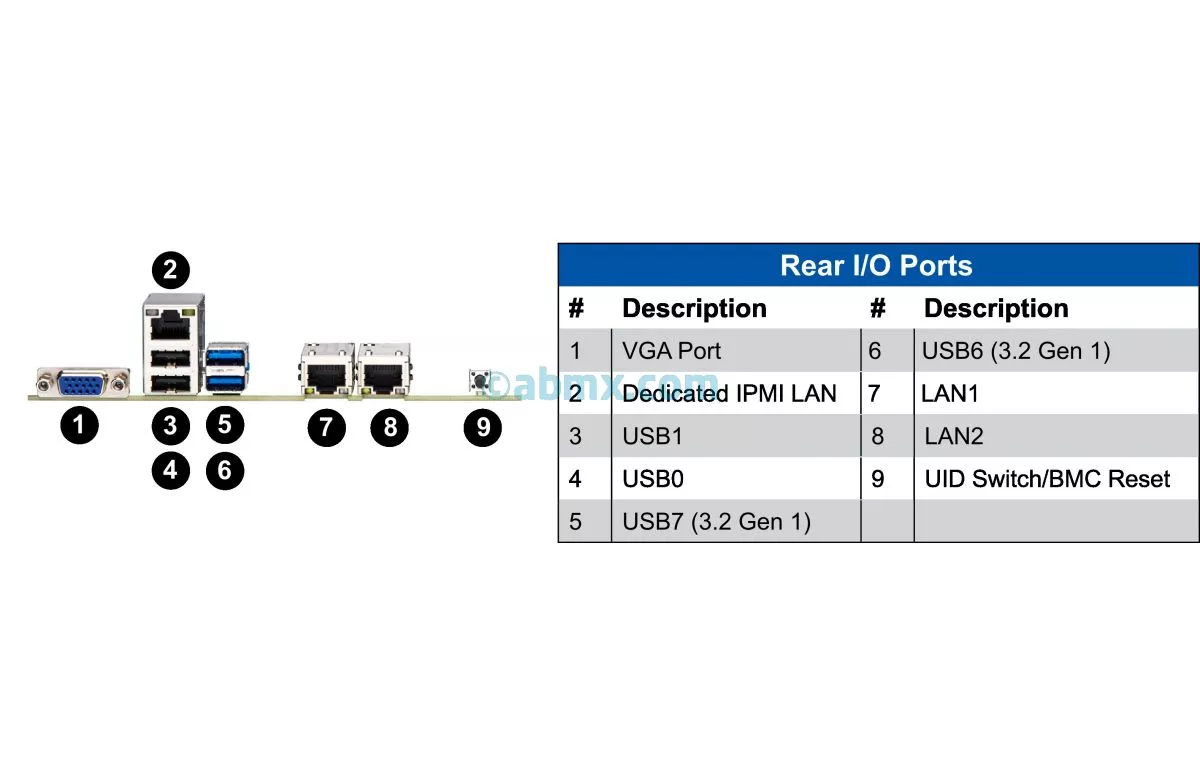

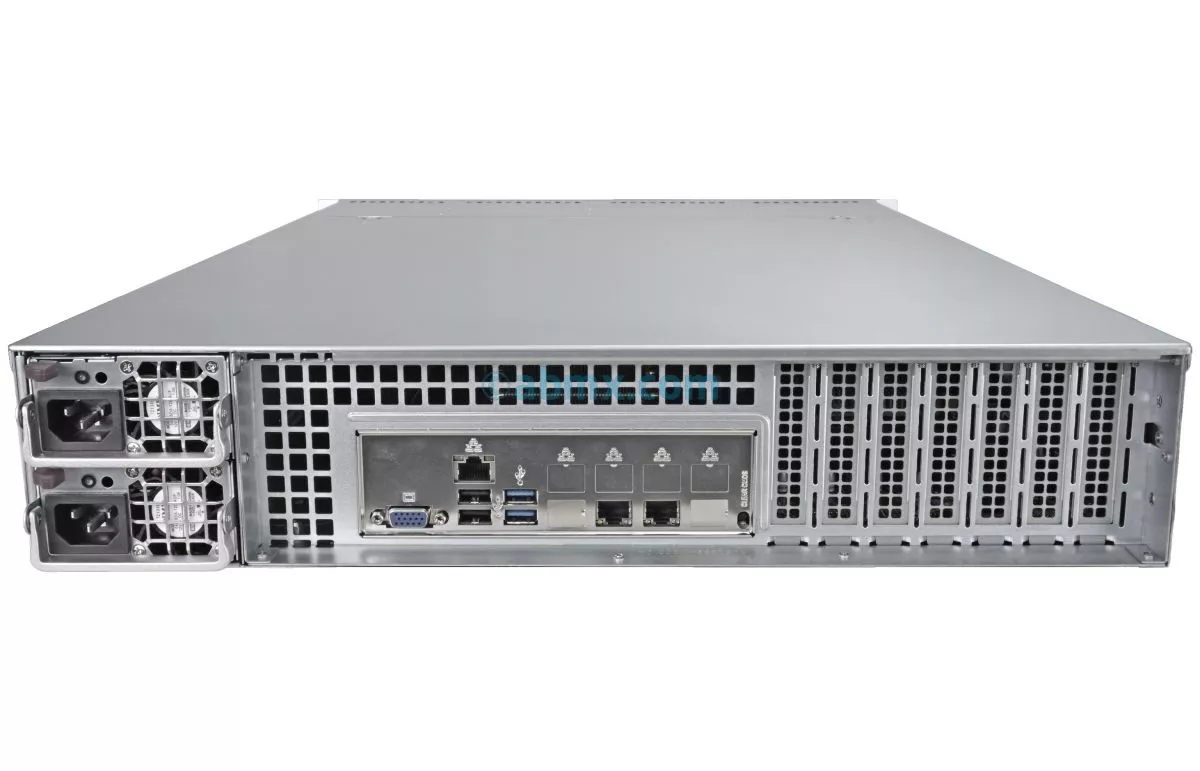

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 6 x USB 2.0 ports (4 x via header, 2 x rear)
  • 5 x USB 3.2 Gen.1 ports (2 x via header, 2 x rear; 1 x type A)
  • 1 x VGA port
  • 1 x COM Port (1 x header)
  • 1 x TPM Header
  • 2 x SATA DOM power connectors
Video
  • ASPEED AST2600 BMC Graphics on-board

Network
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion (LOW-PROFILE)
  • 1 x PCI-e 4.0 (x16) slot
  • 1 x PCI-e 4.0 (x8) in (x16) slot
  • 2 x PCI-e 4.0 (x8) slots
  • 3 x PCI-e 3.0 (x8) slots
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • Redundant HE Power Supply
  • Tested to comply with FCC class A Standards
  • Certifications: BSMI, CCC, CE/EMC, UL/CB, UL/CUL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive is OPTIONAL
Rack Support
  • 2U rackmount rails kit is included
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X12SPL-F /SPC621D8

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
