18-Inch deep

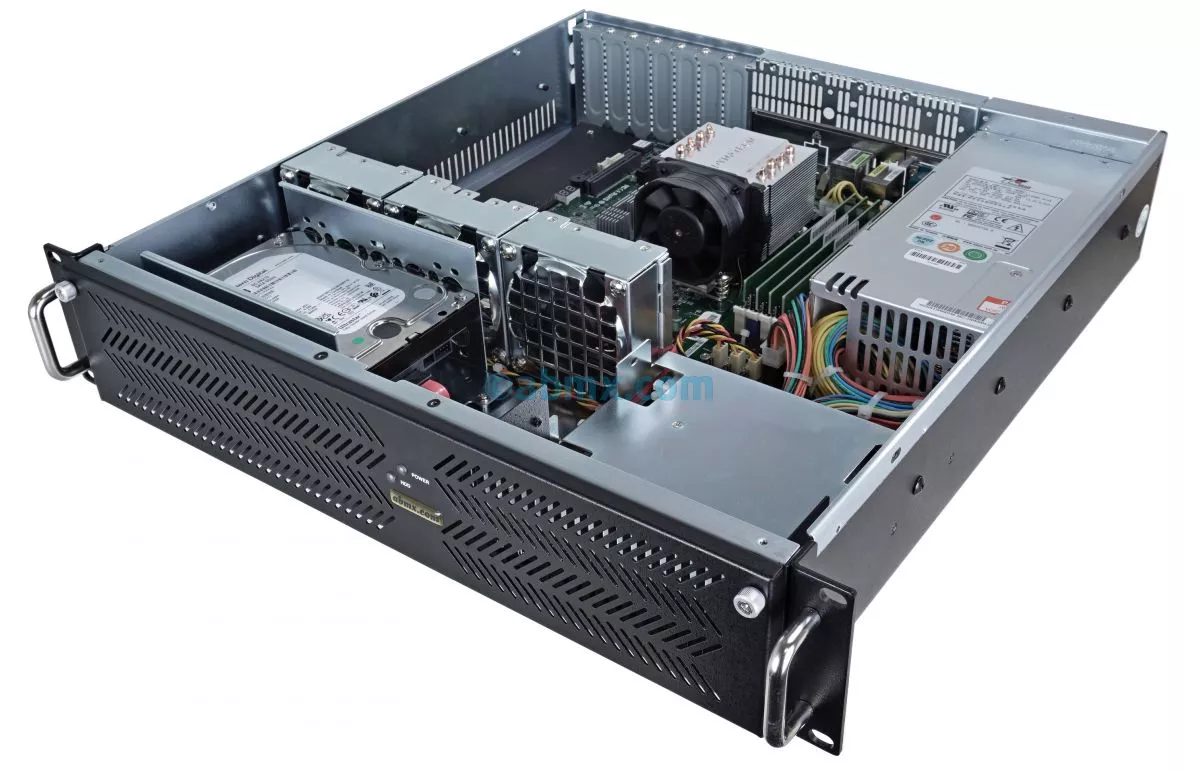

This 2U short-depth server features the Ryzen AM4 platform from AMD™ which offers a higher core count and a better cost-to-performance ratio than alternatives. This 2U short-depth server is a cost-effective solution for simple to advanced level projects that require up to 16 cores and 128GB of RAM. This server is a perfect solution for an application server or network appliance.

CPU

4 - 16 Cores
AMD Ryzen

Memory

8 - 128 GB

Storage

3 x 3.5 Fixed

LAN

2 x 1GbE

PCI-e

3 x PCI-e

Chassis

2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
Rack Unit Height: 3.5-inch
Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
Metal thickness: 1.2 mm
Front Door: Single Door with 2 Thumbscrews

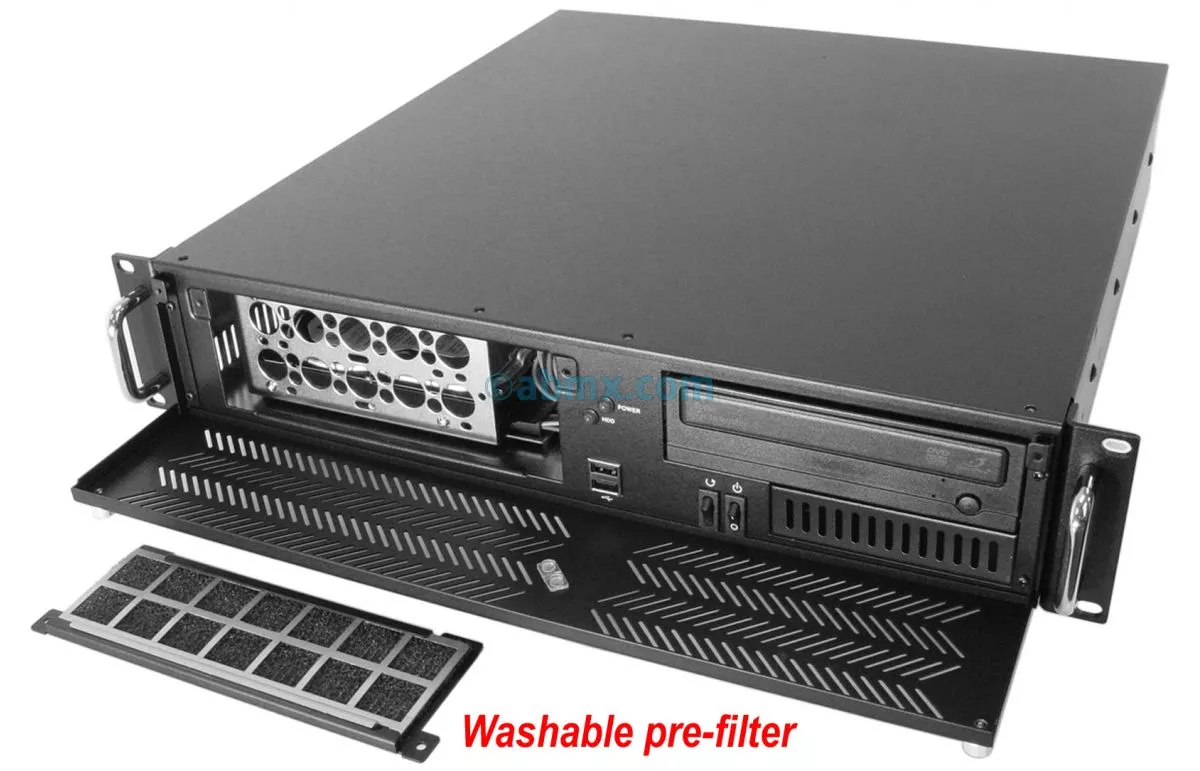

Air Filter: Inside Front Panel (Washable)
Front: 2 x USB Ports

Processor/Chipset

Single AMD Socket (AM4 PGA 1331)
Supports AMD Ryzen™ 5000/4000 Series Processors
AMD X570 chipset

BIOS

32MB AMI UEFI Legal BIOS
Plug and Play (PnP)
ACPI 2.0 Compliance Wake Up Events
SMBIOS 2.8.0 Support

Memory

4 x DDR4 DIMM sockets
Supports up to 128GB
DDR4 ECC/non-ECC Un-buffered memory
3200/2933/2666 MHz

Storage / IPMI

8 x SATA3 (6Gbps) ports
Chassis supports up to three hard drives
IPMI 2.0 support (ASPEED AST2500)
2 x M.2 NVMe (22110/2280/2260/2242)

Drive Bays

HD1-3 Bay: fixed SATA/ SSD Hard Drive
1 x 5.25-inch Drive Bay (Optical Drive or 4th SSD can be installed)
Up to 54 Terabyte of storage can be supported

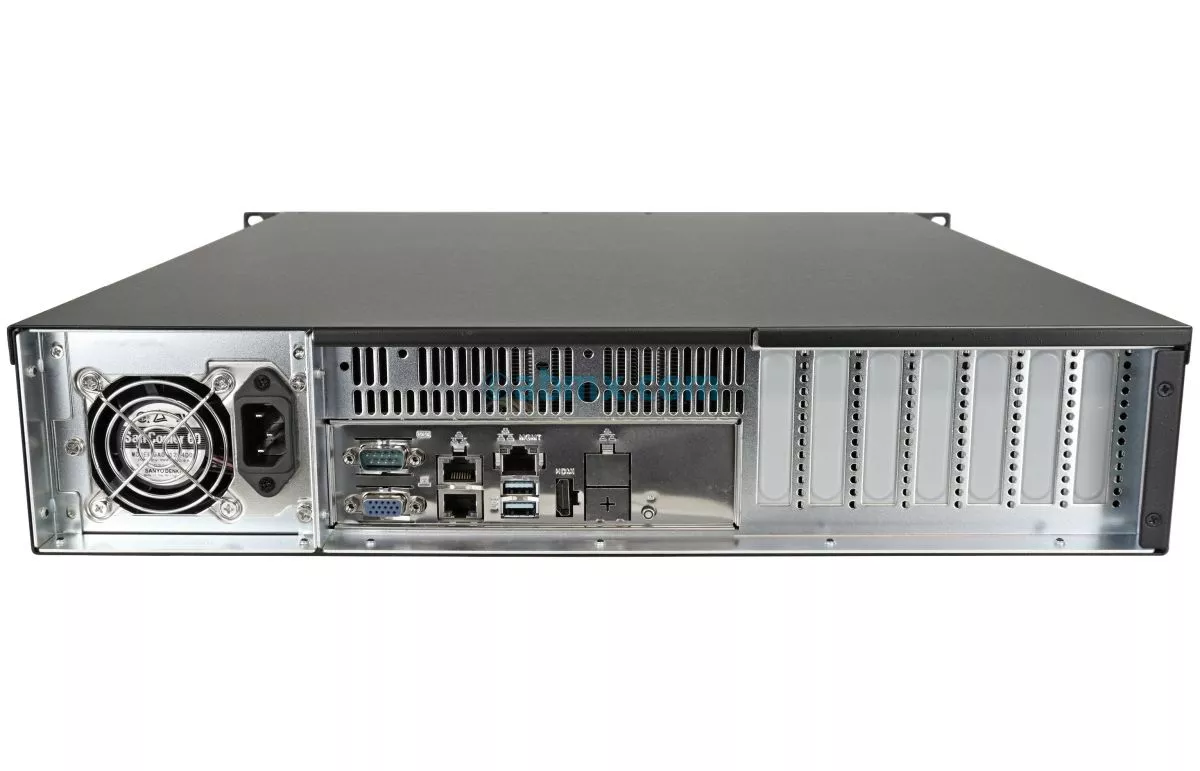

I/O ports

2 x RJ45 Gigabit Ethernet LAN ports
1 x Dedicated LAN (IPMI)
2 x USB 3.2 Gen.2 ports 2 (Type-A)
1 x VGA port
1 x HDMI port
1 x Serial Port
1 x TPM Header
1 x SATA DOM port

Video

ASPEED AST2500: 1 DB15, 1 (15-pin) header
1 HDMI (HDMI functionality requires AMD Ryzen Processors with Radeon Graphics)

Network

Dual Intel® i210 Gigabit LAN (RJ45)

Hardware Monitor

Operating Temperature Range 10°C - 35°C (50°F - 95°F)
System Voltage Vcore,+3.3V,+5V,+12V

Expansion

1 x PCI-e 4.0 (x16) slot (LOW-PROFILE)
1 x PCI-e 4.0 (x8) slot (LOW-PROFILE)
1 x PCI-e 4.0 (x1) slot (LOW-PROFILE)

Power Consumption/Acoustic noise emission

Dependent upon hardware configuration.
Please contact our tech support at 714-258-2269 for further details.

Power Supply

High-efficiency AC power supply
Tested to comply with FCC Standards
Certifications: TUV, CB, CE, CCC
Redundant or 24V/48V DC Power Supply is OPTIONAL

CD-ROM /DVD-ROM

5.25-inch Optical Drive (OPTIONAL)

Rack Support

Rackmount rails kit (OPTIONAL)

OS Compatibility

Please call out tech support at 714-258-2269 for details

Warranty

1 year Parts* and Labor Standard
* Batteries are subject to DOA only and are NOT subject for replacement or return
Extended Warranties Available

Motherboard X570D4U	Overall	Chipset AMD X570	LAN Intel i210-AT	LAN Realtek RTL8211E	Video Aspeed AST2500
Fedora Server 35
Fedora Workstation 35
Windows 11

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.

Motherboard X570D4U-2L2T

2U Short-Depth Server - AMD Ryzen

Model: 218LPZA57

Chassis

Motherboard

Processor

Memory

Storage

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)
