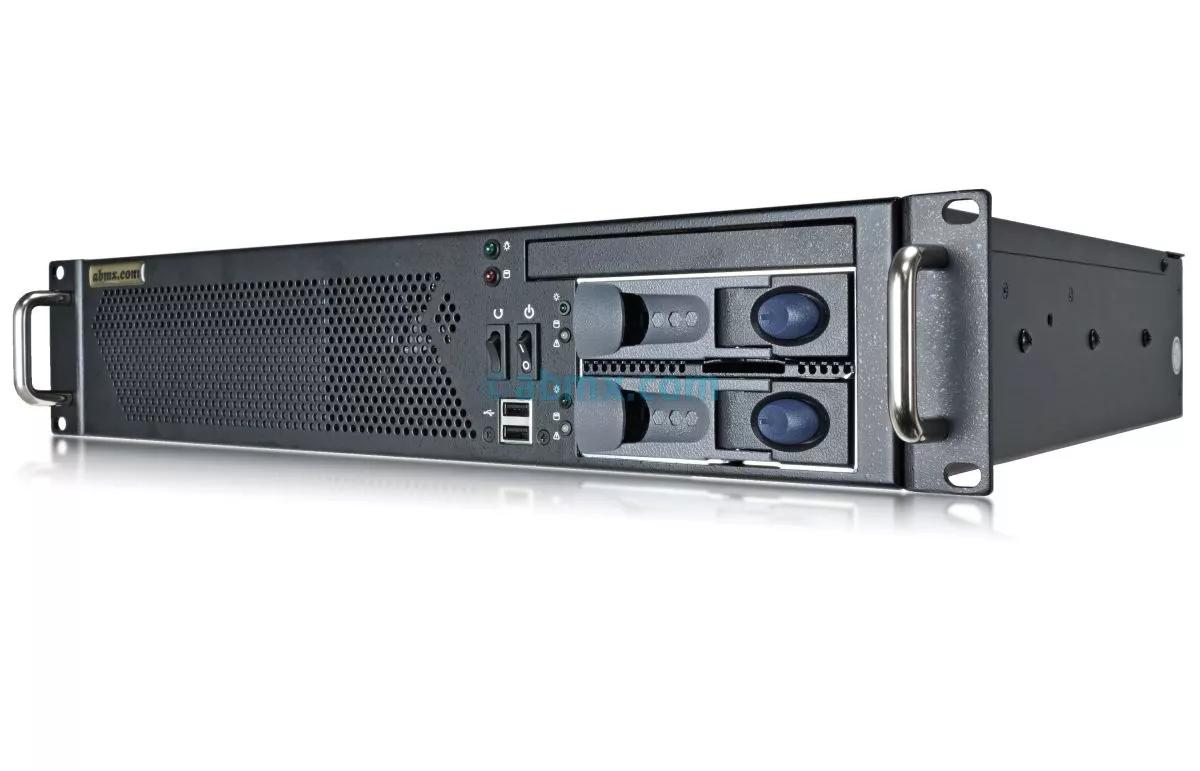

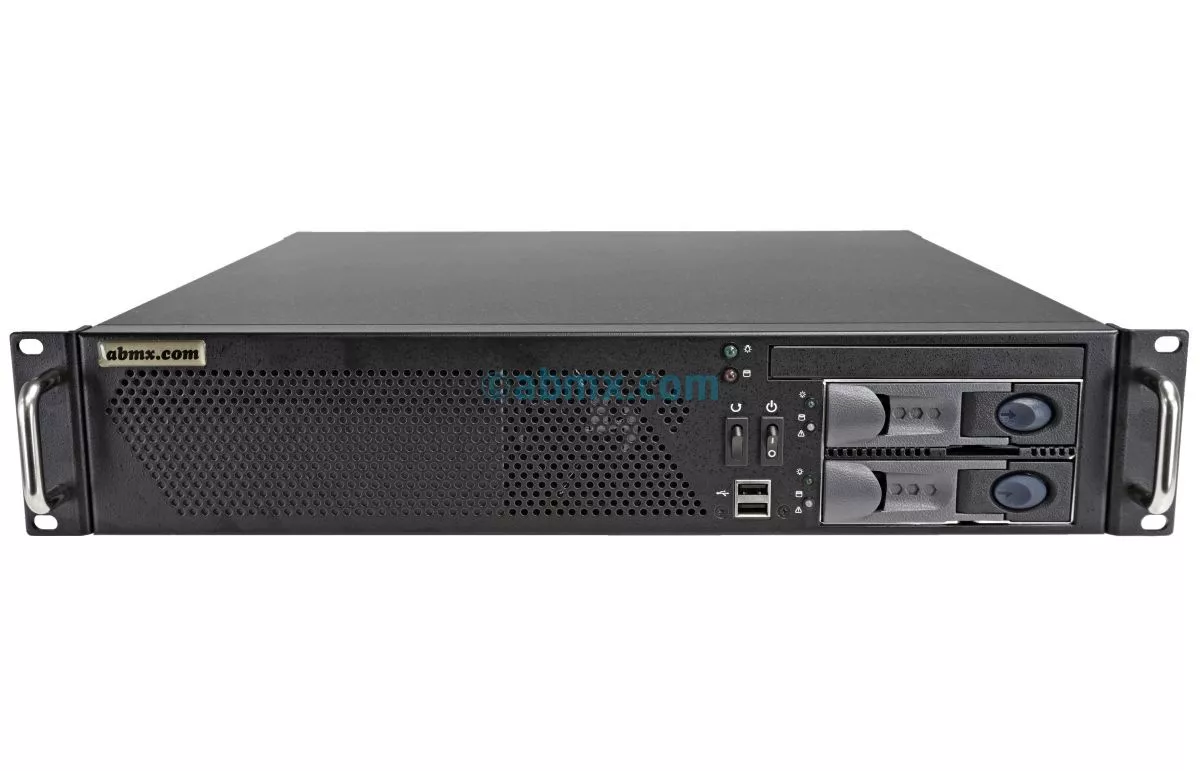

2U Short-Depth Server - AMD Ryzen - 2 x Hot-Swap Bays

Model: 215LPZA57

Our shortest 2U rackmount server featuring the Ryzen AM4 platform from AMD™ offers higher core count and a better cost-to-performance ratio than alternatives. This 2U short-depth server is a cost-effective solution for simple to advanced level projects that require up to 16 cores and 128GB of RAM. With 2 x Hot-Swap bays, this server is a perfect solution for an application server or network appliance.

Key Features
  • Short Depth
  • Front USB
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • 15-Inch deep
Recommended Uses

4 - 16 Cores
AMD Ryzen

8 - 128 GB

2 x 3.5 Hot-Swap
2 x 3.5 Fixed

2 x 1GbE

3 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

RAID / Storage Controller

Additional Network Adapter

Trusted Platform Module (TPM) -- Required for Windows

Optical Drive

Power Supply

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

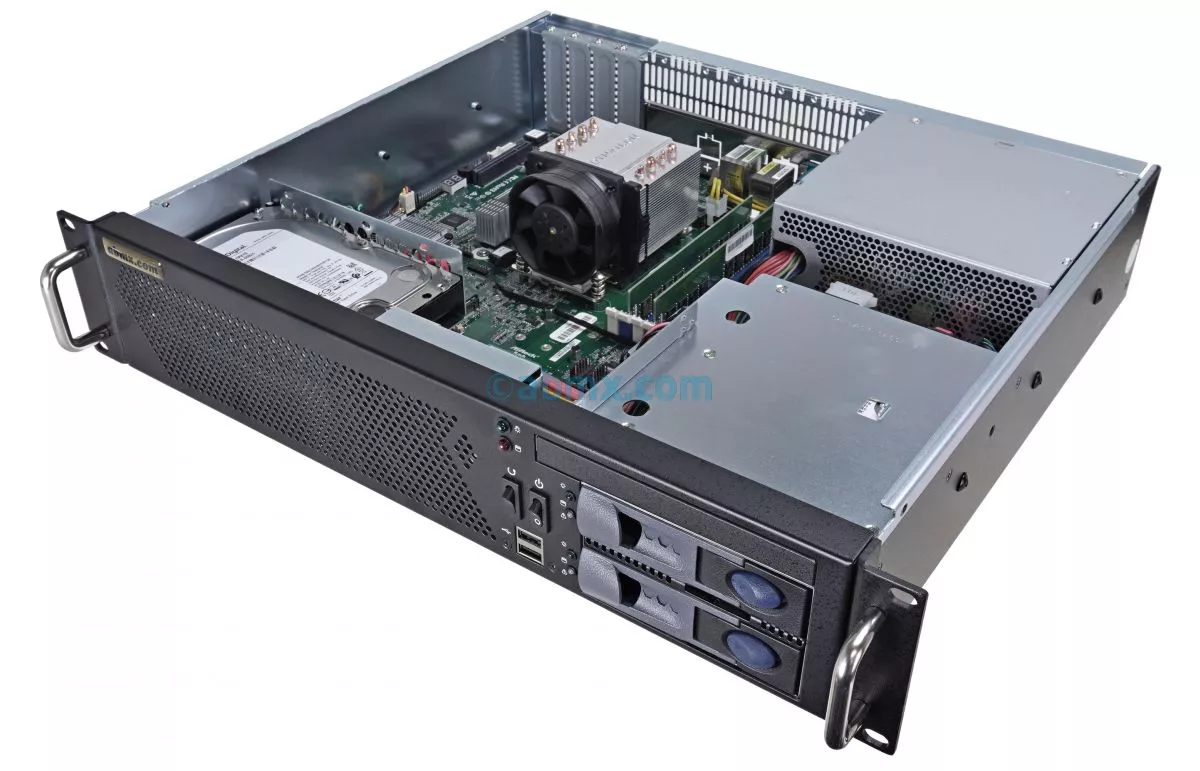

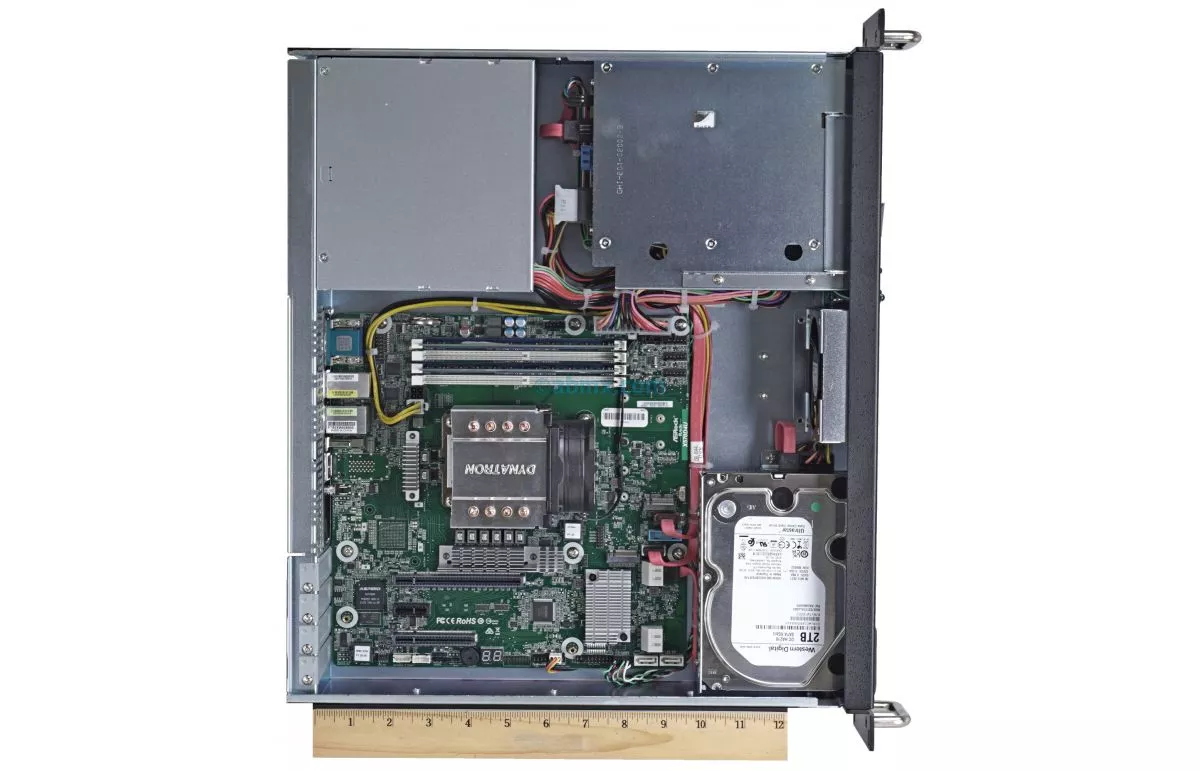

  • 2U Short-depth Rack Mountable Enclosure (LOW-PROFILE)
  • Rack Unit Height: 3.5-inch
  • Dimensions: 15.1" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm
  • Front: 2 x USB Ports
Processor/Chipset
  • Single AMD Socket (AM4 PGA 1331)
  • Supports AMD Ryzen™ 5000/4000 Series Processors
  • AMD X570 chipset
BIOS
  • 32MB AMI UEFI Legal BIOS
  • Plug and Play (PnP)
  • ACPI 2.0 Compliance Wake Up Events
  • SMBIOS 2.8.0 Support
Memory
  • 4 x DDR4 DIMM sockets
  • Supports up to 128GB
  • DDR4 ECC/non-ECC Un-buffered memory
  • 3200/2933/2666 MHz
Storage / IPMI
  • 8 x SATA3 (6Gbps) ports
  • Chassis supports up to four hard drives
  • IPMI 2.0 support (ASPEED AST2500)
  • 2 x M.2 NVMe (22110/2280/2260/2242)
Drive Bays

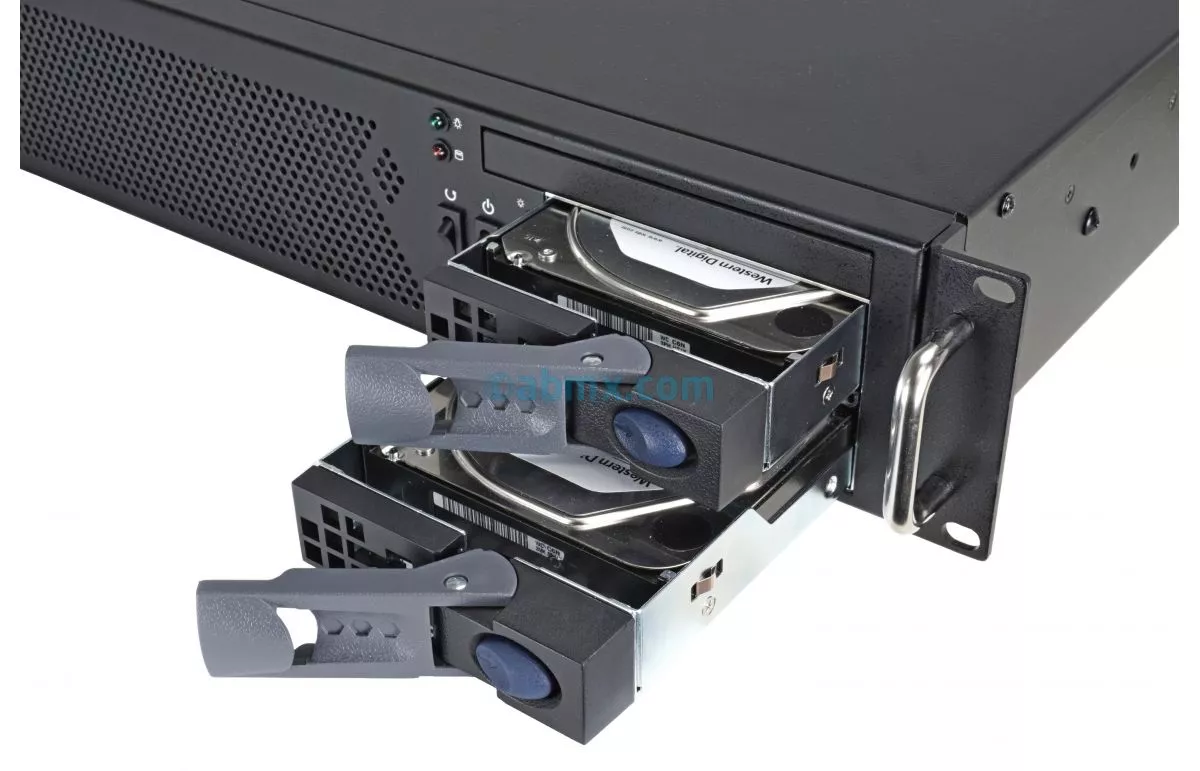

  • HD1-2 Bay: hot-swap SATA/ SSD Hard Drive
  • HD3-4 Bay: fixed SATA/SSD Hard Drive
  • 1 x Slim Optical Drive Bay
  • Up to 72 Terabyte of storage can be supported

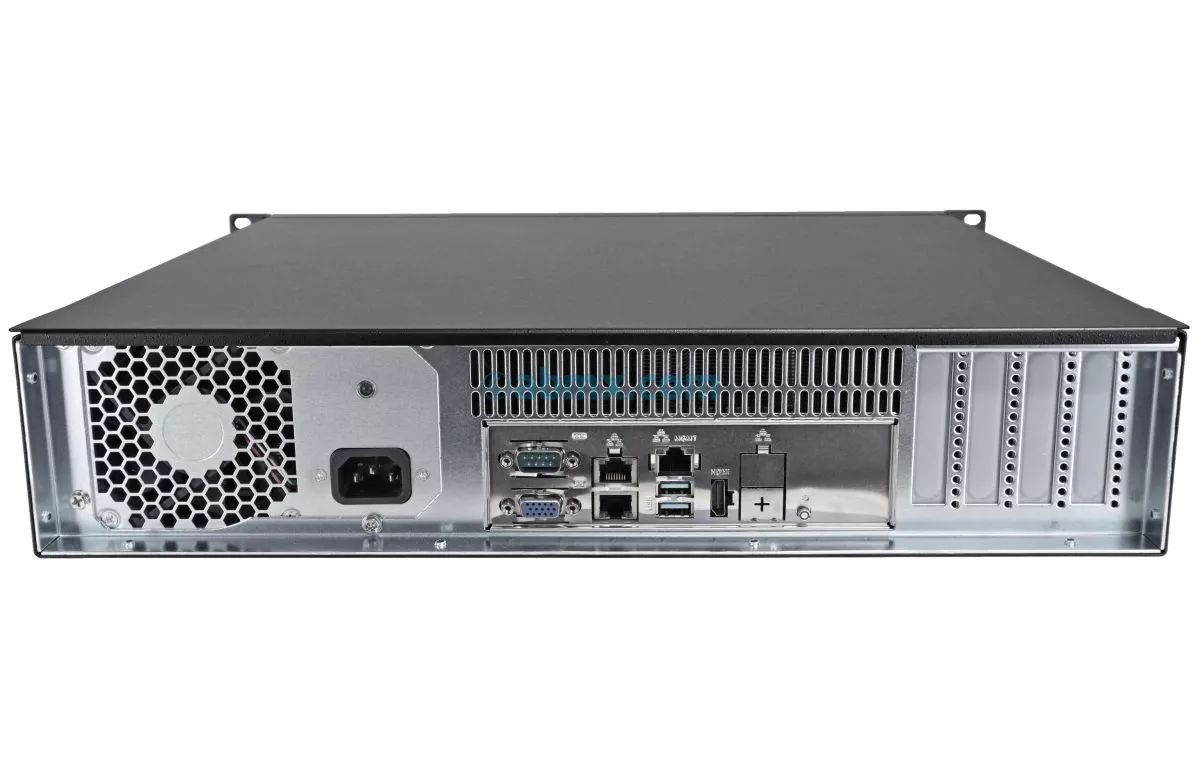

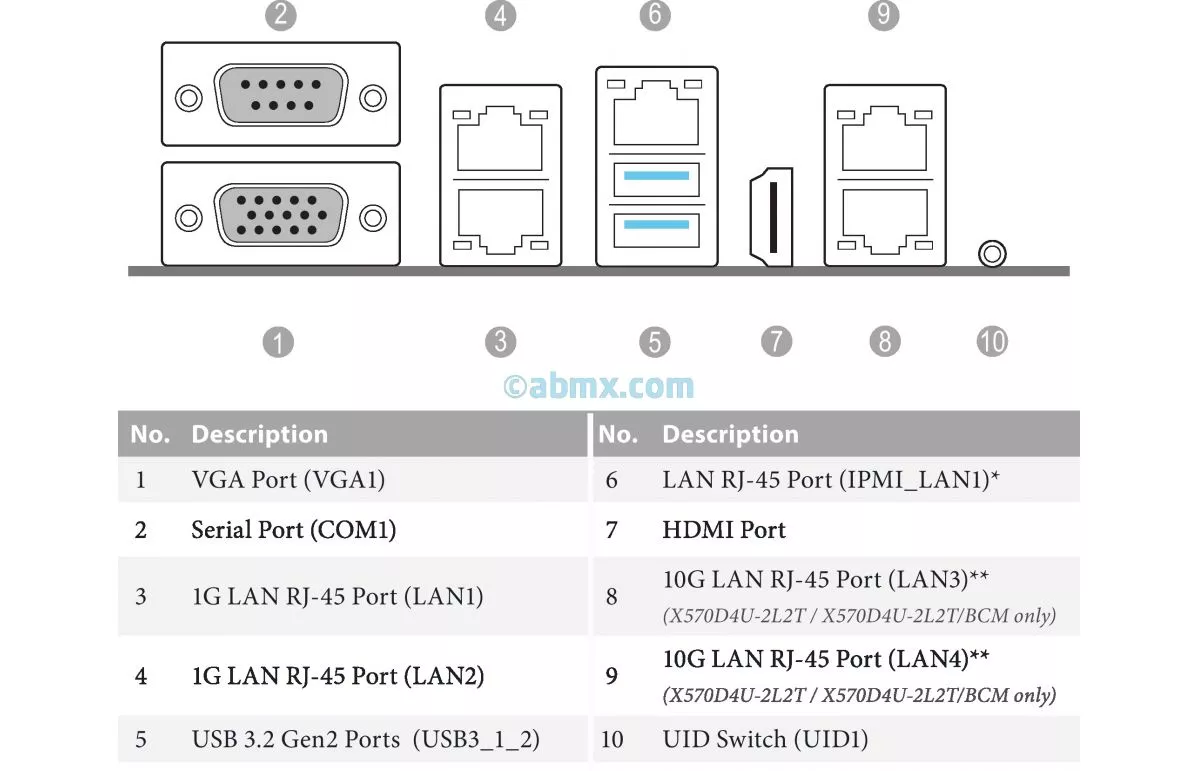

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x Dedicated LAN (IPMI)
  • 2 x USB 3.2 Gen.2 ports 2 (Type-A)
  • 1 x VGA port
  • 1 x HDMI port
  • 1 x Serial Port
  • 1 x TPM Header
  • 1 x SATA DOM port
Video
  • ASPEED AST2500: 1 DB15, 1 (15-pin) header
  • 1 HDMI (HDMI functionality requires AMD Ryzen Processors with Radeon Graphics)

Network
  • Dual Intel® i210 Gigabit LAN (RJ45)
Hardware Monitor
  • Operating Temperature Range 10°C - 35°C (50°F - 95°F)
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • 1 x PCI-e 4.0 (x16) slot (LOW-PROFILE)
  • 1 x PCI-e 4.0 (x8) slot (LOW-PROFILE)
  • 1 x PCI-e 4.0 (x1) slot (LOW-PROFILE)
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • High-efficiency AC power supply
  • Tested to comply with FCC Standards
  • Certifications: TUV, CB, CE, CCC
  • 24V or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • Slim-line Optical Drive (OPTIONAL)
Rack Support
  • Rackmount rails kit (OPTIONAL)
OS Compatibility
  • Please call out tech support at 714-258-2269 for details
Warranty
  • 1 year Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
Motherboard X570D4U OverallChipset
AMD X570		LAN
Intel i210-AT		LAN
Realtek RTL8211E		Video
Aspeed AST2500
Fedora Server 35
Fedora Workstation 35
Windows 11

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.

Motherboard X570D4U-2L2T

DISCLAIMER: Despite our best efforts, compatibility cannot be guaranteed. This is due to the ever-changing nature of technology and software, which is beyond our control. This data is simply to warn about known compatibility issues our team has revealed so far. If you discover issues or solutions, please let us know so it can be shared with others.
