2U Mini Server - AMD EPYC

Model: 218AS2L

The 218AS2L short depth 2U server is a good choice when more expansion cards are required than what a 1U server can provide. Featuring AMD EPYC processors with up to 64 cores / 128 threads, in addition to the 3 full-height PCIe slots and 5.25” bay, the 18” depth allows this model to support up to three 3.5” hard drives as well as standard or redundant power supplies. The flexibility and performance of this model is hard to beat!

Key Features
  • Short Depth
  • Quiet / Low-Noise (optional)
  • Front USB
  • Redundant Power (optional)
  • 24v DC Power (optional)
  • 48v DC Power (optional)
  • Nvidia Tesla GPU
  • 5.25" Drive Bay
  • 18-Inch deep
Recommended Uses

8 - 64 Cores
AMD EPYC

8 - 512 GB

3 x 3.5 Fixed

2 x 1GbE

2 x PCI-e

Chassis

Motherboard

Processor

Memory

Storage

Samsung 980
Samsung 980 PRO
Samsung 980
Samsung 990 EVO
Samsung 990 PRO
WD_BLACK™ SN850X
Samsung 870 EVO
Solidigm-SKHynix D3-S4520 (formerly Intel)
Solidigm-SKHynix D3-S4620 (formerly Intel)
Western Digital® Enterprise-class

Storage 2

Storage 3

Exposed 5.25'' Drive Bay

Riser Card

PCIe Expansion Slot

Video Adapter

Trusted Platform Module (TPM) -- Required for Windows

Power Supply

Special Order

Front USB/COM port

Low-Noise Cooling Fans

Rack Mounting Rail Kit

OS Compatibility

Operating System

Microsoft®
Special Order

** Windows Installation (w/ Microsoft Windows purchase only)

Warranty

Special Configuration Requirements (RAID level, OS, etc.)

Chassis

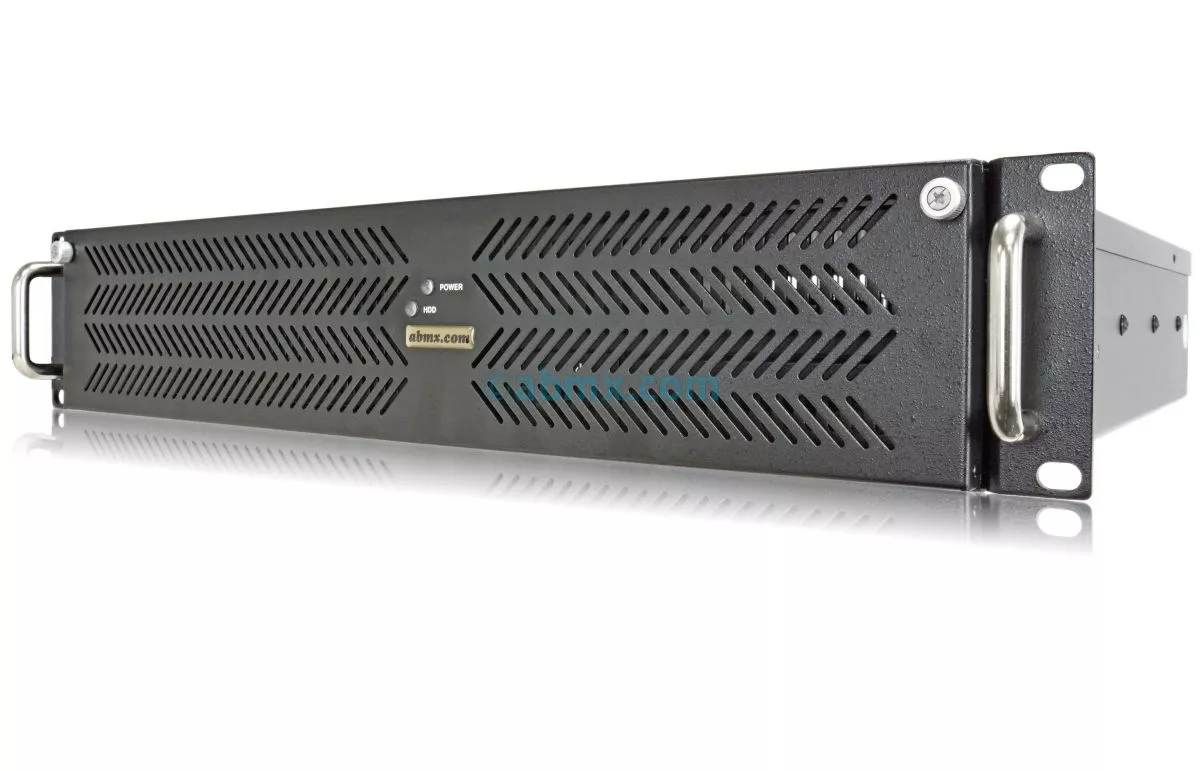

  • 2U Short-depth Rack Mountable Enclosure
  • Rack Unit Height: 3.5-inch

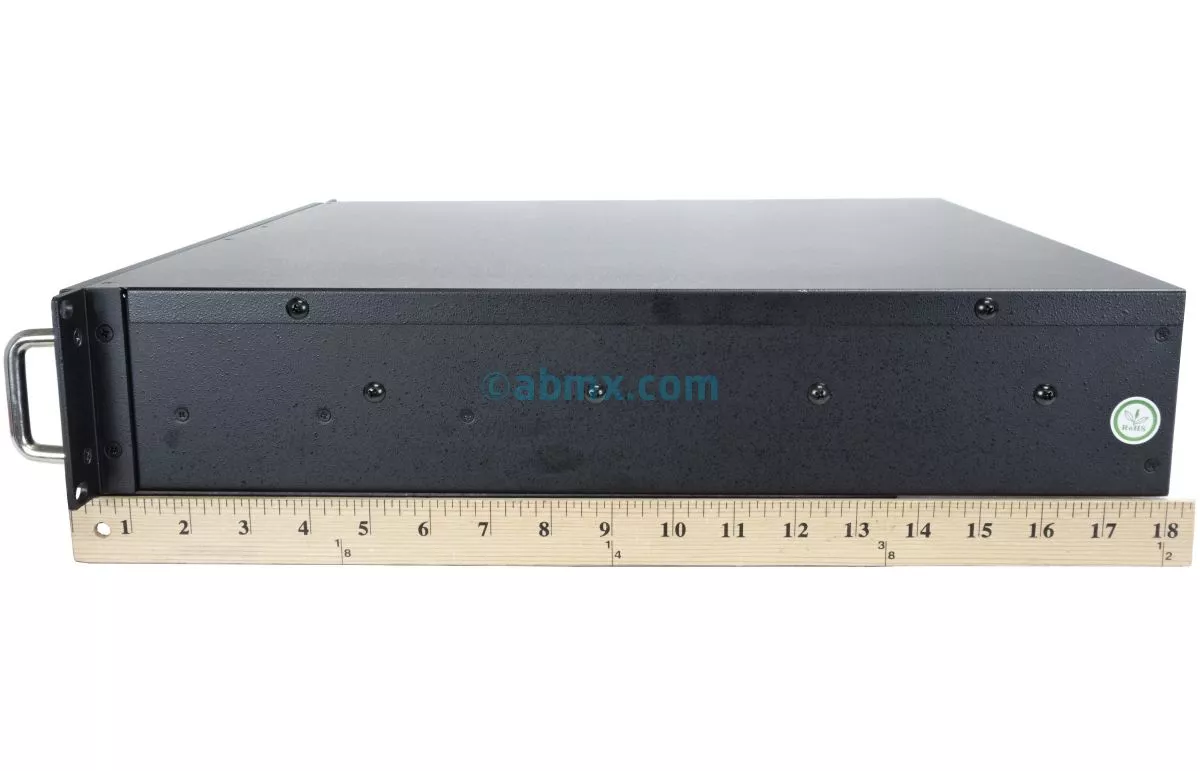

  • Dimensions: 17.7" (D) x 19" (W) x 3.5" (H)
  • Metal thickness: 1.2 mm

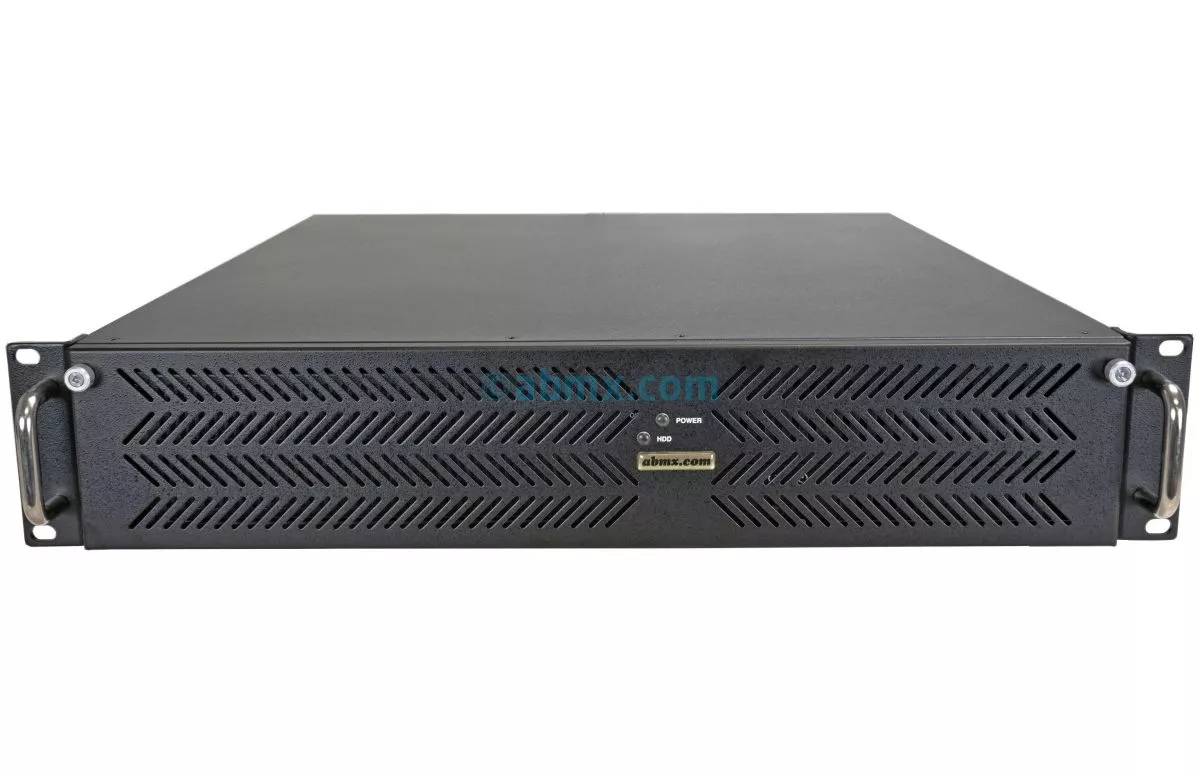

  • Front Single Door with 2 Thumbscrews
  • Air Filter Inside Front Panel (Washable)
  • Front USB: 2 x ports
Processor/Chipset
  • Single Socket SP3
  • Supports Single AMD EPYC™ 7003/7002-series Processor
  • Chipset: System on Chip
BIOS
  • AMI 256Mb SPI Flash EEPROM
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1
Memory
  • 8 x 288-pin DDR4 DIMM sockets
  • Supports up to 2TB
  • 3200MHz ECC Registered DDR4 DRAM
  • 8-channel memory bus
Storage / IPMI
  • 8 x SATA3 (6 Gbps) ports
  • 8 x SATA3 or 2 x NVMe via single SlimSAS x8 (SATA/NVMe Hybrid)
  • Chassis supports up to three drives
  • IPMI 2.0 support (ASPEED AST2500 BMC)
  • 2 x M.2 NVMe (2280, 22110)
Drive Bays
  • HD1-3 Bay: fixed SATA/ SSD Drive
  • Up to 66 Terabyte of storage can be supported
  • 1 x 5.25-inch Drive Bay

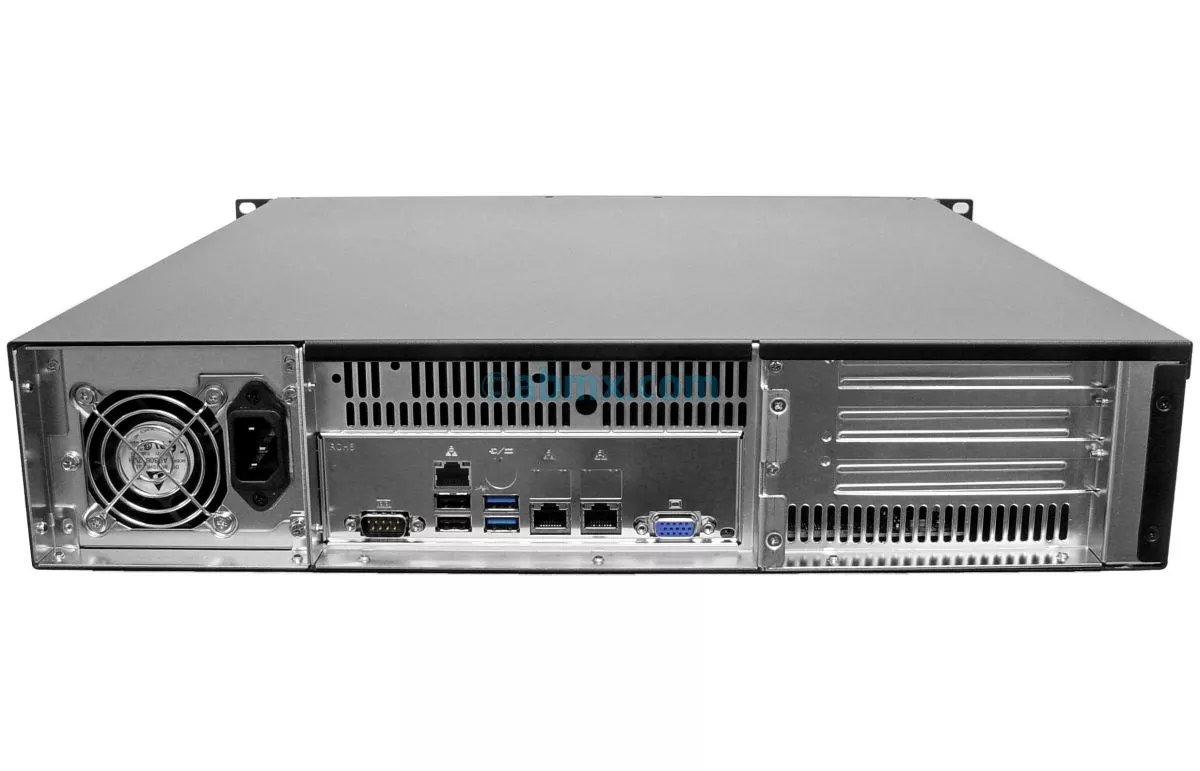

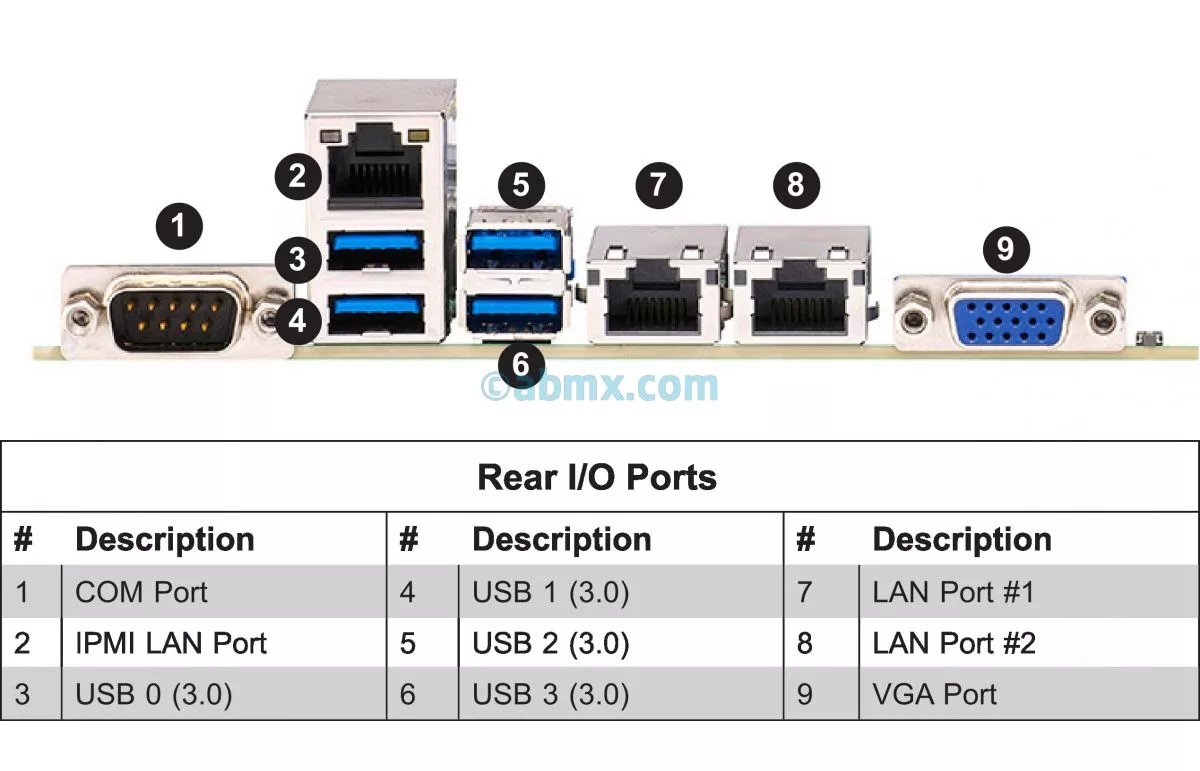

I/O ports
  • 2 x RJ45 Gigabit Ethernet LAN ports
  • 1 x RJ45 Dedicated IPMI LAN port
  • 6 x USB 3.0 ports (4 x rear + 2 x via header)
  • 1 x VGA port
  • 1 x COM port (rear)
  • 2 x SATA DOM power connectors
  • 1 x TPM 2.0 header
Video
  • ASPEED AST2500 BMC on-board

Network
  • Dual Gigabit Ethernet LAN Controller (Broadcom BCM5720)
  • 1 x Realtek RTL8211F PHY (dedicated IPMI)
Hardware Monitor
  • CPU/System Fan Speed
  • CPU Temperature
  • System Voltage Vcore,+3.3V,+5V,+12V
Expansion
  • Via Riser Card:
  • 1 x PCI-e (x16) slot
  • 1 x PCI-e (x8) slot
Power Consumption/Acoustic noise emission
  • Dependent upon hardware configuration.
  • Please contact our tech support at 714-258-2269 for further details.
Power Supply
  • HE Power Supply
  • Tested to comply with FCC Standards
  • Certifications: UL, CUL, CB, CCC, CE, TUV
  • Redundant or 48V DC Power Supply is OPTIONAL
CD-ROM /DVD-ROM
  • 5.25-inch Optical Drive OPTIONAL
Rack Support
  • 2U rackmount rails kit is OPTIONAL
OS Compatibility
  • Please call our tech support at 714-258-2269 for details
Warranty
  • 3 years Parts* and Labor Standard
  • * Batteries are subject to DOA only and are NOT subject for replacement or return
  • Extended Warranties Available
